One Gallon Bottle Filling Machine

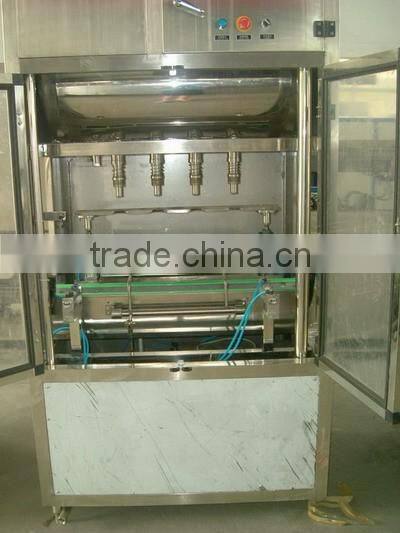

One Gallon Bottle Filling Machine photo-1
US$ 2,000 - 2,200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Barrel, Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Barrel, Bottles
Packaging Material Glass, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 1.2Kw
Place of Origin Jiangsu, China
Brand Name Mars
Model Number CYG-4
Dimension(L*W*H) 3000*600*1500mm
Weight 500kg
Certification ISO CE
After-sales Service Provided Engineers available to service machinery overseas

One Gallon bottle filling machine



Machine Features:

1.Stable and reliable functions, security and alarming functions

2.Filling volume precisely

3.Stepless speed control, can adjust filling time

4.All the components are made by famous company in the world

5.Equipped with noise reduction device, comfortable for operators.

6.Pneumatic system, superor quality

7.Widely applications: filling one gallon water into bottles.

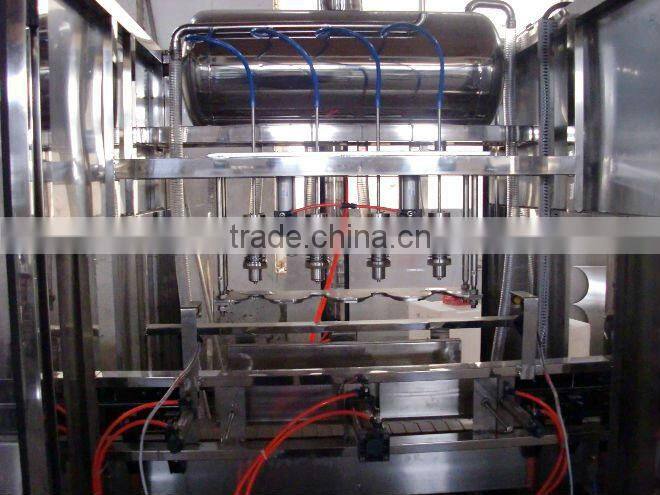

One Gallon Bottle Filling Machine



Applications for Gallon Bottle Filling Machine :

1. Filling materials:Liquid e.g. water, juice, Yogurt, etc

2. Container: various bottles only with the same diameter of the bottleneck



Normally functions for Gallon Bottle Filling Machine :

1) manul feed bottles   2)automatic deliver bottles

4) filling   5) sorting caps  6) locking caps

(Functions can be added or decreased according to your requirements)

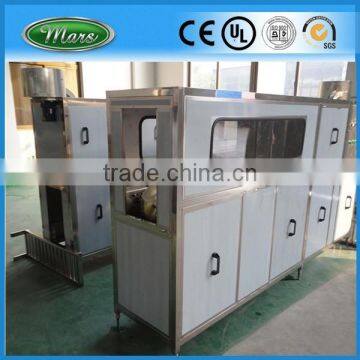

        One Gallon Bottle Filling Machine



Working processing for Gallon Bottle Filling Machine :

manul bottle feeding→filing→locking caps→output



Technical Parameters for Gallon Bottle Filling Machine

Model

Voltage

Power

Air pressure

Air consumption

Productive capacity

Dimension

Weight

QGF

380V/50Hz

1.2Kw/h

0.65-0.85MPa

0.7m3/min

2000 B/H

3000*600*1500

500Kg


Configuration:

1. Cylinder: Airtac

2. PLC:Omron/Mitsubishi/Simens (optional)

3. Touchscreen: Omron/Mitsubishi/Simens (optional)

4. Relay: Omron

5. Tempt. Controller: Yatai



Optional Device:

1. Bottle rinsing device: can wash cups automatically before filling

2. Conveyor belt: Can deliever the cup to the appinted place automatically

3. Labeling machine

4. Ink-jet Printer: print the dates clearly

One Gallon Bottle Filling MachineOne Gallon Bottle Filling MachineOne Gallon Bottle Filling MachineOne Gallon Bottle Filling MachineOne Gallon Bottle Filling MachineOne Gallon Bottle Filling Machine
