Dynamic Multifunctional Extracting Tank

Dynamic Multifunctional Extracting Tank thumbnail-1
Dynamic Multifunctional Extracting Tank thumbnail-2
Dynamic Multifunctional Extracting Tank thumbnail-3
Dynamic Multifunctional Extracting Tank thumbnail-4
Dynamic Multifunctional Extracting Tank thumbnail-5
Dynamic Multifunctional Extracting Tank thumbnail-6
Dynamic Multifunctional Extracting Tank photo-1
Dynamic Multifunctional Extracting Tank photo-2
Dynamic Multifunctional Extracting Tank photo-3
Dynamic Multifunctional Extracting Tank photo-4
Dynamic Multifunctional Extracting Tank photo-5
Dynamic Multifunctional Extracting Tank photo-6
US$ 2,000 - 13,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Model Number:
JK03RD
Type:
Stripper
Contact Supplier Request Quote Chat Now
Hangzhou Huihe Machine Facture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Model Number JK03RD
Type Stripper
Voltage 220V/380V
Power(W) Made to order
Weight 100-400KG
Dimension(L*W*H) 900*460*740mm
Certification CE Certificate
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas



Dynamic Multifunctional Extracting Tank





Structure of Dynamic Multifunctional Extracting Tank
    The tank is equipped with CIP cleaning automatic rotary spray washing ball head, thermometer hole, explosion-proof lamp, mirror, quick open feeding mouth, etc., to ensure the operation is simple, in line with the GMP standard.
    Equipment within the cylinder is made of imported SUS304, jacketed with fully enclosed aluminum silicate blanket insulation, outer barrel considerate thin plate SUS304 inferior smooth finish.
    The matching facilities includes: defoaming machine, congealing machine, cooling machine, oil-water separating machine, medicine pumps, the console and other accessories.
Technical Parameters of Extracting Tank
Style No
TQ-1000
TQ-2000
TQ-3000
TQ-6000
TQ-8000
TQ-10000
Volume
1200
2300
3200
6300
8500
11000
Tank design pressure(MPA)
0.09
Jacketed layer design pressure(MPA)
0.3
Feed orifices diameters(mm)
400
400
400
500
500
500
Heating area M2
3
4.7
6.8
10
12
15
Condensation area M2
4
5.4
8
10
15
18
Cooling area M2
1
1
1.5
2.2
2.2
2.2
Filter area M2
0.25
0.25
0.25
0.3
0.3
0.36
Slag discharge door diameters M2
800
800
800
1000
1000
1000

Gas consumption(kg/h)
285
346
570
718
903
1140
Equipment weight(kg)
1800
2050
2400
3025
4030
6500
Heating steam orifices
DN-50
DN-50
DN-60
DN-60
DN-80
DN-80
Secondary orifices
DN-80
DN-80
DN-100
DN-100
DN-100
DN-100
Cooling water orifices
DN-50
DN-50
DN-60
DN-60
DN-70
DN-70
Motor power(KW)
2.2
4
5.5
5.5
7.5
7.5
Stirring speed(rpm)
21
21
32
32
32
32

Notes:
1,traditional Chinese medicine extraction tank need to clear the material in the model selection of the design characteristics, operating conditions and scope of form a complete set of components that can call in detail.

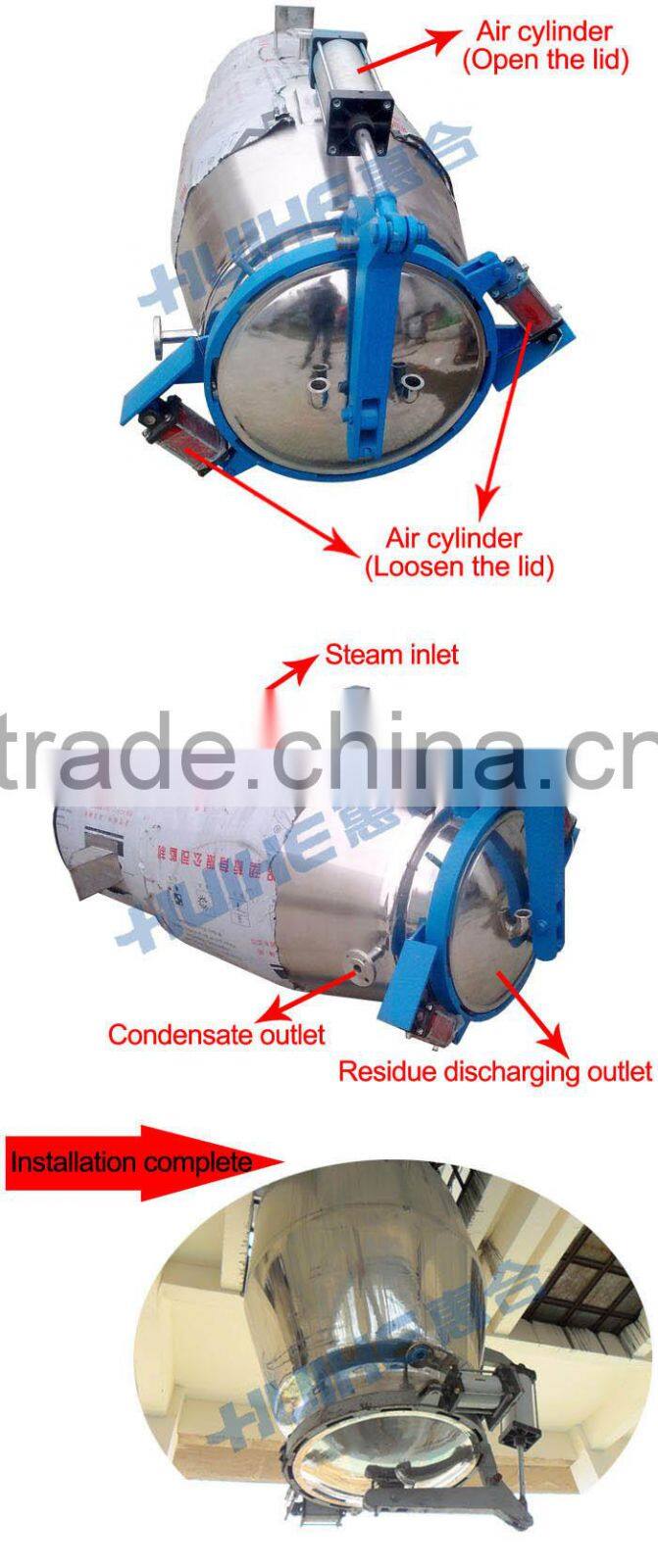

Dynamic Multifunctional Extracting Tank Finished Picture



Dynamic Multifunctional Extracting Tank
