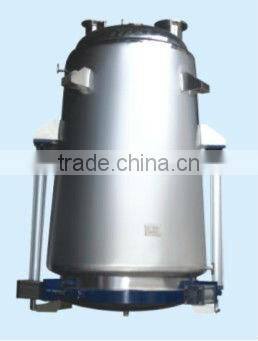

Stainless steel TQ-D Multifunctional Extracting Tank
1. sus304
2. 380V
3. extracting usage

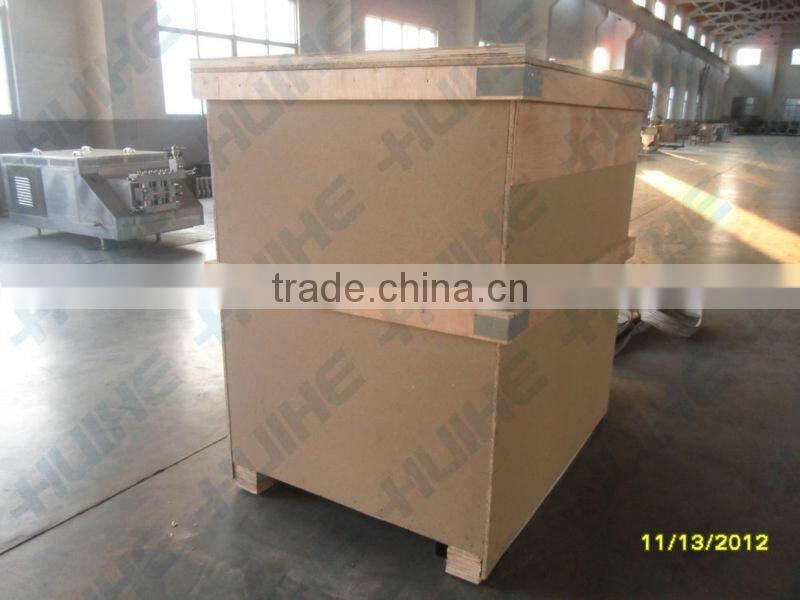

4. wooden package
TQ-D multifunctional extracting tank is a new model extracting equipment independently and successfully researched and developed by our company through referring to the advanced design conception from abroad according to the modernization requirements of traditional Chinese medicine equipment in China. Upside-down taper extracting tank is very beneficial to the circulative extraction of the solvent. When the solvent is carried out circulative extraction from downward to upward, through the water dividing board and sieve specially designed at the tank bottom, the extracted solvent can make upward movement evenly from the tank bottom. As the tank volume gradually decreases from the tank bottom to the tank top, the short circuit during the flow of solvent can be avoided. Upside-down taper extracting tank is the ideal upgraded equipment for the technology requiring the realization of dynamic extraction processing.
Model | TQ-D-0.5 | TQ-D-1.0 | TQ-D-2.0 | TQ-D-3.0 | TQ-D-6.0 | TQ-D-8.0 |
Volume (L) | 750 | 1200 | 2300 | 3400 | 6400 | 8500 |
Designed pressure of tank (Mpa) | 0.09 | |||||
Designed pressure of jacket (Mpa) | 0.09~0.3 | |||||
Compressed air (Mpa) | 0.6~0.7 | |||||
Diameter of charging port (mm) | 350 | 400 | 400 | 400 | 450 | 500 |
Diameter of slag port(mm) | 800 | 1000 | 1200 | 1500 | 1700 | 1900 |
Heating area | 2.0 | 3.2 | 5.3 | 6.8 | 8.5 | 10.5 |
Condensation area | 3 | 5 | 6 | 8 | 10 | 12 |
Cooling area | 0.5 | 1 | 1 | 1 | 2 | 2 |
Energy consumption(Kg/h) | 145 | 195 | 258 | 300 | 552 | 728 |
