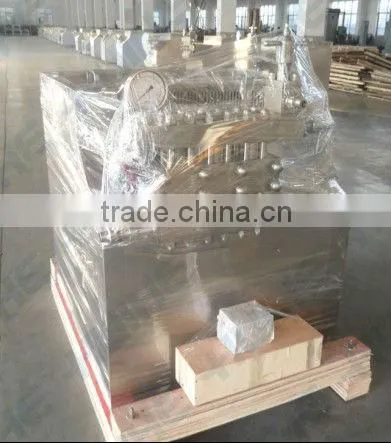

Help Center200L/H High Pressure Homogenizer Equipment
Related Products
-
500L/H High Pressure Homogenizer (Dairy Equipment)US$ 5,000 - 29,999MOQ: 1 Piece -
Malt Powder High Pressure HomogenizerUS$ 1,000 - 29,999MOQ: 1 Set
-
Super Lab HomogenizerUS$ 2,200 - 45,000MOQ: 1 Piece
-
SUS304/316L Ice Cream HomogenizerUS$ 1,000 - 29,999MOQ: 1 Set
-
Ice Cream/milk/juice Homogenizer MachineUS$ 1,000 - 29,999MOQ: 1 Piece
The higher the pressure the finer the material the more uniform particle size, 30MPA the following models, mainly for liquid - liquid emulsification. Pressure of 30MPA above, on the liquid - solid dispersion of liquid into play when the pressure most of the material up to 60MPA reach 2μm particle size less than when the material reaches 80MPA more obvious when the role is mainly used for ultrafine particles broken Materials to achieve the following general 1μm. As to 100MPA above, can be produced more subtle particles, some of the material particles after repeated high pressure homogenization, 0.1-0.5μm can be prepared the following nano-grain materials.
Driving assembly,House is made of grey cast iron HT200, and crank shaft, connecting rod, and gears are made of ductile cast iron.
Plunger:the 4th generation special alloy steel(PH-type).
Check valve:the 4th generation special alloy steel (GrMoFr),abrade-resisting and impact-resisting.
Pump block:321 stainless steel.
Plunger sealing:X4310 and PP spacer with heat-proof reaching 150°C.
Homogenizing valve:the 3rd special stainless alloy.
All the above-mentioned material are according with sanitary rules and suitable for CIP cleaning.
Send Inquiry to This Supplier
