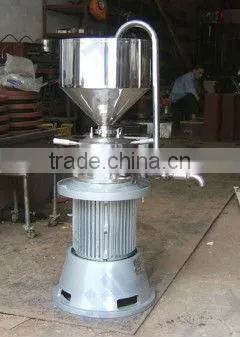

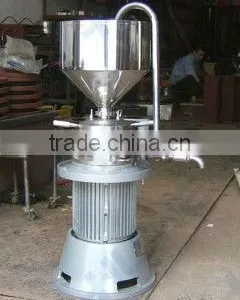

pigment coating Ferrule Type Stainless steel SUS304/316L Collold Mill Machine
- 10000 Unit / Units per Month
- Ningbo or Shanghai Port
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Grinder | Product Type: | Other, food |
Place of Origin: | Zhejiang, China | Brand Name: | HUIHE | Model Number: | JML-100 |
Voltage: | Made to Order | Certification: | CE | Warranty: | 12months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Colloid mill can be divided into stainless steel colloid mill and half-formed stainless steel colloid mill. The basic principles is when fluid and semi-fluid material go through the fixed gear and moved gear which is high-speed relatively linked, can be influenced by strong shear, friction and high-frequency vibration, and be effectively crushed, emulsified, homogenized. So that precision products can be made
Classification
1. According to Structure: there are Vertical Colloid Mill and Split Colloid Mill
2. According to Angle of Appearance: there are Ordinary Colloid Mill and Sanitary Colloid Mill
Structure
The main structures of colloid mill are grinding parts, the base transmission department and dedicated motor. The dynamic and still millstones in the core part and mechanical seal parts are the most key parts. Therefore, according to the different natures of the materials, the selection must be different. But the materials are made of stainless steel or specific materials. The motor need to be designed specifically, depend different model. The motor flange should install retaining plate to prevent leakage.
Usages
1. Food Industry: dairy products, chocolate, soy sauce, jam, peanut butter, butter and beverage
2. Chemical Industry: paints, lubricating oil, spices, dyes, emulsified asphalt, emulsified rubber, catalyst, paint coating etc.
3. Pharmaceutical Industry: cod liver oil, athlete cream, bee honey, pollen etc.
4. Daily Chemical Industry: shoe polish, toothpaste, cosmetics, balsam, soap, and detergent, etc
5. Other Industry: building industry, paper industry, plastic industry, battery industry, etc
Model | JML-50 | JML-80 | JML- 100 | JML- 120 | JMF- 80 | JMF- 100 | JMF-120 | JMF-140 | JMF-180 | ||
Emulsification fineness um (single cycle or multi-cycle) | 5~40 | 3~40 | 2~40 | 2~40 | 3~40 | 2~40 | 2~40 | 2~40 | 2~40 | ||
Adjustment range mm | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | ||
Output t/h Change According to Materials | 0.01-0.2 | 0.3-1 | 0.5-2 | 0.7-3 | 0.3-1 | 0.5-2 | 0.7-3 | 1-4 | 2-5 | ||
Motor | Power( kw) | 1.1 | 3 | 5.5 | 7.5 | 4 | 5.5 | 7.5 | 11 | 15 | |
Pressure(v) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | ||
Stirring Speed (r/min) | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | ||
Grinding diameter( mm) | 50 | 80 | 100 | 120 | 80 | 100 | 120 | 140 | 180 | ||
Discharge Port Diameter | 15 | 25 | 32 | 40 | 25 | 32 | 40 | 40 | 65 | ||
Cooling Water Pipe | 1/8" | 1/4" | 1/4" | 1/4" | 1/4" | 1/4" | 1/4" | 1/4" | 1/4" | ||
Dimensions | Length (mm) | 420 | 520 | 560 | 560 | 640 | 750 | 750 | 820 | 980 | |
Width (mm) | 280 | 400 | 420 | 420 | 550 | 620 | 620 | 700 | 800 | ||
Height (mm) | 760 | 900 | 950 | 950 | 1030 | 1080 | 1080 | 1250 | 1550 | ||
Weight (kg) | 45 | 84 | 113 | 135 | 210 | 275 | 295 | 325 | 450 | ||
Notes
1. The parameters in the chart are standard configuration. Any specific requirements, please let us know.
2. JML-50 is experimental colloid mill, also can be changed to 220V voltage.
3. The process parameters that need provided when choosing the Colloid Mill: the nature of material, working pressure, temperature, specific requirements, etc.
