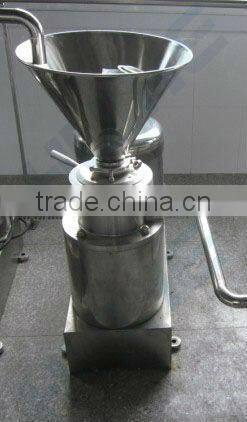

JM series of colloid grinding machines vertical type
- 1000 Unit / Units per Month
- Ningbo or Shnghai Port
- T/T L/C D/P D/A Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | HH | Model Number: | HH-02-12 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Colloid mill can be divided into stainless steel colloid mill and half-formed stainless steel colloid mill. The basic principles is when fluid and semi-fluid material go through the fixed gear and moved gear which is high-speed relatively linked, can be influenced by strong shear, friction and high-frequency vibration, and be effectively crushed, emulsified, homogenized. So that precision products can be made
Overview of Colloid Mill
Colloid mill can be divided into stainless steel colloid mill and half-formed stainless steel colloid mill. The basic principles is when fluid and semi-fluid material go through the fixed gear and moved gear which is high-speed relatively linked, can be influenced by strong shear, friction and high-frequency vibration, and be effectively crushed, emulsified, homogenized. So that precision products can be made.
Classification of Colloid Mill
Structure of Colloid Mill
The main structures of colloid mill are grinding parts, the base transmission department and dedicated motor. The dynamic and still millstones in the core part and mechanical seal parts are the most key parts. Therefore, according to the different natures of the materials, the selection must be different. But the materials are made of stainless steel or specific materials. The motor need to be designed specifically, depend different model. The motor flange should install retaining plate to prevent leakage.
Usages of Colloid Mill
Characteristics of Colloid Mill
Model | JML-50 | JML-80 | JML-100 | JML-120 | JMF-80 | JMF-100 | JMF-120 | JMF-140 | JMF-180 | ||
Emulsification fineness um (single cycle or multi-cycle) | 5~40 | 3~40 | 2~40 | 2~40 | 3~40 | 2~40 | 2~40 | 2~40 | 2~40 | ||
Adjustment range mm | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | ||
Output t/h change according to materials | 0.01-0.2 | 0.3-1 | 0.5-2 | 0.7-3 | 0.3-1 | 0.5-2 | 0.7-3 | 1-4 | 2-5 | ||
Motor | Power kw | 1.1 | 3 | 5.5 | 7.5 | 4 | 5.5 | 7.5 | 11 | 15 | |
Pressurev | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | ||
Stirring speed r/min | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | 2880 | ||
Grinding diameter mm | 50 | 80 | 100 | 120 | 80 | 100 | 120 | 140 | 180 | ||
Discharge port diameter | 15 | 25 | 32 | 40 | 25 | 32 | 40 | 40 | 65 | ||
Cooling water pipe | 1/8 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | ||
Dimensions | Length mm | 420 | 520 | 560 | 560 | 640 | 750 | 750 | 820 | 980 | |
Width mm | 280 | 400 | 420 | 420 | 550 | 620 | 620 | 700 | 800 | ||
Height mm | 760 | 900 | 950 | 950 | 1030 | 1080 | 1080 | 1250 | 1550 | ||
Weight kg | 45 | 84 | 113 | 135 | 210 | 275 | 295 | 325 | 450 |
