Home > Products > Small wheel loader > Chinese Front End Loader With 4 Cylinder Engine

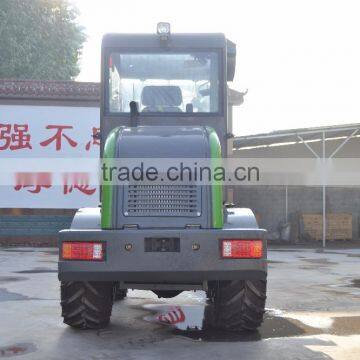

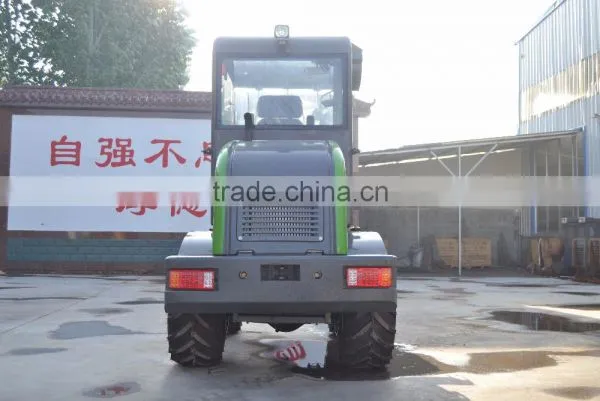

Chinese Front End Loader With 4 Cylinder Engine
US$ 9,800 - 9,800
/ Set
1 Set(Min. Order)
- QINGDAO
- T/T
You May Like
-
Stone Bucket Loader by Professional Chinese Manufacturer
-
ce Certification Small Log Loader With High Quality
-
1800kg Rated Load Grapple Log Loader With Quick Hitch
-
Screening Bucket Mini Log Loader With Some Free Spare Parts
-
Mixing Bucket China Loader by Professional Manufacturer
-
Grain Bucket Mini Articulated Loader With ce Certification
Product Details
| Condition | New | Brand Name | QZCATER | |
| Model Number | ZL918 | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 5870*2050*2720mm | Rated Load | 1800kg | |
| Certification | CE ISO | Warranty | 1 Year | |
| After-sales Service Provided | No overseas service provided |
Product Description
SPECIFICATION
| Rated capacity | 1.03m³ |
| Rated weight | 1800kg |
| Transportation | 5900×2050×2710mm |
| Wheel base | 2340mm |
| Tread | 1550mm |
| Max. breakout force | 32KN |
| Max. dumping height | 2900mm |
| Dump distance | ≥930mm |
| Total time | 9s |
| Operating weight | 4000kg |
Engine
| Model | ZHBG41 |
| Pattern | Inline, water-cooled, 4-stroke, direct injection |
| Rated power/Speed | 47 KW |
| Max. torque | 270 N.m |
Torque converter and transmission system
| Model of torque converter | YJ265 |
| Pattern | 3-element single stage |
| Transmission type | Full-power shift, countershaft type |
| Number of gear | 2 forward, 2 reverse |
| Max. travel speed | 24km/h |
| Axle | WANGDA |
| Main reducer pattern | Arc taper gear, model ration of first grade |
| Pattern of wheelside moderation | Planet gear moderation of single |
Tire
| Tire size | 20,5/70-16 |
Steering system
| Pattern | Articulated and hydraulic steering |
| Min. turning radius(outside of bucket) | 3500mm |
| Max. turning angle | 35°±1 |
Implement hydraulic system
| Implement pump | CBG1045 |
| Distribution device model | DF15.2C |
Brake system
| Brake type | Air assisted oil disc on four wheel |
| Parking brake type | Soft axle control, outside bunch drum type |
