New Condition and Engineers available to service machinery overseas After-sales Service Provided 5ton front loader

FOB Price

USD $40,800 - $40,800 / Set

1 Set(Min.Order)

Supply Ability 15 Set / Sets per Month
Port Qingdao port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Brand Name:	QZCATER	Model Number:	ZL956
Place of Origin:	Shandong, China	Type:	Front Loader	Moving Type:	Wheel Loader
Dimension(Long * Breadth * High):	793430603483mm	Rated Load:	5000kg	Certification:	CE ISO
Warranty:	1 Year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Specifications

Rated capacity	3m³
Rated weight	5000Kg
Operating weight	17000Kg
Max. breakout force	172.3KN
Total time	11s
Max. dump height	3098mm
Dump distance	1198mm
Wheel base	3200mm
Tread	2250mm
Transportation	793430603483mm

Engine

Model of engine	WEICHAI STEYR WD10G220E22 or CUMMINS 6CTA8.3-C215(TIGER1) or 6CTAA8.3-C215(TIGER2)
Pattern	Turbocharger, vertical, water-cooled, 4-stroke, direct injection
Rated power	162KW/160KW
Max. torque	860N.m

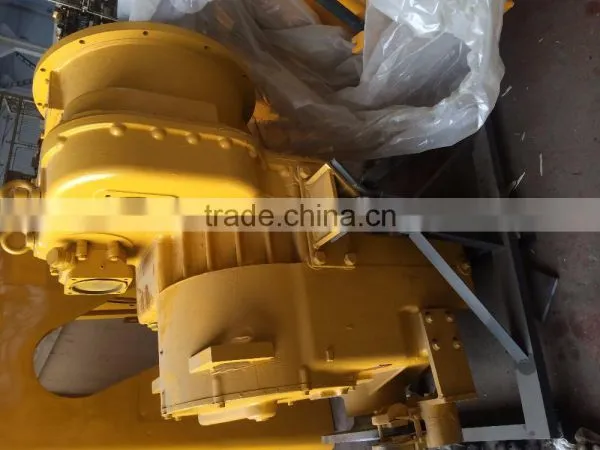

Torque converter and transmission system

Model of torque device	Torque Converter and Gearbox Combination

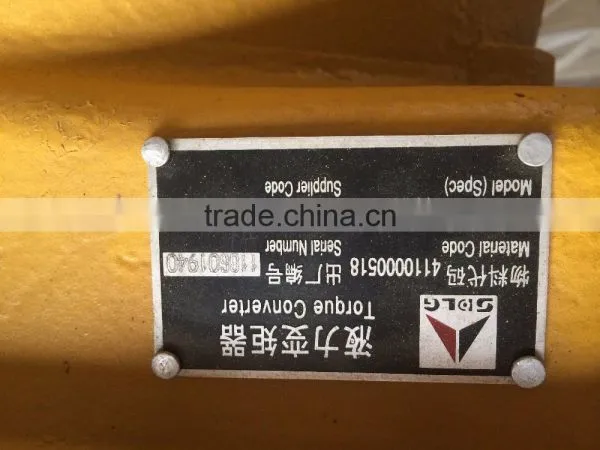

Model of torque converter	YJSW315-6J01
Pattern	4-element,single stage
Transmission type	Full-power shift, countershaft type
Number of gear	2 forward,1 reverse
Max. travel speed	40km/h
Axle	XUZHOU
Main reducer type	Arc taper gear, model ration of first grade
Pattern of wheel side moderation	Single stage planetary

Tire

Tire size

23.5-25

Steering system

Pattern	Full hydraulic steering system
Min. turning radius(outside of bucket)	7268mm
Max. turning angle	35°±1

Implement hydraulic system

Implement pump	CBGJ2080
Displacement	250L/min
System working pressure	20.3MPa
Distribution device model	DF32
Pilot valve model	DJS

Brake system

Brake system	Air assisted oil disc on four wheel
Parking brake	Air cutting control inner expand hoof
