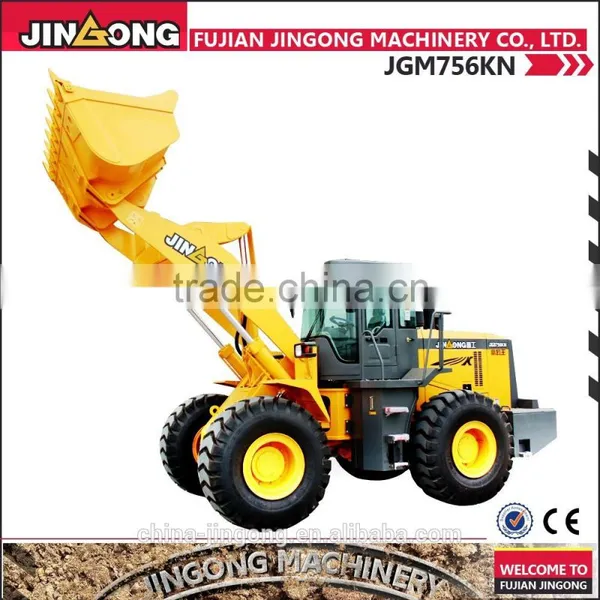

JGM 756 wheel loader
Main specification
| Operating weight | 16500kg |
| Standard bucket capacity | 2.7m³ |
| Rated load | 5000kg |
| Max. climbing angle | 30 degree |
| Standard dumping height | 3100mm |
| Max. dumping height (when equipped with high dumping arm) | 3500mm |
| Dumping reach | 1210mm |
| Overall dimension | 7657*2990*3410mm |
.
Engine
| Model | Weichai WD10G220E21 |
| Type | 4-stroke, inline diesel engine, turbo charged direct-injection |
| Qty of cylinders-bore/stroke | 6-126x130mm |
| Rated power | 162KW |
| Rated speed | 2200r/min |
Transmission system
| Torque convertor | Single-phase 4-elements, Twin-turbine hydraulic torque converter |
| Transmission | Planetary hydraulic shift |
Tyre
| Tyre type | 23.5-25 |
| Tyre pressure | 0.27-0.32Mpa |
Features
1.A frame with a medium wheelbase is adopted to provide high stability, mobility and flexibility and high adaptation to various types of working conditions;
2.Working mechanism with a single rocker, optimized design of articulated point, high lifting force and breakout force, short working cycle;
3.The front frame has a four-plate structure and the rear frame has a box girder structure with a high structural strength;
4.The bucket is capable of high-level automatic leveling to reduce the labor intensity and increase the working efficiency of the operator;
5.Key articulated points of the working mechanism have a dustproof structure to prolong the working life of the pin shaft
Optional equipment:
1. Diesel engine:
Shanghai C6121ZG diesel engine,162kw / 2200rpm ; Shanghai C6114ZGdiesel engine,155kw/2200rpm;
Shanghai D9-220 diesel engine, 160kw/ 2200rpm ; Cummins 6CTA8.3 diesel engine, 160kw/2200rpm
2. Axle: Xuzhou Meritor axle
3. Loose material bucket, rock bucket, side-dump bucket, log fork and other various implements
4. Optimized and efficient working devices with the automatic leveling and limit lifting function
5.Electronic weighing
6.BEKA Concentrated lubrication
7. Air conditioning system-cool wind type, warm wind type
