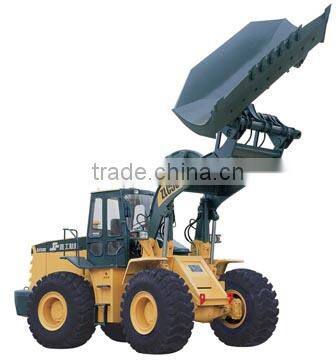

JGM755C Wheel Loader with side dump bucket
Very suitable for narrow place working, such as tunnel ,cave,and mineral exploiting sites.
Specification | ||
Bucket type | Side dumping bucket | |
Rated loading capacity | 4.2 ton | |
Bucket capacity | 2.2 m3 | |
Overall width | 2990 mm | |
Rear dumping height (the bucket is lifted to the top and the dumping angle is 45°) | 3140 mm | |
Rear dumping distance (the bucket is lifted to the top and the dumping angle is 45°) | 1315 mm | |
Max. side dumping height | 3878mm | |
Digging depth (bucket forward 10°) | 382mm | |
Overall length | 7310mm | |
Overall height | 3240mm | |
Body width | 2840mm | |
Wheel base | 2760mm | |
Wheel track | 2240mm | |
Slewing radius (bucket on the loading position ) | 6650mm | |
Machine weight | 16.2 ton | |
Speed | Forward I | 0-11.5 kilometer /hour |
Forward II | 0-36 kilometer /hour | |
Reverse | 0-16 kilometer /hour | |
Lifting time of bucket | 7.6s | |
Total time | 13s | |
Standard equipment:
Shangchai diesel 6135k-9b engine
Double-turbine torque converter
Planetary power shift gearbox
Jingong driving axle
triple valve, boom, bracket and bucket
Lifting cylinder, tilt cylinder and side dumping cylinder
Side dumping boom, bracket and side dumping bucket
Seat for general construction
Caliper disc service brake
Standard counterweight, standard tyre 23.5-25(16pr)
...
