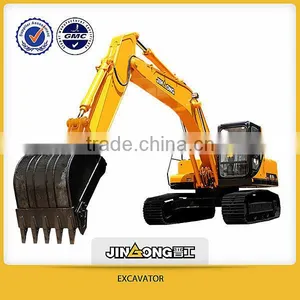

hydraulic pump 24 ton crawler excavator JGM 923-LC pa loader
Standard equipment:
l Engine (Original import Cummins 68TA5.9-C )
l Hydraulic oil, oil (Shell or Mobil)
l Main hydraulic pump (Original import Japan Kawasaki brand)
l High energy maintenance-free battery (2×12V-120hA)
l Main valve (Original import Japan Kawasaki brand)
l Starter motor (24V-5kW)
l Pilot control valve (Original import Japan Kawasaki brand)
l Anti-swing during slewing
l Slewing motor (Original import Japan Kawasaki brand)
l Slewing priority
l Travel motor (Original import Japan Kawasaki brand)
l Travel straight retaining
l Hydraulic oil cylinder (Original import Japan Kayaba )
l Dual-speed shift automatically during
l Hydraulic accessories (Manuli, Parker)
l Heavy duty slewing support (sealed lubrication)
l Track shoe (Italy)
l Lifting hold
l Electronic monitoring and operating system
l Rearview mirror
l Air conditioner for excavator only
l Standard working appliance
l Standard bucket(1.1m3)
l Advanced audio
l Advanced Seats (Grammer)
l Centralized lubrication
l High quality radiating system made by joint venture enterprises
l Ergonomically designed all-weather cab
l Advanced imported paint
Name |
Unit |
Technical specifications |
|
Operating weight |
Kg | 24000 |
|
Bucket capacity |
m3 |
1.2 |
|
Overall length |
A |
mm |
9678 |
Total width |
B |
mm |
2990 |
Total hight |
C |
mm |
3088 |
Width of the turntable |
D |
mm |
2840 |
Ground clearance of counter weight |
F |
mm | 1080 |
Height of counter weight top |
G |
mm |
2070 |
Min.ground clearance |
H |
mm |
468 |
Turntable tail length |
I |
mm |
3075 |
wheel case of track |
J |
mm |
3640 |
The length of the chassis |
K |
mm |
4443 |
Gauge of track |
M |
mm | 2390 |
Standard track width |
N |
mm |
600 |
Travel speed |
Km/hr |
3.4/6.2 |
|
Swing speed |
rpm |
11.8 |
|
Ground pressure |
KPa |
44 (600mm Track plate) |
|
Optional equipment:
Different buckets, Soosan breaker and various optional equipments

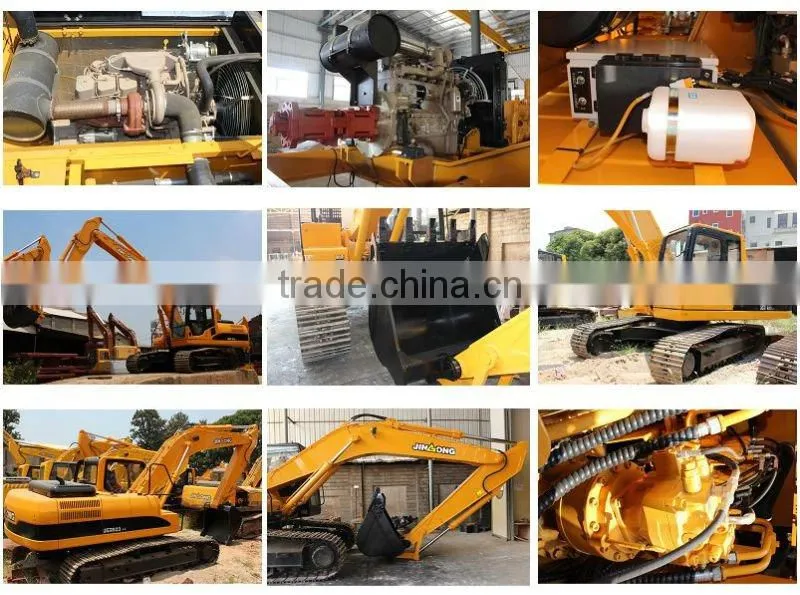

EXCAVATOR DETAILS:
