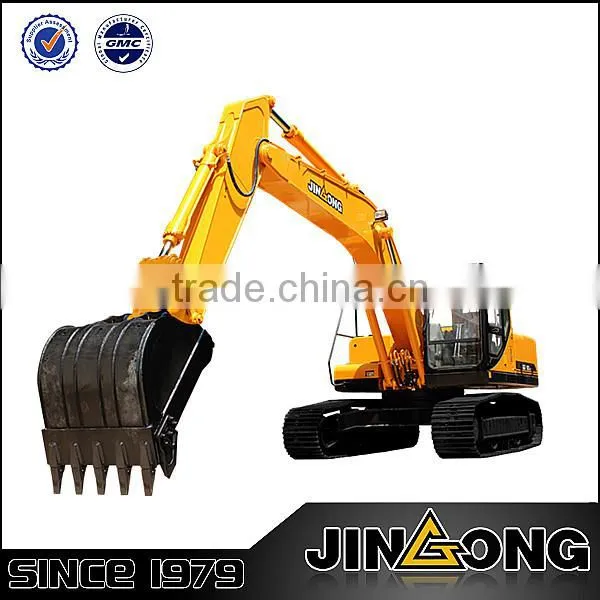

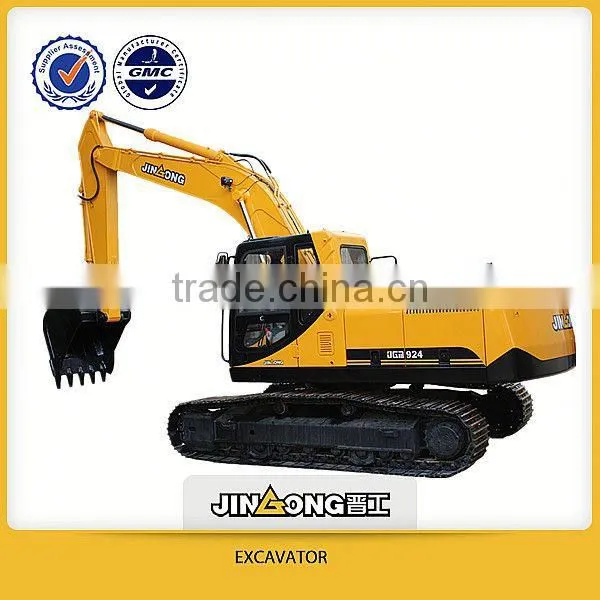

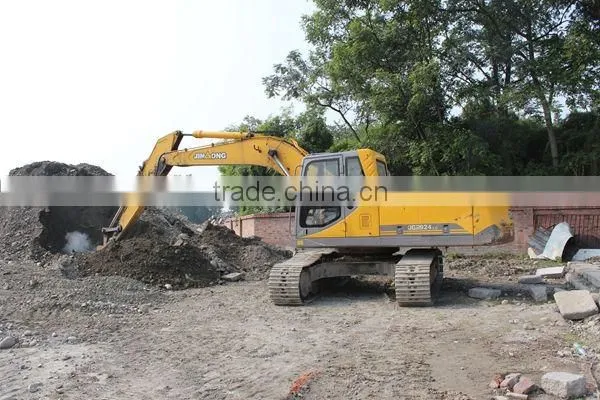

JGM924-LC Hydraulic Crawler Excavator

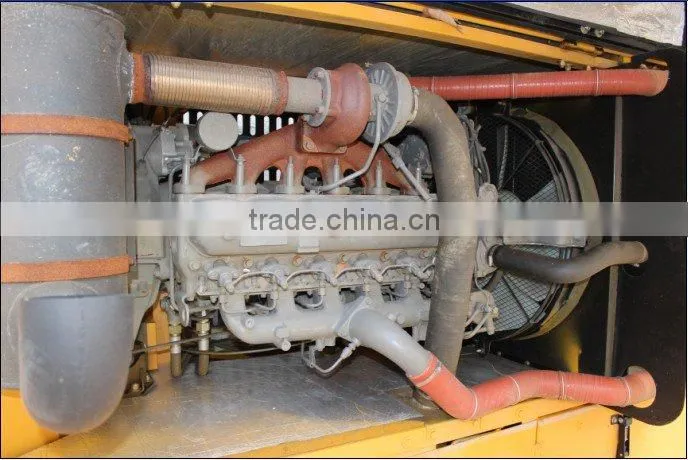

Diesel engine | |
Model | ISUZU CC-6BG1RP |
Type | 4 cylinders,4 strokes, direct injection, water-cooling |
Displacement | 6.494L |
Rated power | 128.5kw at 2100rpm |
Max. Torque | 697nm at 1800rpm |
Dimensions | |
Overall length(during transport) | 9665mm |
Width of turntable | 2990mm |
Height of driver’s cabin top | 3055mm |
Height of boom top | 2030mm |
Wheel base | 3615mm |
Track length | 4443mm |
Track gauge | 2390mm |
Track shoe width (standard) | 600mm |
Operating specification | |
Operation weight | 22750kg |
Standard bucket capacity | 1.2m3 |
Max. excavating height | 9416mm |
Max. dumping height | 6519mm |
Max. excavating depth | 6225mm |
Max. excavating radius | 9743mm |
Min. swing radius | 2820mm |
Excavating height at min. swing radius | 3970mm |
Max. excavating force of bucket | 79.4kN |
Max. excavating force of bucket rod | 66.3kN |
Hydraulic system | |
Main pump | KAWASAKI twin axial plunger pump+ gear pump |
Travel system | |
Travel motor | NABTESCO switchable between two speeds |
brake | Hydraulic, normally engaged |
Track shoe width | 500mm |
Oil and cooling | |
Fuel | 442L |
Coolant | 50L |
Engine oil | 21L |
Travel reducer oil | 2x5.4L |
Swing reducer oil | 4.5L |
Hydraulic oil | 278L |
Excavator heavy
Optional equipment:
Different buckets, Soosan breaker and various optional equipments
...
