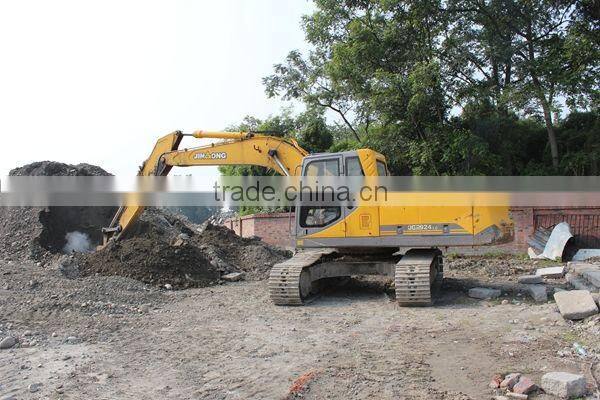

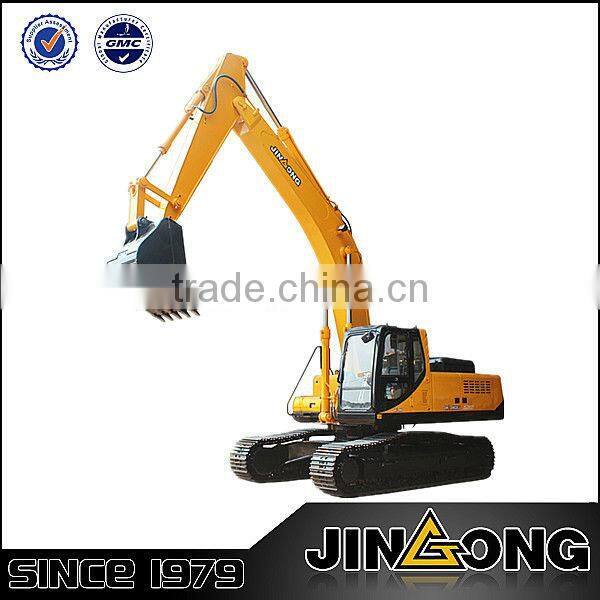

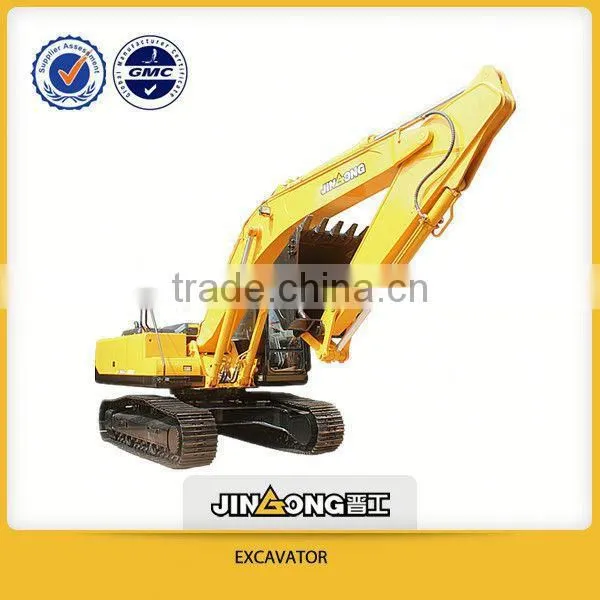

JGM937 Hydraulic Crawler Excavator

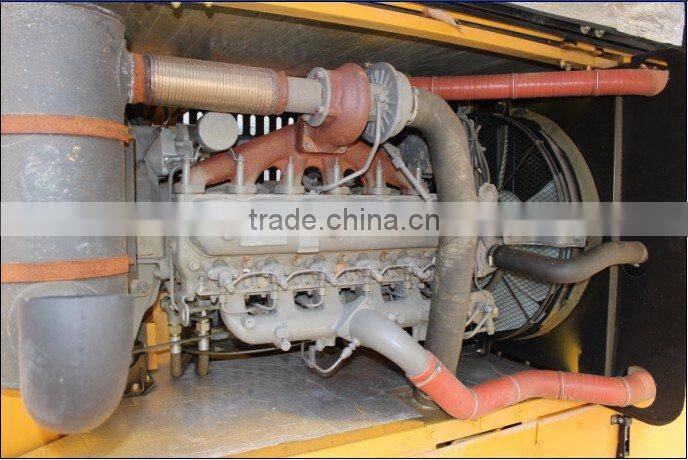

Diesel engine | |
Model | ISUZU AA-6HK1XQP |
Type | 6 cylinders,4 strokes, direct injection, turbo charging water-cooling |
Displacement | 7.79L |
Rated power | 183.9kw at 2000rpm |
Max. Torque | 872.8nm at 1700rpm |
Dimensions | |
Overall length(during transport) | 11235mm |
Width of turntable | 2995mm |
Height of driver's cabin top | 3256mm |
Overall width (600mm Track) | 3200mm |
Wheel base | 4020mm |
Track length | 4949mm |
Track gauge | 2600mm |
Track shoe width (standard) | 600mm |
Operating specification | |
Operation weight | 35125kg |
Standard bucket capacity | 1.6m3 |
Max. excavating height | 10105mm |
Max. dumping height | 7074mm |
Max. excavating depth | 7172mm |
Max. excavating radius | 11059mm |
Min. swing radius | 2820mm |
Excavating height at min. swing radius | 3970mm |
Hydraulic system | |
Main pump | KAWASAKI twin axial plunger pump+ gear pump |
Travel system | |
Travel motor | NABTESCO |
brake | wet multi-plate brake |
Track shoe width | 600mm |
Heavy Construction Machine, Hydraulic Crawler Excavator
Optional equipment:
Different buckets, Soosan breaker and various optional equipments
....
