Help CenterHeavy Granites Marble Front End Log Skidder Loader for Sale 3 Ton for Hot Sale
Related Products
-
Excellent Performance Rock Fork Loader JGM761FT28 CE Joystick to SaleNegotiableMOQ: 1 Set -
Heavy Equipment China Front End Wheel Loader for Sale With Wood Log SkidderUS$ 61,500 - 62,000MOQ: 1 Set
-
Construction Machine Tunneling Loader for Sale JGM737 Wheel LoaderNegotiableMOQ: 1 Set
-
Front End Log Skidder Loader for Sale 3 Ton JINGONG JGM761FT21 FOR SALENegotiableMOQ: 1 Set
-
China Front End Wheel Loader for Sale With Wood Log Skidder Fork Bucket DoubleUS$ 40,000 - 70,000MOQ: 1 Set
China best-seller, Stone Expert, for Quarry working

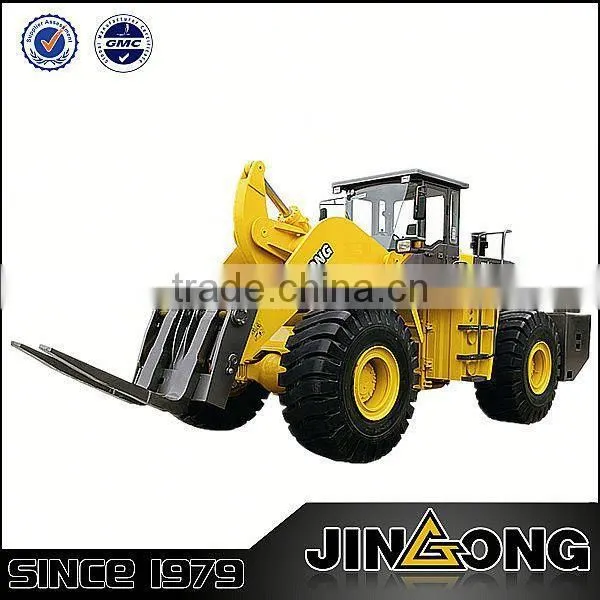

28T Stone Block forklift loader heavy equipment air conditioner
Main specification
| Operating weight | 28000kg |
| Max. load | 30000kg |
| Max. climbing angle | 23 degree |
| Fork dimenstions | 1500*1205mm |
| overall dimenstions | 8535*3050*3525mm |
| Min. turn radius | 8000mm |
| Fuel tank | 220L |
| Hydraulic oil tank capacity | 270L |
Engine
| Model | Weichai WD10G240E21 |
| Type | Inline diesel engine turbo charged, 4-stroke direct-injection |
| Rated power | 162KW |
| Rated speed | 2200r/min |
Torque converter and Transmission
| Torque converter type | Single-phase 4-element (twin-turbine) |
| Transmission type | Plantery hydraulic sift |
| Gear shift | 2 Forwards 1 Reverse |
Tyre
| Type | Four-wheel driving |
| Tyre type | 26.5-25 |
| Tyre pressure | Rear tyre: 0.475Mpa Front tyre: 0.625Mpa |
Brake System
| Service brake | Air over hydraulic disc brake |
| Parking brake | Flexible-shaft-operated disc-clamp-type brake |
Expert for shoveling and loading of rock and quarry stone
Features:
1.Four-element dual-turbine torque convert and continuosly variable transmission enable powerful traction and stable starting.
2.Four-wheel driving,articulated steering,big-diameter engineering tires,featuring super off-road performance and flexible steering abilibity ,big groud clearance of chassis,being suitable for various complicated working conditions.
3.Power gearshift,that is highly flexible,easy and convenient.
4.Disc brake ensures safe and reliable operation.
5.Z-bar linkage mechanism,offer big lifting force in the range from ground to 1.5m high.
6.The cab featuring spacious view and noise reduction*vibration isolation;good operation environment.
7.761 can be equiped with special bucket.
...
Send Inquiry to This Supplier
