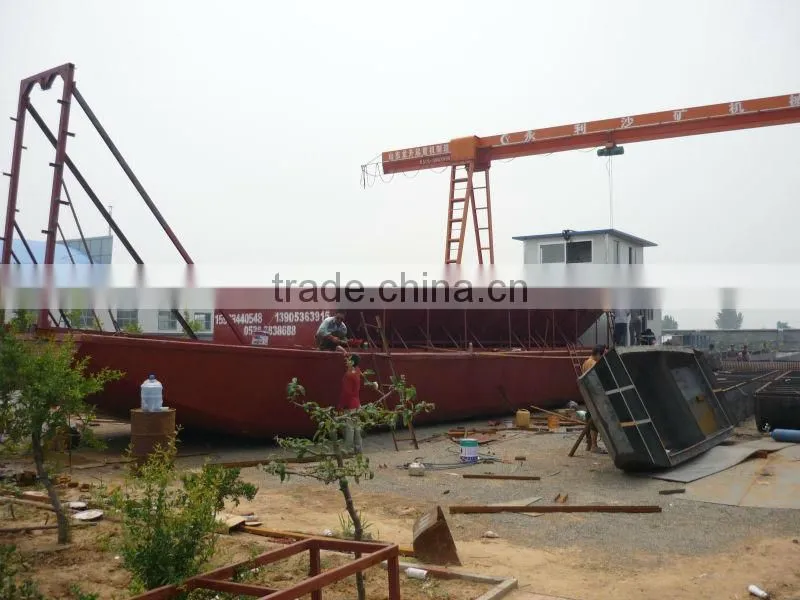

Self propelled river sand barge,transportation ship
1.Brief Introduction
Yongli self propelled sand transport barge is designed and used for sand transport in river,lake,sea and channels. Usually it matches up with sand dredger. After sand and gravels are digged up, and if the stock area has a long distance from the dredging area, you have to use the transport barge to transport the sand and gravels. There are conveyor belts on the barge. The sands and gravels will be discharged onshore when the barge reaches the stock area and the unloading work will be very fast.
2.Technical Specification
No. | Item | Specification | Remarks | |
1 |
Pontoon |
Length 28m Width 5.4m Depth 1.5m | Steel Plate | |
2 | Power | 95kw | Cummins | |
3 | Gearbox | Type 60 | ||
4 | Propeller | Diameter 86cm | ||
5 | Winch | Type 250 Power7.5kw | 4 sets | |
6 | Steering Wheel | 1 set | ||
7 | Electricity Generator | 30kw | 1 set | |
8 | Folded Deck | Length 5m Width 6m |
| |
9 | Rail | Diameter133mm Height 300mm | ||
10 | Operating Room | 1 | ||

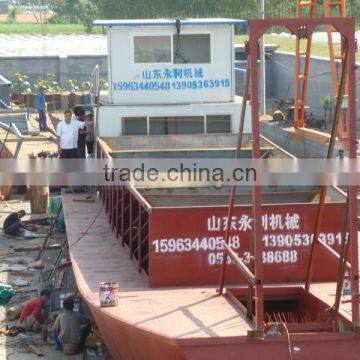

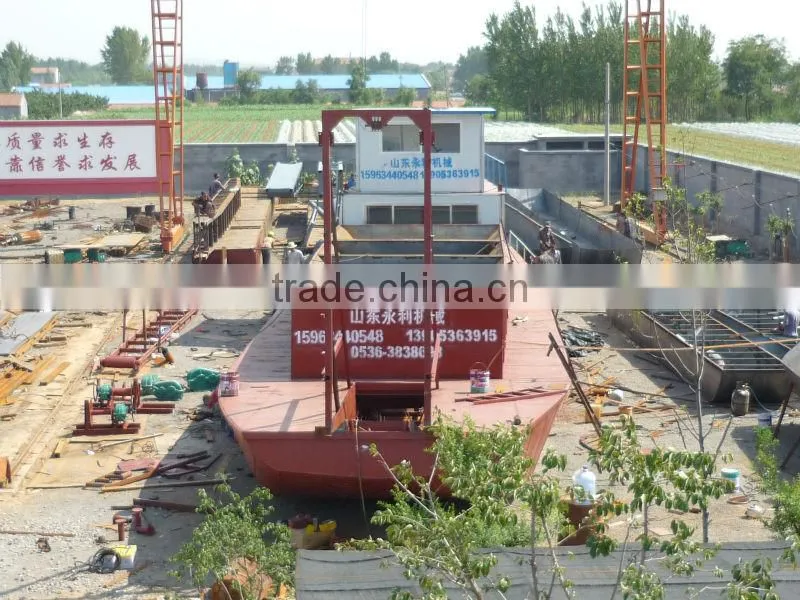

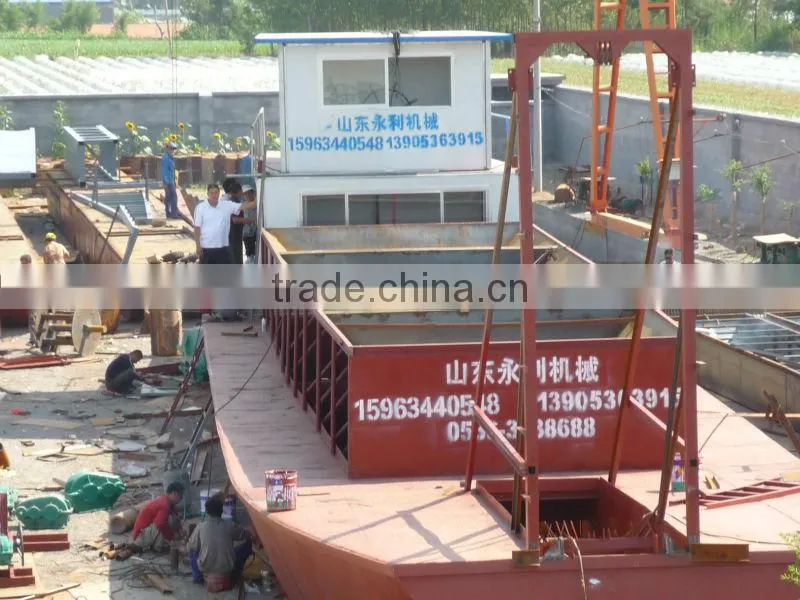

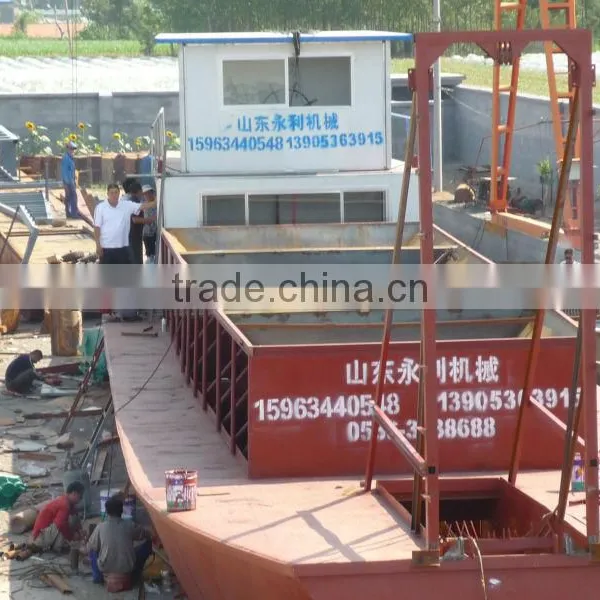

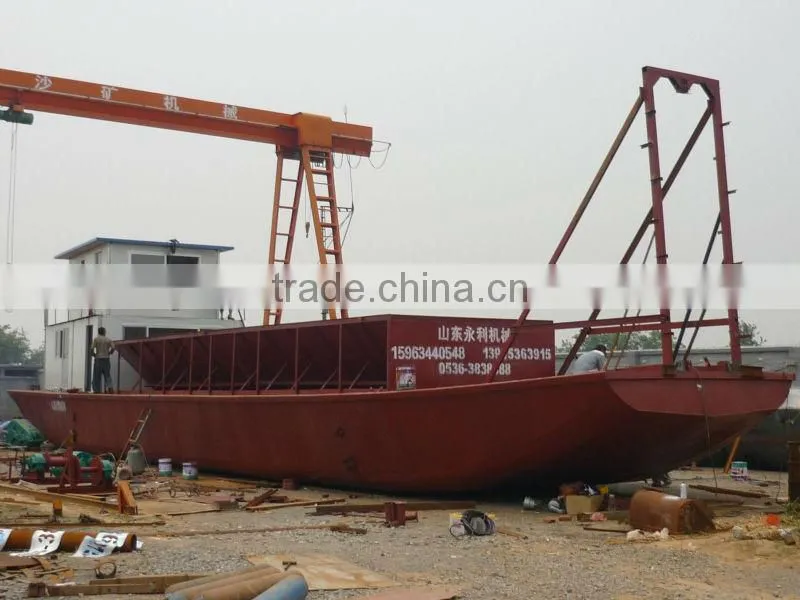

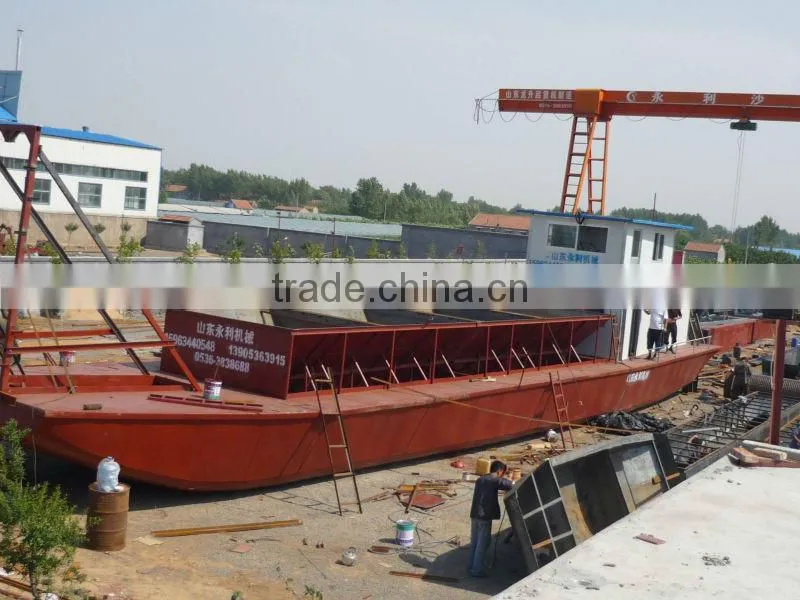

3. Picture Show

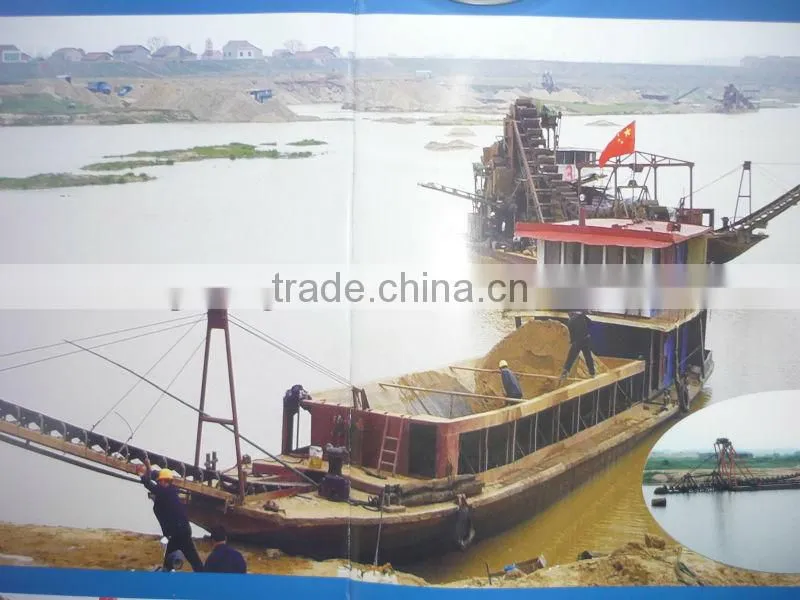

The main sand dredgers
