6 Inch Jet Suction Gold & Sand Dredger For Sale

Name: 6 Inch Jet Suction Gold & Sand Dredger For Sale
Brand: YongDeLi
SKU: 141344470
Availability: InStock

Qingzhou Yongli Mining And Dredging Machinery Co., Ltd.

US$ 60,000 - 150,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, jet suction dredger

Power Type:

Diesel

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Tianjin shanghai or other port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, jet suction dredger

Power Type Diesel

Dredging Depth 15 m

Draught 50 cm

Place of Origin Shandong, China

Brand Name YongDeLi

Model Number YL120

Dimension(L*W*H) 11*4.5*0.9m

Weight 22T

Certification ISO9001:2008

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Product Description

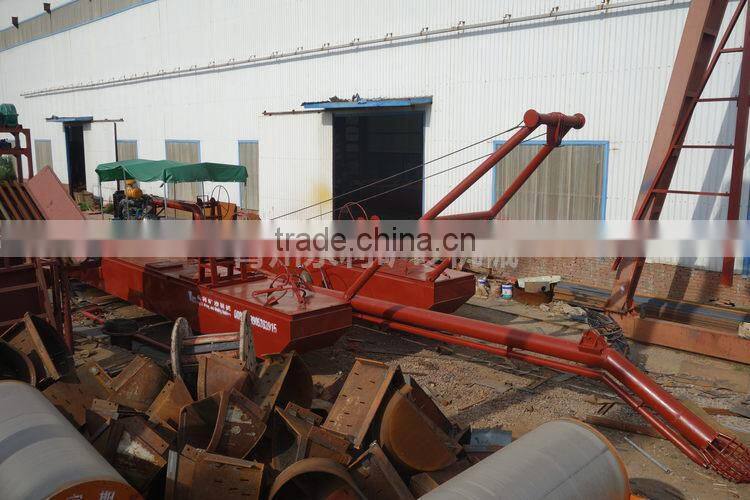

6 Inch Jet Suction Dredger For Sale

1.Feature Jet suction dredger is applied for inland waterways, lakes and coastal areas where sand layer is soft for dredging work.

The high pressure water jet will break the sand layer first, then sand pump will suck up the solids and discharge then onshore or to the transportation boat.
Customized according to dredging depth, working capacity and discharge distance.
Main diesel engine provides power to sand dredging pump and auxiliary diesel electricity generator supplies electricity to high pressure water pump, winches and lighting system.

2.Techinical Specification

jet suction sand dredger
Model	Flow (m³/h)	Power (kw)	Dredge Depth (m)	Discharge distance (m)	Suction Discharge Diameter (inch)
YLSX-200	200	108.5	1~15	≤500	6/6
YLSX-500	500	150~300	1~15	≤1000	8/6
YLSX-1000	1000	200~500	1~15	≤1000	10/8
YLSX-2000	2000	300~600	1~15	≤2000	14/12
YLSX-3000	3000	500~900	1~15	≤3000	16/14
