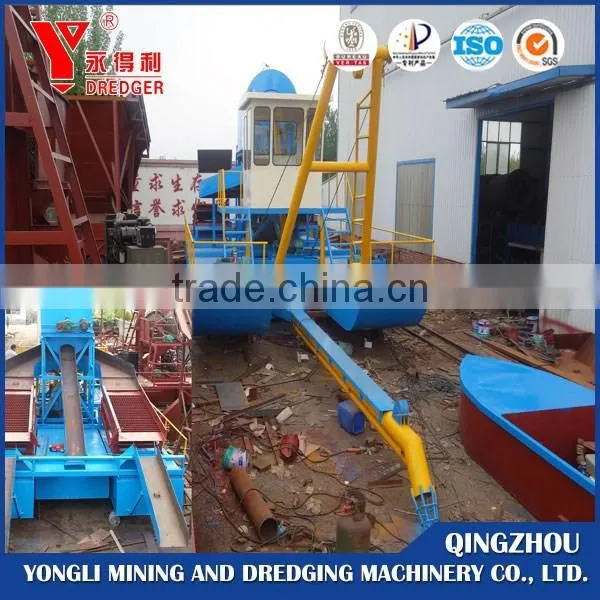

jet sand suction dredger vessel
* Jet Sand Suction Dredger Vessel Introduction
- Jet sand suction dredger vessel is applied for inland waterways, lakes and coastal areas where sand layer is soft for dredging work.
- The high pressure water jet will break the sand layer first, then sand pump will suck up the solids and discharge then onshore or to the transportation boat.
- Customized according to dredging depth, working capacity and discharge distance.
- Main diesel engine provides power to sand dredging pump and auxiliary diesel electricity generator supplies electricity to high pressure water pump, winches and lighting system.
* Technical Specification
NO. |
Item |
Specifications |
Remarks |
1 |
Boat Dimension(L*W*H) |
5.5m*2.1m*0.86m |
|
2 |
Jet suction water pipe |
3.5m |
|
3 |
Dredging depth |
15m |
|
4 |
Output of sand |
40-50m3/h |
|
5 |
Discharge |
100m |
|
6 |
Sand suction pump |
8”/6” |
origin: Guangzhou |
7 |
Injection pump |
4”/4” |
|
8 |
Main engine |
4105 |
origin: Weifang |
9 |
Auxiliary power |
18hp |
Single cylinder diesel engine |
10 |
rubber hose |
Length 15m, dia. 159mm |
|
11 |
Injection pipe |
Length 16m, dia. 108mm |
|
12 |
Lifting machine |
2Tons |
|
13 |
Lifting portal frame |
Length 3m |
Type 6.0 drill pipe |
14 |
Transportation pipe |
Dia. 150mm |
Length 100m |
- Our principles and services
* Merchants photo
In order to provide you with efficient & suitable quotation and assistance for you, could you kindly tell me the following information:
1) Output capacity(m3/h)
2) Max.dredging depth(m)
3) Discharge distance(m)
WELCOME TO CONTACT US FOR DREDGER COOPERATION!!
QINGZHOU YONNGLI MINING & DREDGING MACHINERY CO.,LTD.
