Bucket and Chain Equipment of Gold Extraction Overwater

The working principle of the equipment

This vessel is not a self-propelled bucket chain gold mining ship.

 Hull is using the structure of transverse framing fission box structure.

Equipment includes: anchor equipment , bucket chain drive equipment, trommel screen

equipment, sorting equipment ,transportation equipment, ect.

Through the winch lifting bridge installed on the hull.

Through chain bucket device put underwater  sand and rock mining.

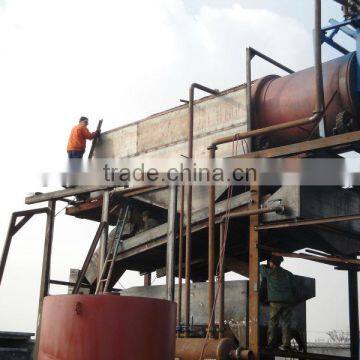

Putting this  sand and rock into trommel screen .Then after screening system screening, fine

material into separation device to gold  extraction.

Waste stones through the chute into conveying equipment delivery to the shore.

The motivation comes from generator of the ship. Driving gear box to drive the whole  set of the

equipment.

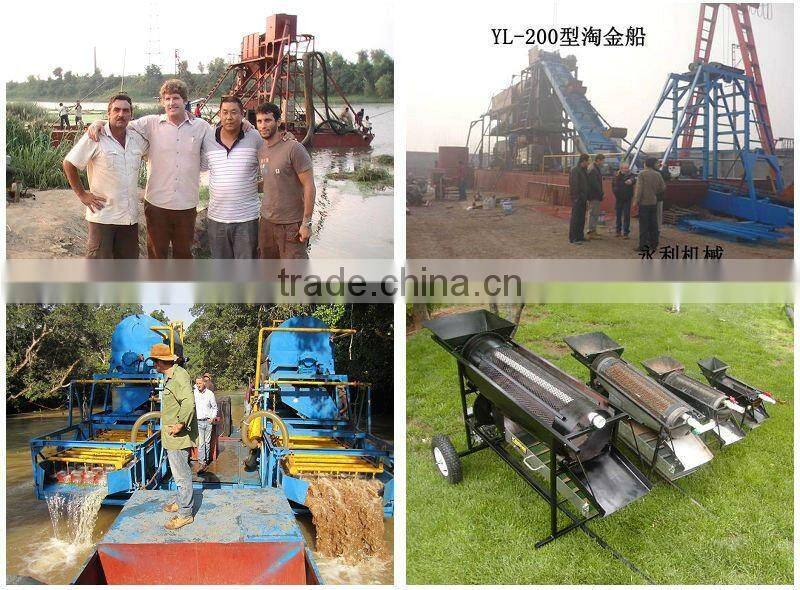

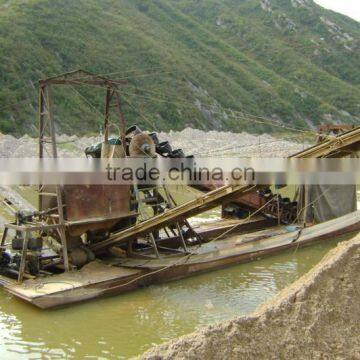

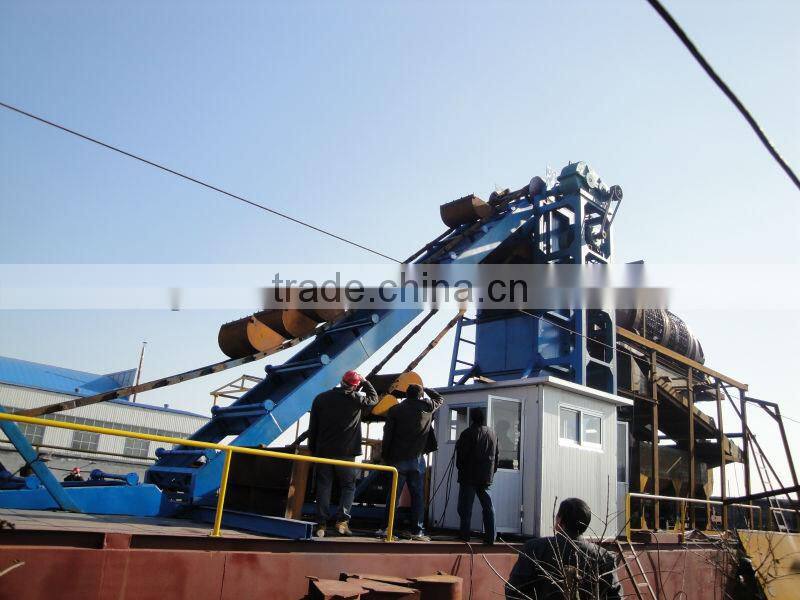

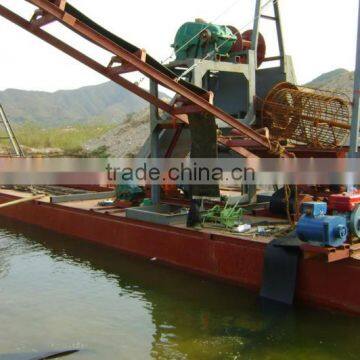

Pictures of our bucket chain gold dredger

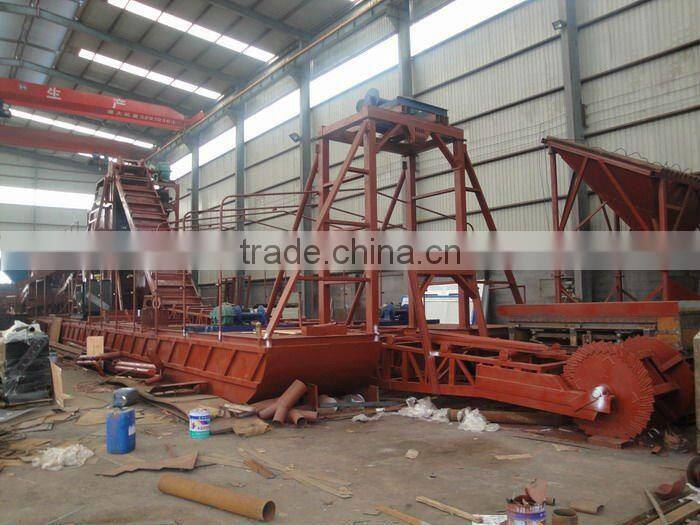

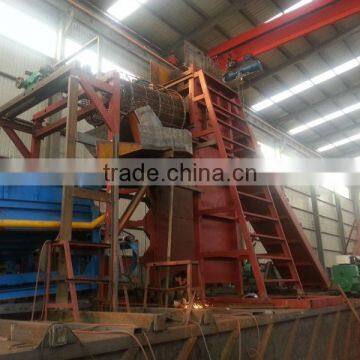

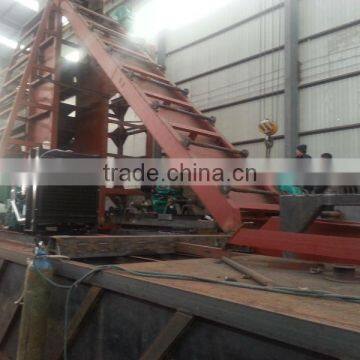

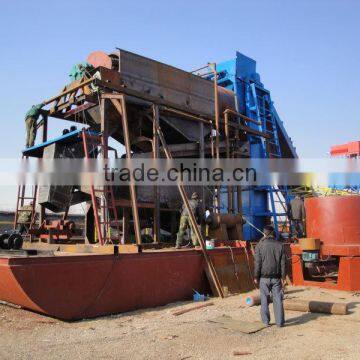

Bucket chain gold dredger under building in our workshop.

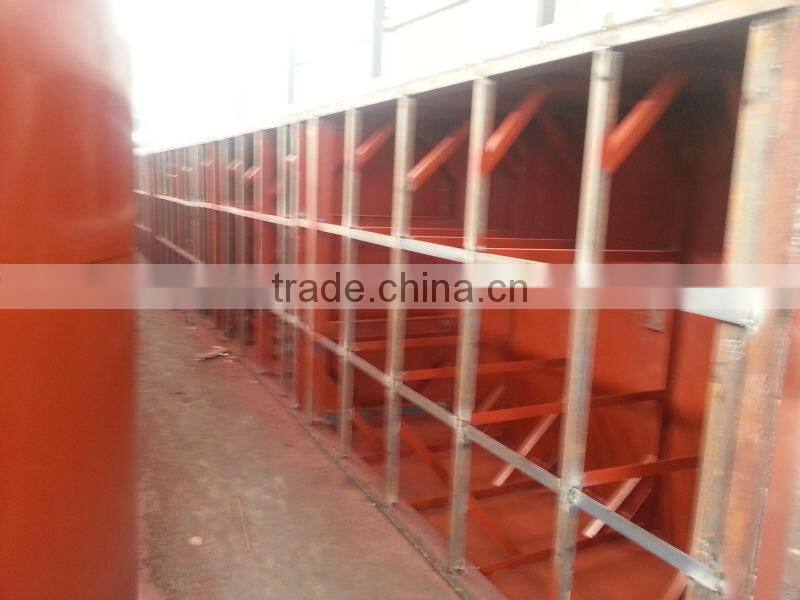

Side pontoons made in 8mm thick steel plate ,U-steel

The mode of transportation of container transportation major

                                     Delivery Time:  45 days after receiving 30% deposit.

                         Containers Needed for shipping:  5*40HQ

 After the equipments reaches the buyer's mine site,the seller will send one or two technicians to guide the installation and train the workers.The buyer will be responsible for the technician's salary USD 84 per day per person,meals and accommodation,round air tickets,visa application,insurance,traffic and communication fee,and also need to sign service agreement to guarantee his safety.

The guarantee of diesel electricity generator,gearbox,electric motor are 12 months according to the manufacturers' regulations.
