Gold Mining Equipment
This gold mining equipment is composed of one big trommel , three vibrating sluice boxes and three fixed chute with gold grass . It is suitable for land gold minning , and it is flexibale , you can carry it anywhere . we ensure high efficency and good recovery .
Please forward some information relative to your mining project, as soon as we received the range of your interest I shall quote you accordingly
>Type of minerals to be mined?
>Type of deposit (Primary/hard rock, or secondary/placer)?
>Physical characteristics of the ore (sandy, with light clay or heavy clay)?
>Intended feed capacity (Tons/hour)?
>Availability, source and distance of water from your mining area?
>Preferred drive system (Electric Motor, Diesel or Gasoline Engine)?
>Startup schedule of the mining operation?
>Location of your mine (area, country)?
Specification for gold mining equipment:
NO | Item | Specification | Qty |
1 | Supporting Base | Length 15.9m Width1.5m Height 1.16m | 2 |
2 | Hopper | Length2.2m Width3.6m Height2.8 m | 1 |
3 | Conveyor Belt | Length 7m Width1.0m | 1 |
4 | Rolling Screen | Inner Screen Length3.8m Diameter1.2m,Outer Screen Length 3.2m Diameter1.5m | 1 |
5 | Waste Material Chute | Length 4.2m Width1.5m | 1 |
6 | Pulsating sluice box | Length 3.5m Width1.4m | 6 |
7 | Fixed sluice box | Length 3.1m Width1.4m | 6 |
8 | Electric Motor
| 12kw | 2 |
9 | 3kw | 6 | |
10 | Vibrating Electric Motor | 0.4kw | 1 |
11 | Water Pump | 18.5kw | 2 |
12 | Diesel Electricity Generator | 100kw | 1 |
To konw more details , welcome to send email to us , we can show you the working video

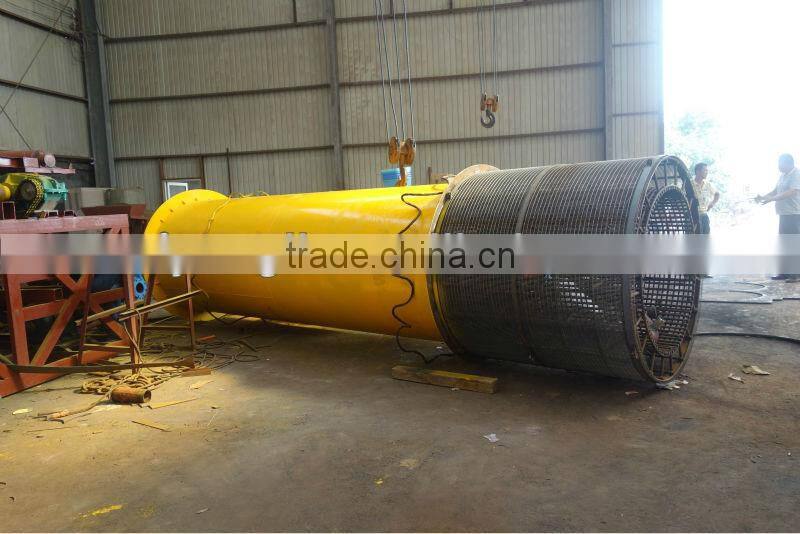

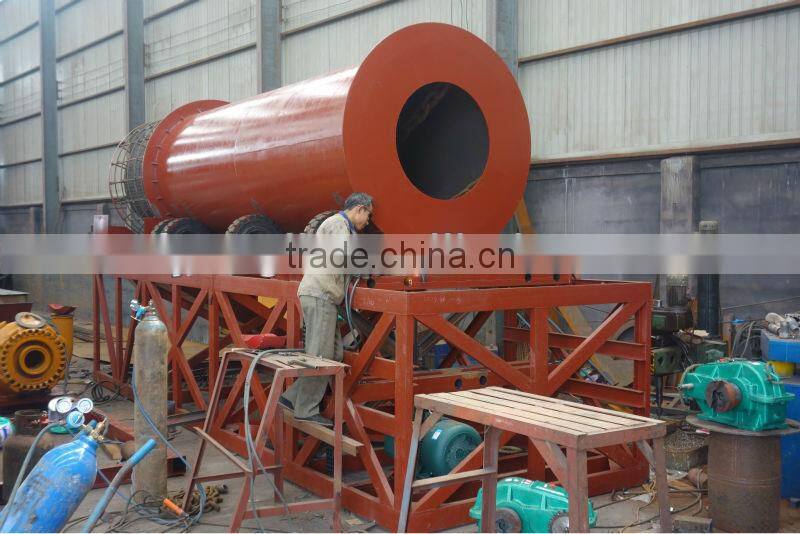

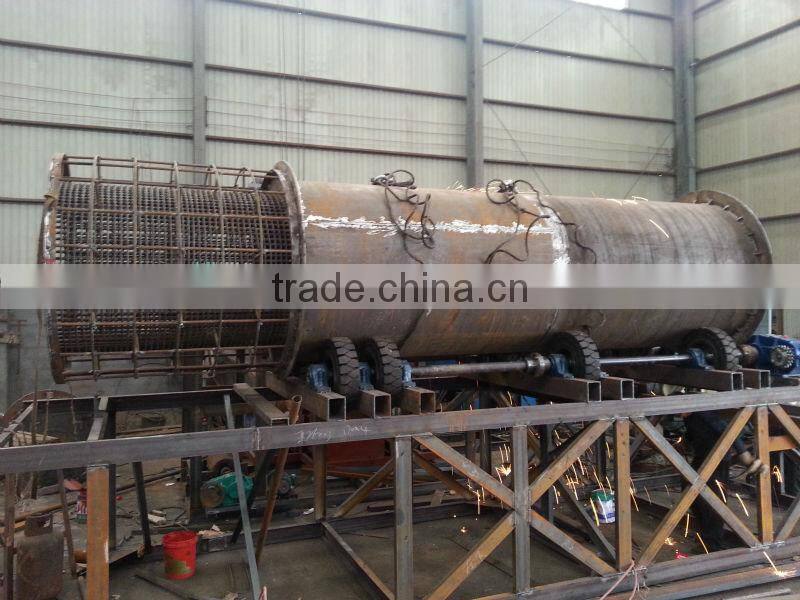

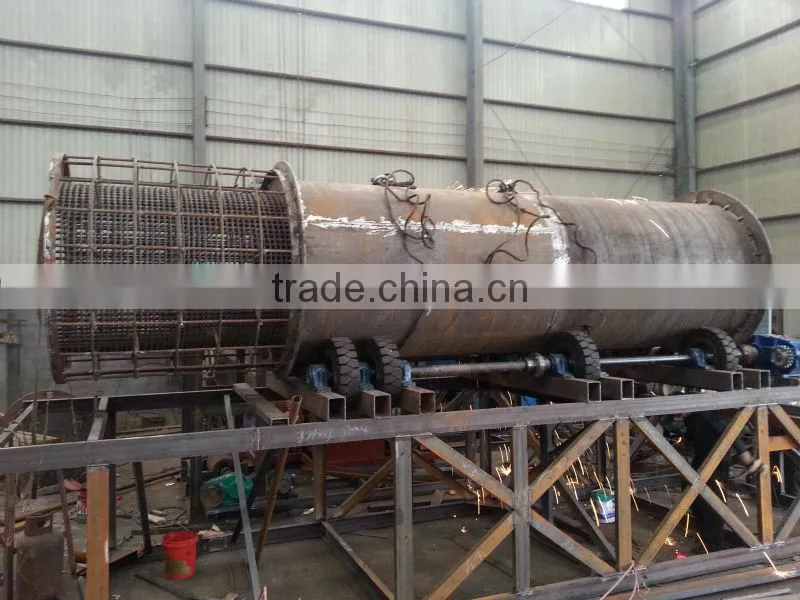

Gold mining equipment under building

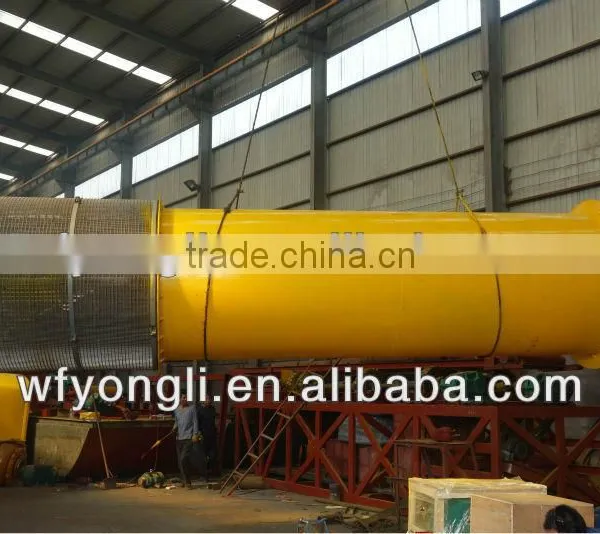

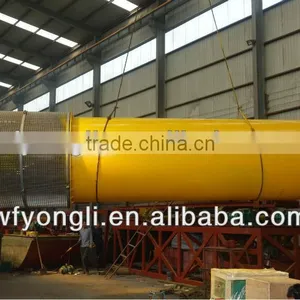

Gold mining equipment
The gravel screen will separate the small stones before the sand goes into pulsating gold sluice box. If you have mud/silt in your mine, we will design another trommel classifier to break the mud/silt into pulp.
Customer visiting us
For more detailed information, please contact us directly.
