2013 New Gold Panning Dredger
Cutter suction type gold panning dredger
Bucket wheel type gold panning dredger
Jet suction gold panning dredger
1. Introduction to gold panning dredger
Gold panning dredger, also called gold dredger,gold dredging machine, is a variation of sand dredger. After the solids are dredged up, the roughing gold concentration mechanical system on board will separate the gold directly and discharge the unwanted materials like sand and gravels into the river.
Qingzhou Yongli Mining and Dredging Machinery Co.,Ltd is an ISO9001:2008 certified professional manufacturer of gold panning dredgers. Our gold panning dredger have been exported to Bolivia,Mali, Cameroon,Central Africa,Malaysia and other countries.
We hereby declare that all the gold panning dredgers on the pictures listed are our patent products.We will show you more pictures and videos when you visit our factory. Please contact us directly for more details.
2. Technical specification for the bucket wheel type gold panning dredger
(Please note this specification is just for your reference.)
| Pontoon | |||||
| Dimension(L*W*H) | 32m×2.2m×1.26m | 2 units | Steel Plate Thickness:6mm | ||
| Inner Frame | 6×6 Angle Iron | ||||
| Side U-steel | 12# U-steel | ||||
| Compartment | 2.4m×1.14m | 12 units | Steel Plate Thickness:3mm | ||
| Deck | Anti-slip steel plate | Thickness:5mm | |||
| Main Frame | |||||
| Square Frame | 6m×1.60m | 1 set | Dual 16# U-steel | ||
| Inclined Frame | 6m×1.60m | 1 set | Dual 16# U-steel | ||
| Boom | |||||
| Boom above pontoon | Length: 8.8m Width: 1.8m | 1 unit | |||
| Boom underwater | 25.8m ×1.8m ×0.8m | 1 unit | Dual 14# U-steel | ||
| Wheels | |||||
| Top wheel | Diameter 1.0m Width 1.3m | 1 unit | Steel plate thickness:18mm |
3. Pictures of our other gold panning equipments

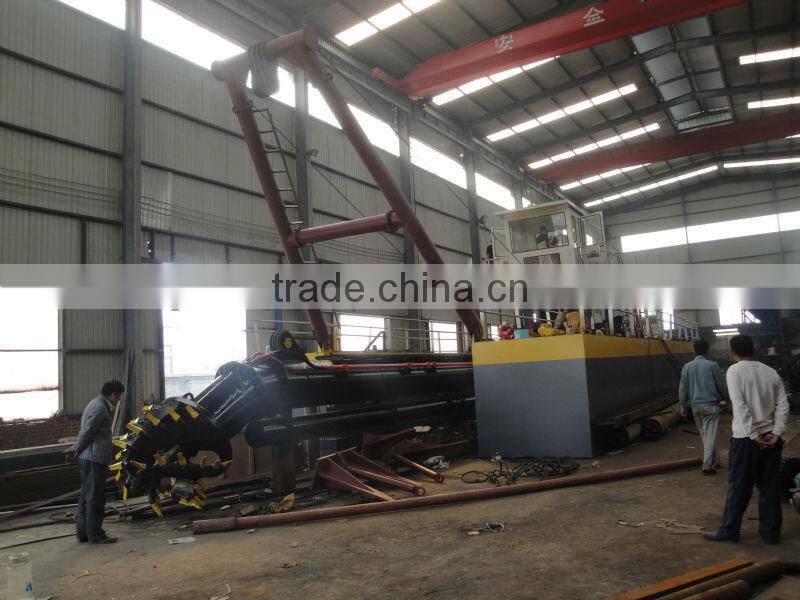

Hydraulic cutter suction dredger built for Indonesian Lippo Group, used to mine the Zircon sand

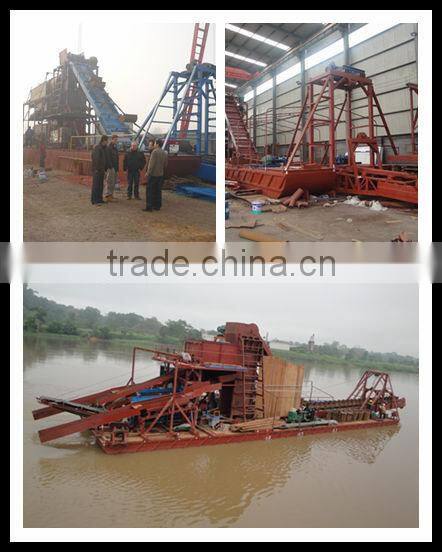

Bucket wheel gold panning dredger exported to Central Africa
