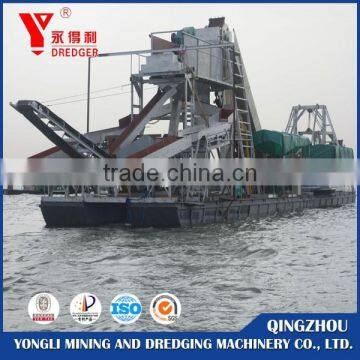

Best selling bucket chain gold mining dredger
Product Introduction
Gold mining machinery installation of gravity concentration equipment, extraction of gold, iron,manganese, tungsten, platinum and other metals and rare minerals, has a high degree of automation, high accuracy in the filed, the leading level in all over the world.
Working principle of product
Gold mining machinery device is rotated by the bucket, so the underwater sand mining to digging bucket, and then into the screening system (screen), round screening for single, double two, can put the sand gravel, mud, weeds can be separated from the sand, the out of the conveyor belt. Transportation is a dual conveyor, conveyor and conveyor of several single. Both sand and impurities can be separated. Sand transport distance of 10-20 meters, the impurity transport distance of 6-16 meters, according to customer requirements and recovery of stones and other.
Advantage of Gold Mining Machine
♦♦ Widely used in most terrains
♦♦ Low exploitation cost.
♦♦ Easy operation which needs few staff.
Technical Parameter
Model |
YLWS-2 |
|
Dimension |
L*W*H(mm) |
(18-25)x(1.5-2.0)x2.5m |
Working Capacity |
m3/h |
60-100 |
Dredging depth |
m |
18 |
Bucket |
Size(mm) |
500*500 |
Power(kw) |
50-100 |
|
Quantity(piece) |
70-90 |
|
Trommel |
Type |
Double layer |
Power(kw) |
7.5 |
|
Outer Dia(mm) |
1500 |
|
Inner Dia(mm) |
1100 |
|
Length(mm) |
3200 |
|
Chute |
Length(mm) |
7000 |
Width(mm) |
1500 |
|
Type |
with carpet |
|
Positioning anchor |
Unit |
4 |
Power |
Diesel generator |
100kw |
Our Service
a. Reply your inquiry in 24 working hours.
b.Experienced staffs answer all your question in professional and fluent English.
c.Customized design is available.
d.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
Gold mining machine is one of the company's flagship product, the main technical personnel to participate in the development of the dredging, and repeatedly modified, making it more perfect.
dredger parts
the main component :Tommel scrren , pontoon , buckets , top wheel and bottom wheel
square frame and portal frame
We are eager serving you
QingZhou YongLi specializing in the production of dredger, dredging vessels, dredgers, cutter suction dredger, Is the leader of national soft mining machinery industry, set the dredger, gold rush ship, gold machinery, equipment research, development, production of professional mechanical design, installation, commissioning services integrated manufacturing company.
Over the years, by virtue of a strong, successful build yodlee series of products by the people's Republic of China State Administration of Quality Supervision Inspection and Quarantine of the signature and approval, and passed the ISO9001-2008 quality system certification .
Customers specifically to visit our company that in order to purchase dredger equipments
We have all kinds of product except for bucket type sand dredger .For example:Cutter suction dredger,Gold and diamond washing plant .
Please let us know if you need what kind of products ,We will be the best quality service to cooperate with you .
