Hot sale bucket wheel gold dredger
1.Brief Introduction to gold dredger
- The bucket wheel gold dredger is a variation of the bucket wheel type sand dredger. We just add the gold roughing separating mechanism on the back of the dredger so it could separate the gold directly on board.
- The dredging depth and capacity are all customized according to customers' specific requirements.
- We recommend the instigating sluice box instead of other gold separating machine like fixed sluice with gold carpet or centrifugal concentrator.
- As you can see from the pictures below, the structure of our bucket wheel gold dredger is specially desgined to ensure the stability and low maintenance.
2.Specifications of gold dredger:
1.Length:28m
2.Application:gold dredging and separating on board
3.Recovery rate:86%
4.Dredging depth:12m
Item | Parameter | Remarks |
Model | YLWS-2 |
|
Bucket quantity | 70-90 |
|
Size | (18-25)x(1.5-2.0)x2.5m |
|
Dredgering depth | 1.5-12m |
|
Belt/waste belt length | 15/14m |
|
Drp output | 200m3/h |
|
Highest power | 50-100kw |
|
Electromotor model
| 37kw | 1 |
18.5kw | 1 | |
11kw | 1 | |
5.5kw | 2 | |
Gearbox model | 750 type | 1 |
6500 type | 1 | |
350 type | 1 | |
250 type | 1 | |
Opposite gearbox |
| 1 |
*The above specification is just for your referrence.For the details please contact us directly.
3.Pictures of our bucket wheel type gold dredger

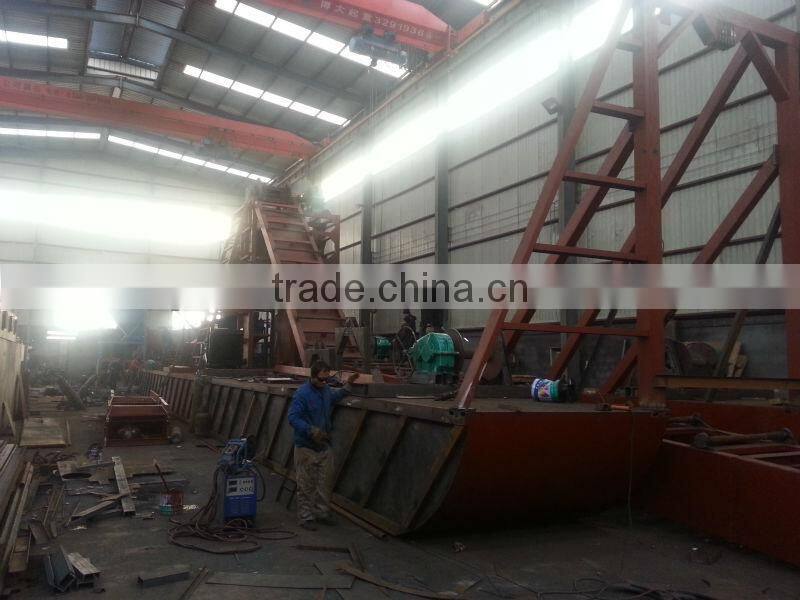

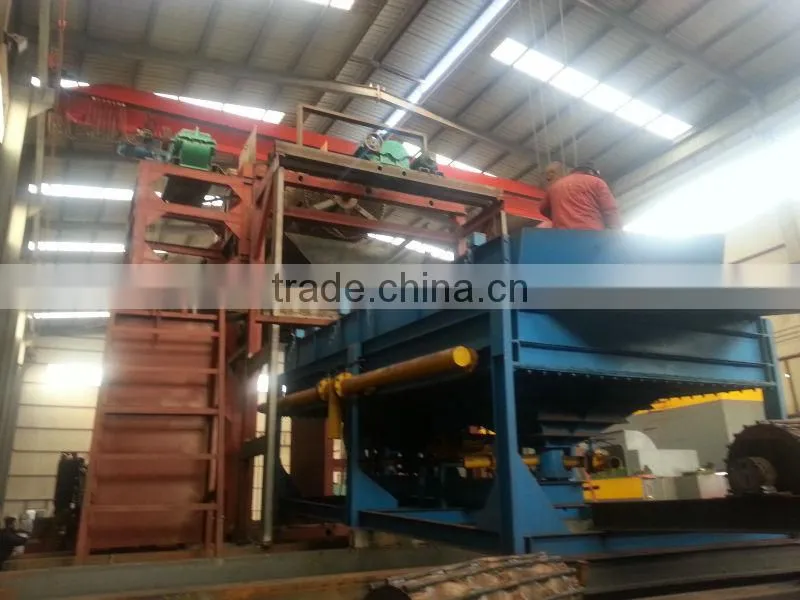

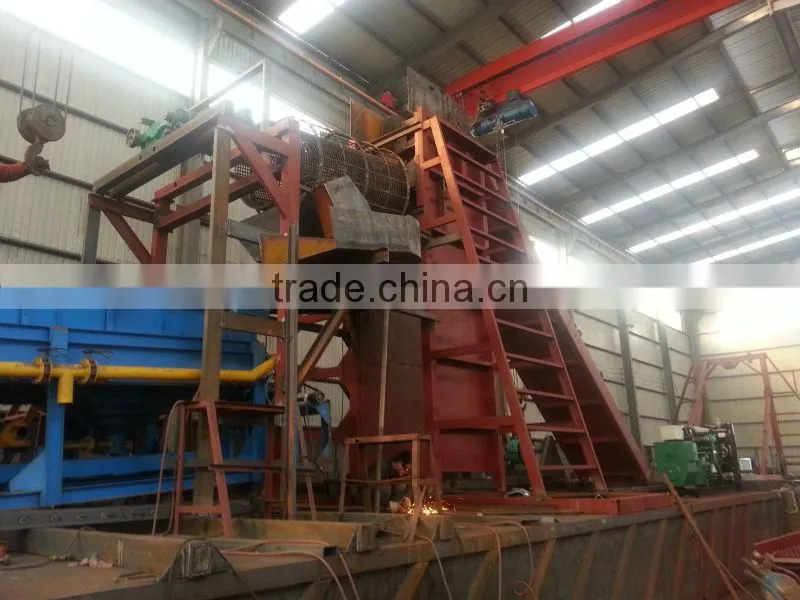

Bucket wheel gold dredger under building in our workshop.

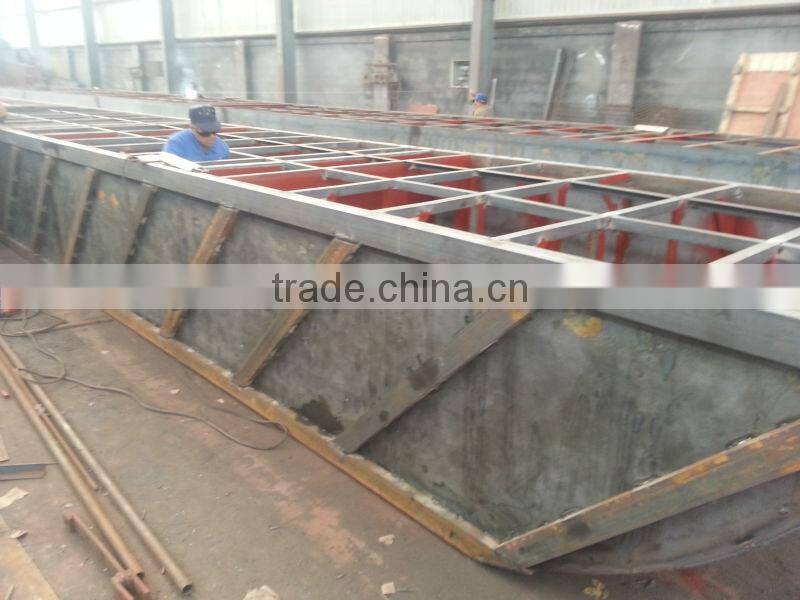

Side pontoons made of 8mm thick steel plate,U-steel

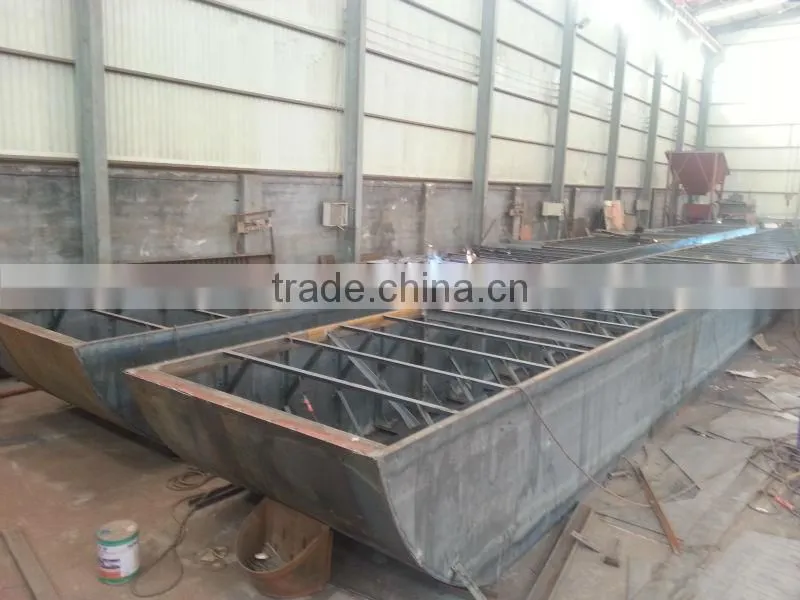

The sides of the pontoons are strengthened with U-steel for long lifetime.

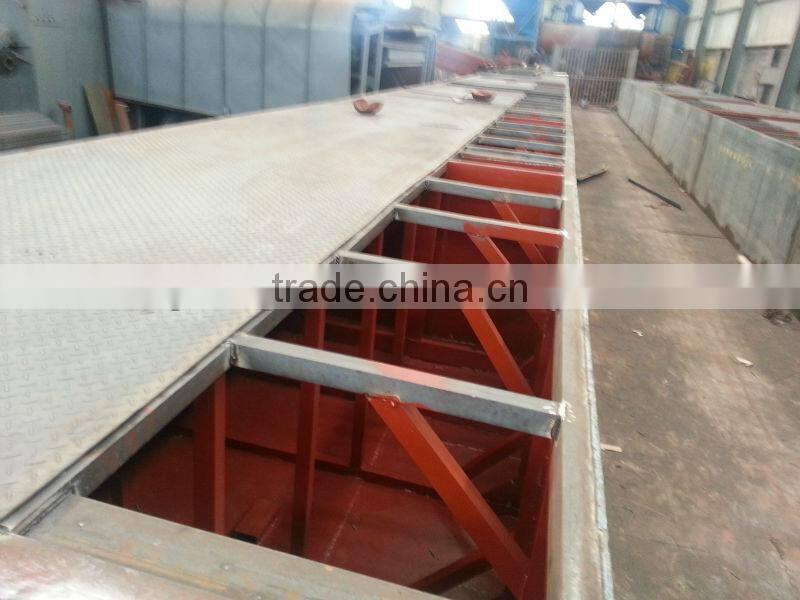

The pontoon is covered by 6mm thick anti-slip steel plate

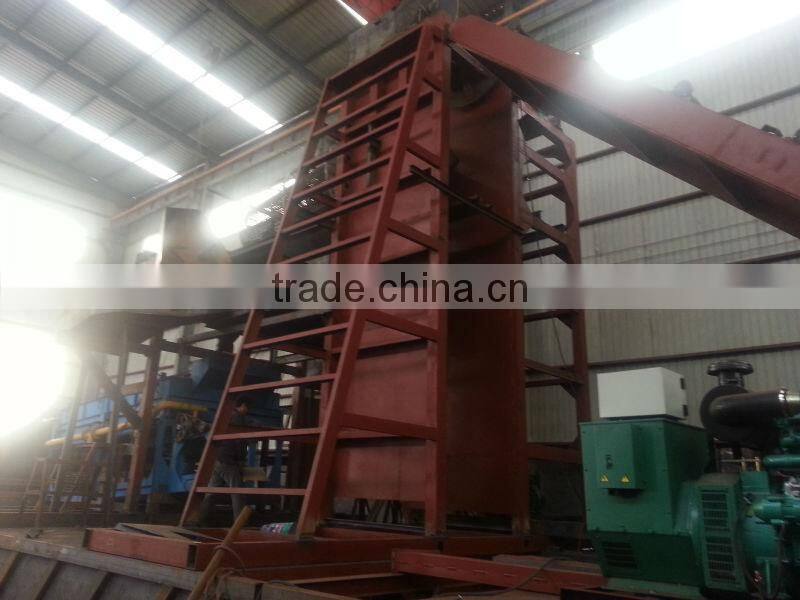

The main frame that holds the screen and the ladder(also strengthed)

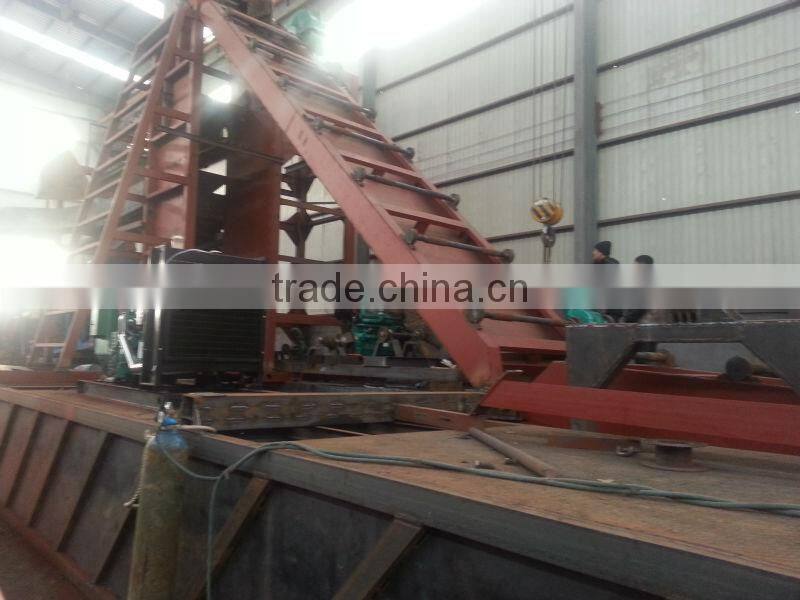

The main bucket holding ladder above water
Screen driven by electric motor to separate the gravels and sand

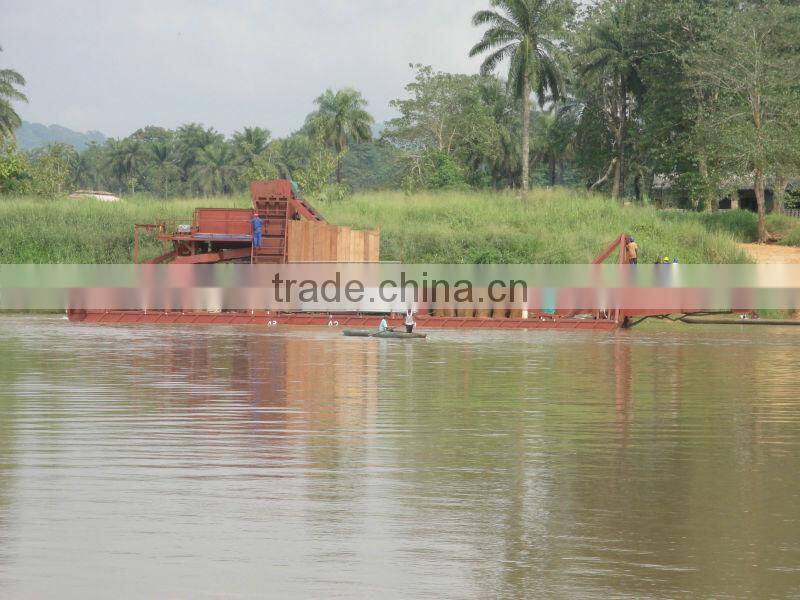

bucket wheel gold dredger working on site in Central Africa

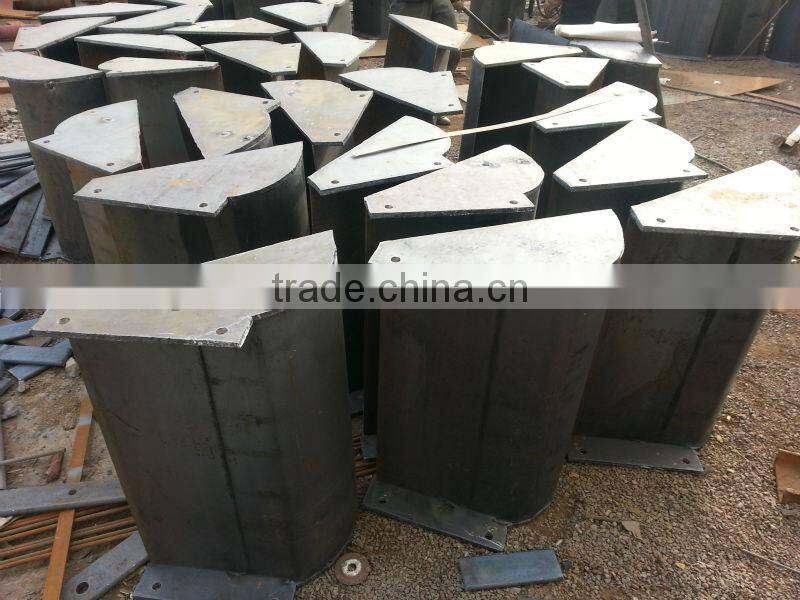

Special square buckets used for gold dredger.
