gold mining machine for jet suction dredger

FOB Price

USD $50,000 - $80,000 / Set

1 Set(Min.Order)

Supply Ability 20 Unit / Units per Month
Port QingDao
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Other, jet suction dredger	Power Type:	Diesel
Dredging Depth:	8 m	Draught:	90 cm	Brand Name:	YongDeLi
Model Number:	YL120	Dimension(LWH):	155.21.5m	Weight:	22T
Certification:	ISO9001:2008	Warranty:	12months	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

gold mining machine for jet suction dredger

Feature

Jet suction dredger is applied for inland waterways, lakes and coastal areas where sand layer is soft for dredging work.
The high pressure water jet will break the sand layer first, then sand pump will suck up the solids and discharge then onshore or to the transportation boat.
Customized according to dredging depth, working capacity and discharge distance.
Main diesel engine provides power to sand dredging pump and auxiliary diesel electricity generator supplies electricity to high pressure water pump, winches and lighting system.

Different type jet suction sand dredger of Parameter
Model	Flow (m³/h)	Power (kw)	Depth (m)	Discharge distance (m)	Suction/Discharge Dia. (inch)
YLSX-500	500	150~300	1~45	≤1000	8/6
YLSX-1000	1000	200~500	1~45	≤1000	10/8
YLSX-2000	2000	300~600	1~45	≤2000	14/12
YLSX-3000	3000	500~900	1~45	≤3000	16/14

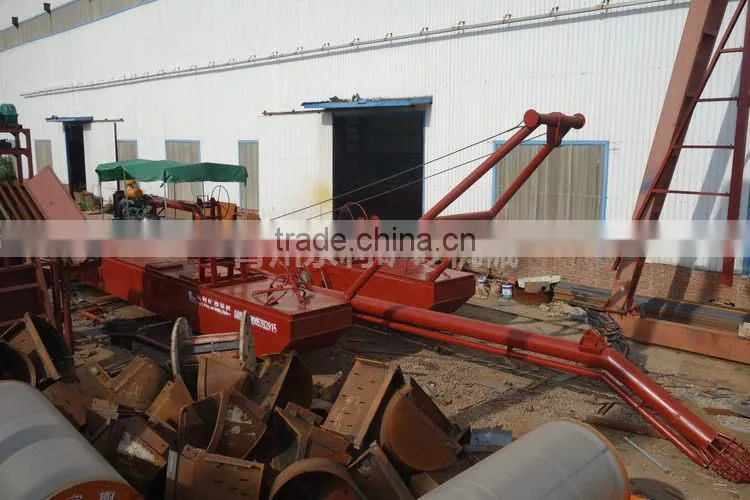

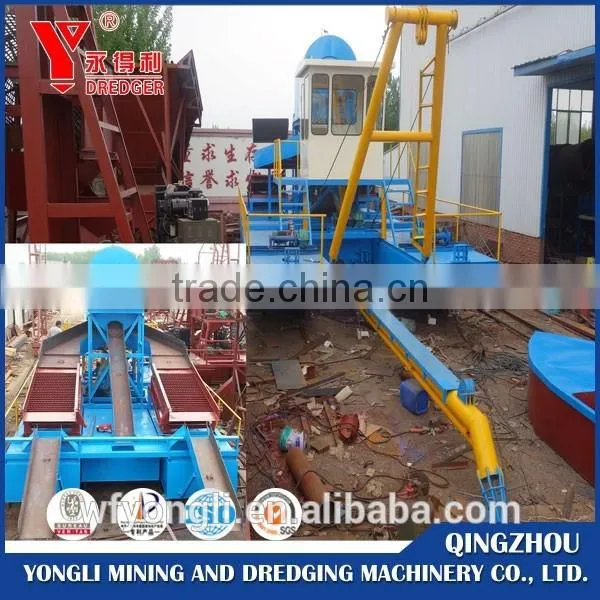

Jet suction gold dredger

Jet suction sand dredger

According to the different requires of customer,our company can product different type of the jet suction/gold dredger.

If you have more requirements and questions, please do not hesitate to contact us, more such as: expecting productivity , dredging depth . We will provide you with quality service and the most satisfactory quote .

Our service

customer visiting our company

Contact Us

Qingzhou Yongli Mining And Dredging Machinery Co., Ltd.: Contact nameMary Liu; Phone86-0536-3836669; AddressHuanglou Industrial Park, Qingzhou
