Qualified Diamond and Gold Mining Equipment Manufacturer
This diamond and gold dredging machine is composed of two classifiers, two gold shaking tables and two suction systems. This building of this dredger is under supervision of our South African customer who you can see in the pictures below. This gold and diamond dredger is mainly used for mine nugget gold, diamond and other precious stones. If your gold is tiny, we will design another dredger for you.
We ensure high efficency and good recovery .
Specification for diamond and gold mining equipment(Just for reference)
NO | Item | Specification | Remarks |
1 Size | Overall Length: | 11m |
|
Hull Length | 10m |
| |
Hull Width | 6.3m |
| |
Hull Depth | 1.25m |
| |
Draft Loaded | About 0.8m |
| |
2 Capacity | Max.Dredging Depth | 10m |
|
Tailings Discharge Distance | 5m |
| |
Suction/Discharge Pipe Diameter | 150mm |
| |
Water Flow | 400m3/h |
| |
Sand Output | 80 m3/h |
| |
3 Diesel Electricity Generator | Model | R4105ZD | Chinese Brand(Weichai) |
Power | 50KW |
| |
Revolution Speed | 1500rpm |
| |
4 Dredging Pump
| Type | 8/6F-G | 2 sets |
Water Flow(Q) | 200m3/h | Total 400m3/h | |
Pump Lift(H) | 10m |
| |
Revolution Speed(n) | 1500r/min |
|
3. Pictures of our diamond and gold mining euqipment

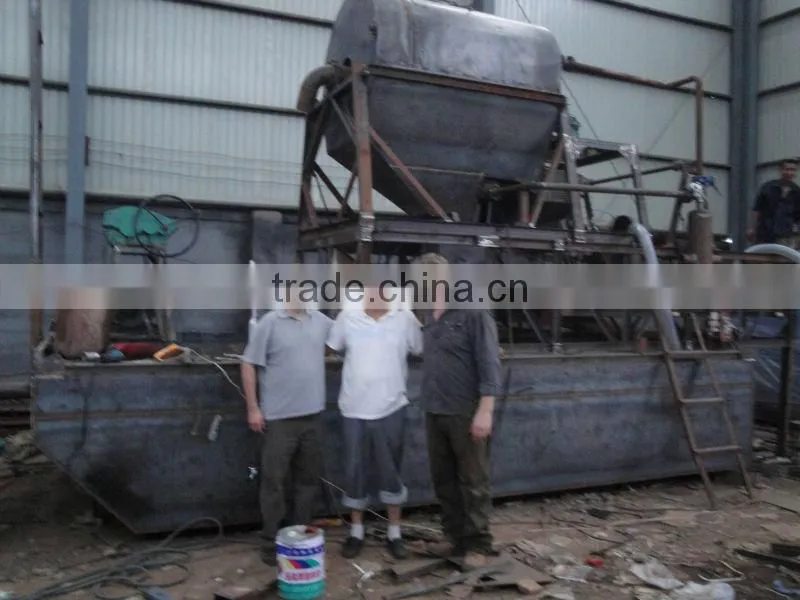

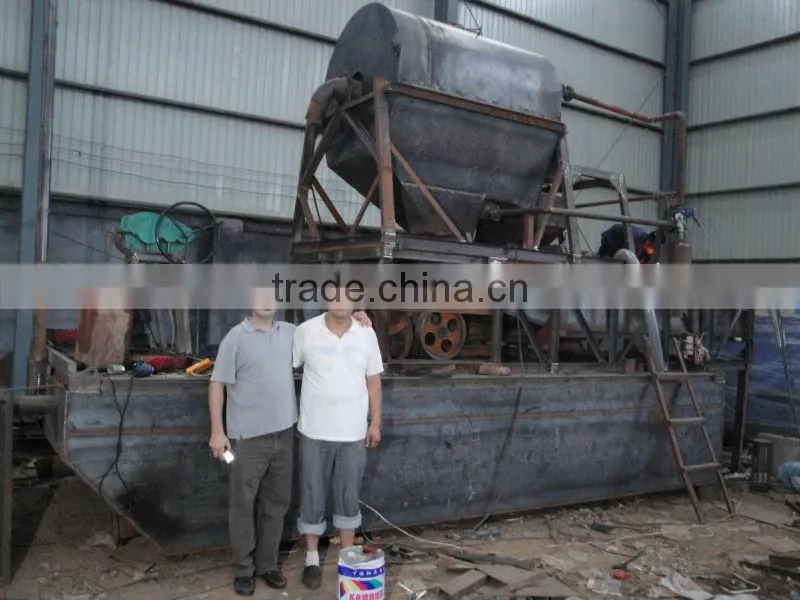

Foreign customer and engineer supervise the building of the gold and diamond dredger

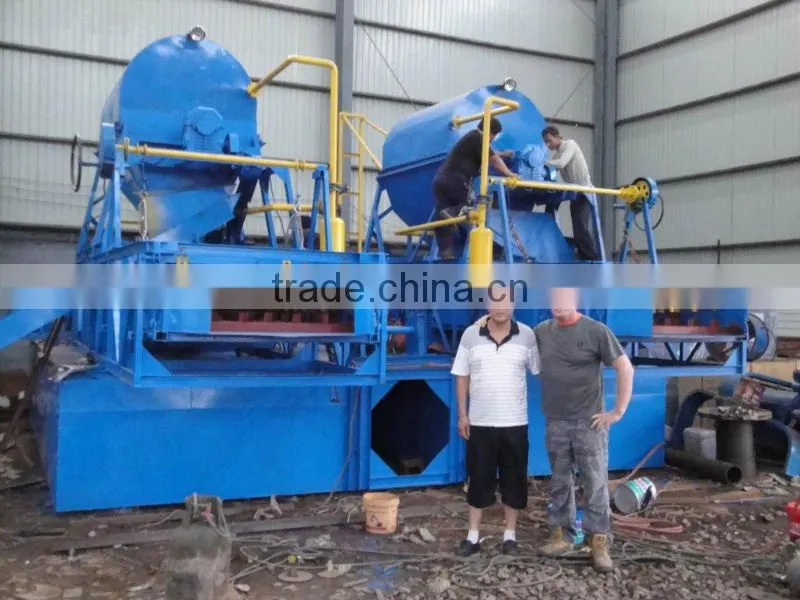

gold mining equipment

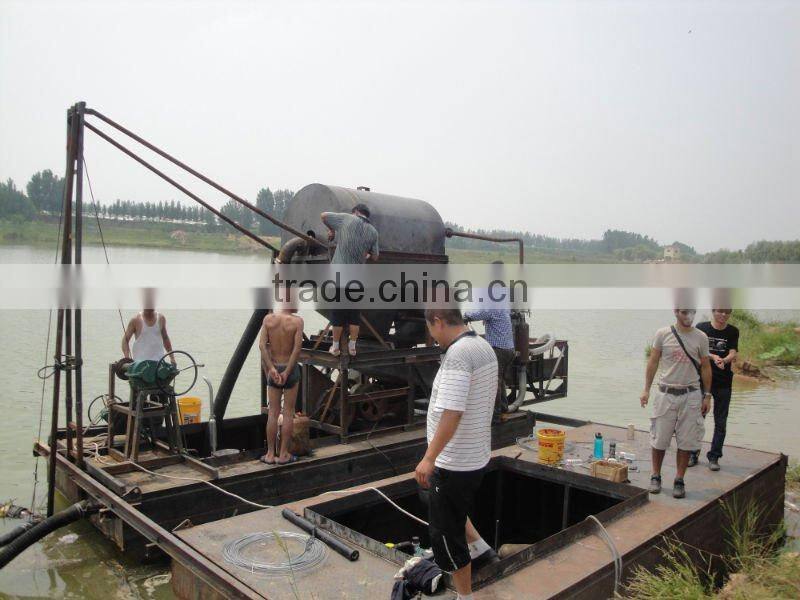

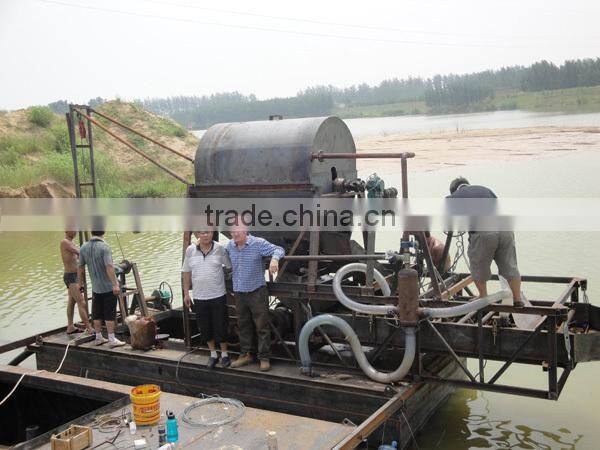

Diamond and gold mining equipment tested in the river
Final test before shippment

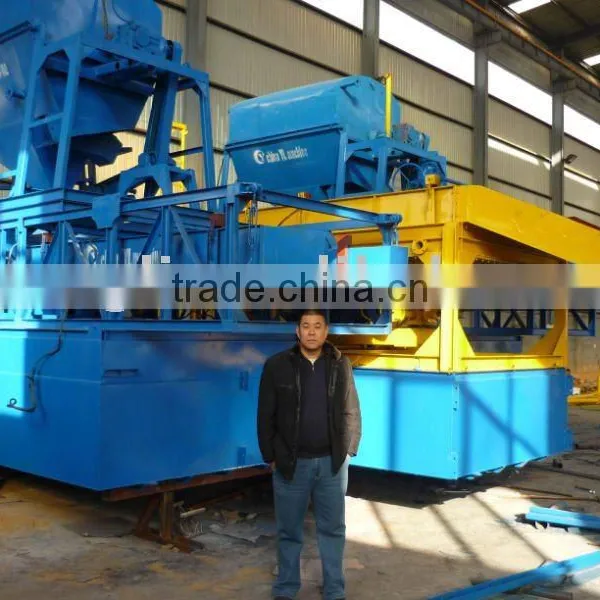

Diamond and gold dredger completed and waiting to be shipped

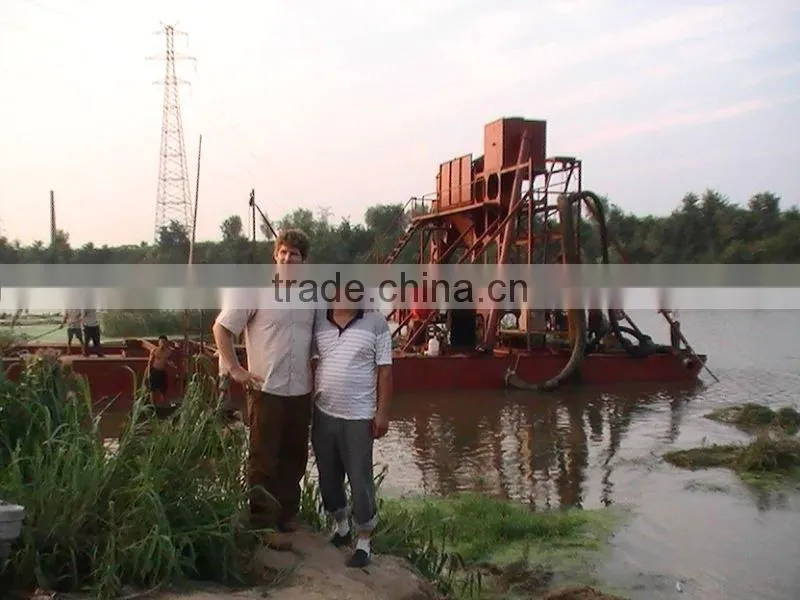

Customer working site
We are the professional gold and diamond mining equipments manufacturer.
Please forward some information relative to your mining project, as soon as we received the range of your interest I shall quote you accordingly
>Type of minerals to be mined?
>Type of deposit (Primary/hard rock, or secondary/placer)?
>Physical characteristics of the ore (sandy, with light clay or heavy clay)?
>Intended feed capacity (Tons/hour)?
>Availability, source and distance of water from your mining area?
>Preferred drive system (Electric Motor, Diesel or Gasoline Engine)?
>Startup schedule of the mining operation?
>Location of your mine (area, country)?
To konw more details , welcome to send email to us.
