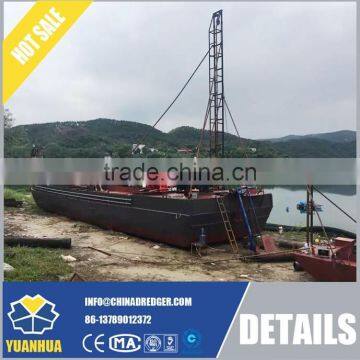

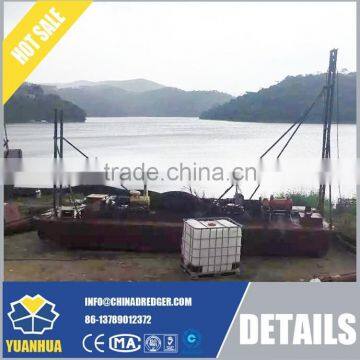

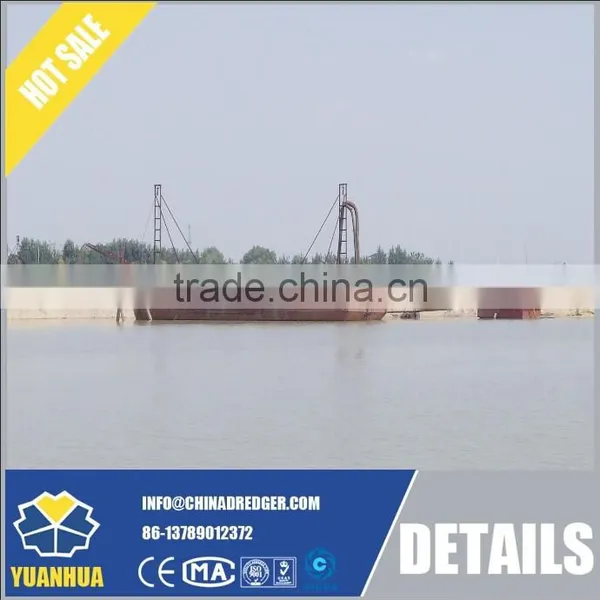

Small Suction Dredger 6 inch | |
Introduction | |
Feature |
Cheap , Small size , easy to transport. Simple to operate and maintain |
Function |
Small sand barge is currently the sand dredging projects, collecting sand industry in using the most flexible convenient work ship.It is the use of pump suction principles through straws ends water cannons spewing out water cannons to bottom sediment impact and the formation of certain concentration mixture,Then by centrifugal pump of blending materials to be delivered through the row tube to accumulation point.The boat equipment, complete floating bodies deft, facilitate transportation, is a kind of high efficiency, low cost of sand mining ship. Is a good sand equipment, for first-time investors trial and investment.
This ship all equipment design for diesel engine drive . |
Application |
Widely used in streams, and small rivers, lakes, reservoirs, depressions sand bait-casting engineering etc |
( Frame struction ) | |
Single hull size (L*W*H) : |
5 * 2.2 * 1 m |
Deck |
Equipped with 1 lifting frame winch , 1 manual transverse winch. |
Material |
Bottom plate : 4mm Anti-corrosion treatment for the bottom for outside shell, Epoxy-polyurethane coating on the surface |
| |
Model |
6 inch |
Material |
Cast iron |
Total flow |
560 m3/h |
Lift head |
15 m |
Inlet dia. |
150 mm |
Outlet dia. |
150 mm |
Max flowing particle size |
65 mm |
Speed |
850 rpm |
Capacity |
56 m3/h ((taking the sand consists 10% of the mixture, the actual capacity differs according to the dredging depth and efficiency.) |
| |
Model |
HF4100ZD (Brand : Yuanhua ) |
Roted power |
40 KW/ 54HP |
Roted speed |
1500 rpm |
| |
Model |
1115 (Brand : Changzhou) |
Roted power |
19 KW/ 26HP |
Roted speed |
2200 RPM |
| |
Model |
4 inch |
Material |
Cast iron |
Total flow |
350 m3/h |
Lift head |
2 m |
Inlet dia. |
100 mm |
Outlet dia. |
100 mm |
| |
Main |
Lifting frame winch 1 set Manual transverse winch 1 set (keep the dredger work stable, and easy to lift) |
| |
Rubber tube 6 inch |
10 m |
Life jacket |
2 set |
Pump case |
1 set |
Impeller |
2 set |
| |
6inch small suction dredger ( not cutter suction dredger )is most simple dredger. Easy to operate and transport. | |
All the technical is based on our normal product (own engines and design). We can customize for you. | |
Qingzhou Yuanhua Machinery Manufacture Co., Ltd. We specialize in dredgers for various industries: Construction, Environmental, Sand Production and Mining Machine.
Produce a variety of series products , such as : cutter suction dredger , bucket chain dredger , underwater pump dredger , self- propelled dredger , gold panning dredger , iron extracting dredger, iron extracting equipments , sand sieving machines, crusher , weathering sand producing lines (break , rinsing and separating ), and various kinds of machines for land and watercourse mining of rare metals.
Own professional R&D department , CAD drawing design center , quality control department and Installation & Adjustment to After Service .
We can customize special dredging and mining equipments according to different environment and customer requirement which can accomplish the whole set of working procedures of filtering , extracting , separating, washing , classifying and put our qualified products directly. Our experienced engineers will work closely with you to customize a best dredging solution for your particular needs.
Established in 1994 , now we have developed a dominant role in the dredge manufacturing industry and expand our market to more Russia , Korea , South Asia , Kazakhstan , South Africa , Middle East etc. Success is based on the best quality , excellent service , good credit, competitive price , the abundant strength
