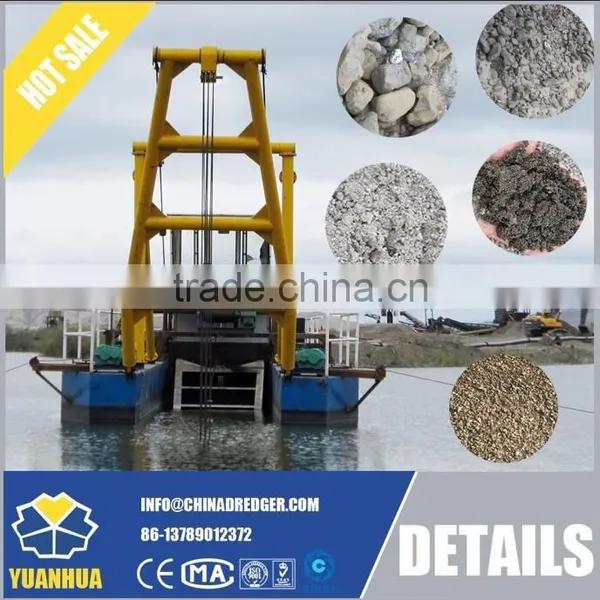

Simple economic large jet suction dredge diesel engine driven mining machine

1. Hull

L×W×H

13.5×4×1.8m ( to be measured from the top point)

Sand  Pumping    Depth

12 m

Cabin Capacity

35 t

Sand Pumping Capacity

55 – 80 cbm / h

Sand Dumping

30 - 50 min / cabin

2. Sand Pump Unit

Pump Model

8”

Fitted Power :

Model-30 Diesel Engine    30HP

3.Water Fetching Pump Unit

Pump Model

4”

Fitted Power

22 HP

4.Sand Dumping Pump Unit

Pump Model

4”

Fitted Power

24 HP

5.Oar Hanging Machine Unit

Length

1.8 m

Impeller diameter :

500 mm

Fitted Power

22 HP

6. Lifting part

Engine

1.5T Diesel Engine

Fitted Power

22 HP

Other

Diesel Engine Share with the water fetching pump.

Note

Quality assurance

Will provide 12-months warranty for the quality of the diesel engines, generators, gear boxes, dredge pumps, Hydraulic system.

FOB

According the real products

MOQ

1 set

Safety Packing

Dismountable into parts , transport by container

Delivery Time

25 – 50 days

How it works:

The Sand Pump pumps the sand into the cabin.

Sand and stones are separated at the same time.

The propeller helps the ship to move near the shore.

Then the Sand Dumping Pump dumps the sand on the shore.

The Sand Pump works under water level which equals to minus suction head.

This won't be affected by atmospheric pressure .

It can achieve maximum dredging depth and productivity.
