small sand dredger Jet suction dredger
USD $35,000 - $80,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Qingdao
- T/T
You May Like
- 2021 Hot newest small 350 1000m3 Cutter Suction Dredger
- Hot Newest Sand Suction Dredging Boat Dredger for Sale Engineers Available to Service Machinery Overseas Customized Provided MAP
- Sand Dredging Machine 2021 Hot Newest Small 12 Inch Cutter Suction Dredger Engineers Available to Service Machinery Overseas MAP
- 2018 Hot newest small 1000m3 Sand Cutter Suction Boat
- Customized small 12 Inch cutter suction river dredging equipment
- 2022 Hot Newest Small 1200m3 Cutter Suction Dredger Manufacturer Sand Pump Suction Dredger Sand Dredging High Gold Recovery Rate
Product Details
Condition: | New | Type: | Other, Cutter Suction Dredger, SAND DREDGER | Place of Origin: | Shandong, China |
Brand Name: | YUANHUA | Model Number: | ClamShell | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

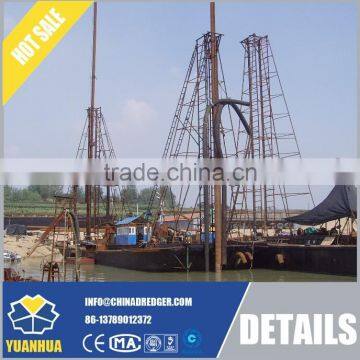

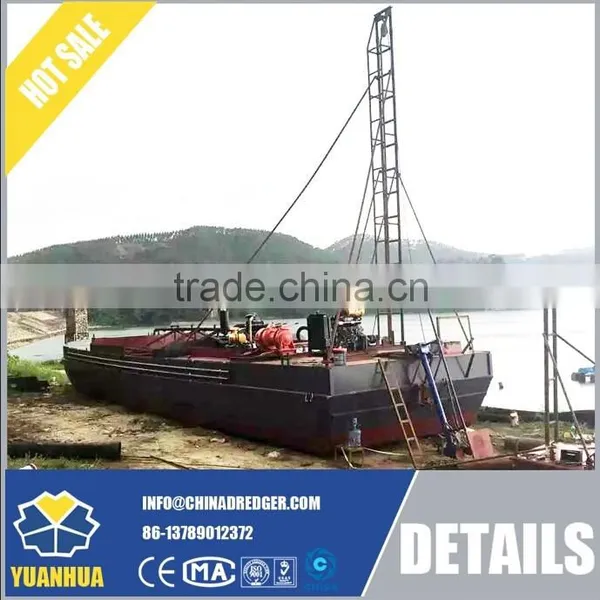

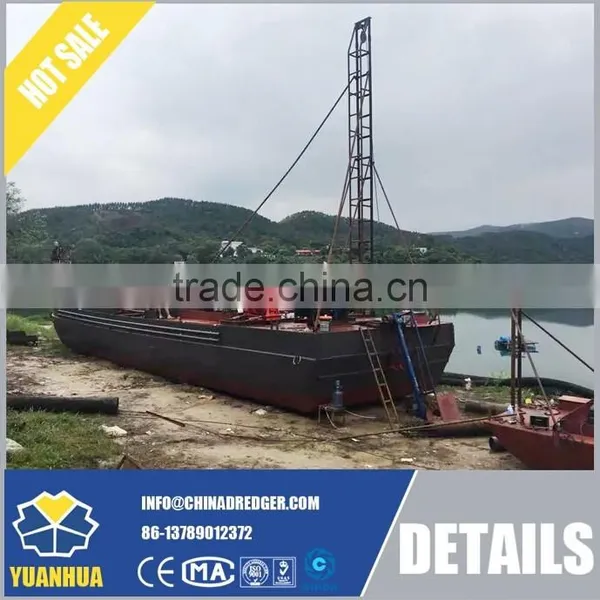

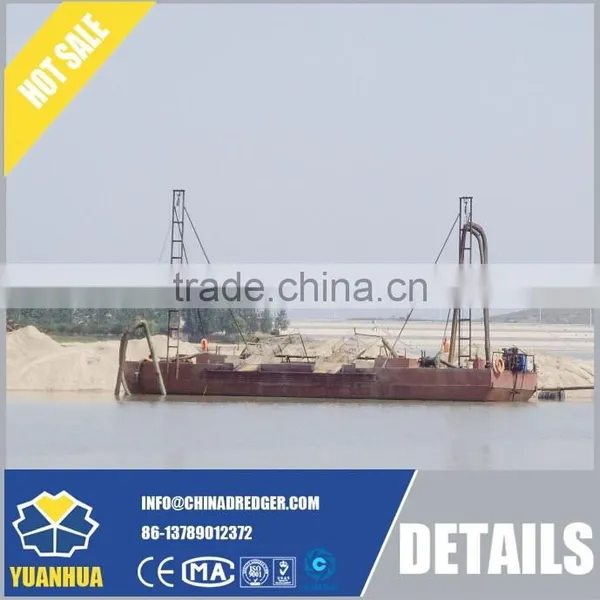

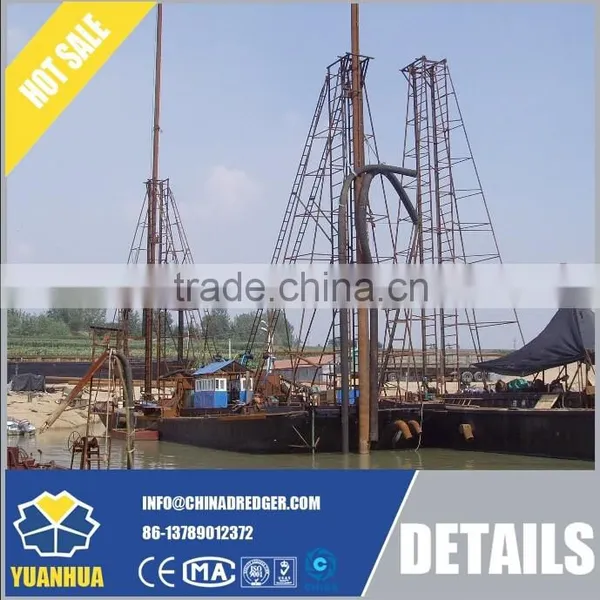

small sand dredger
Mainly used in wide water, river channels and near sea where no other vehicle can enter. |
How it works: |
The Sand Pump pumps the sand into the cabin. |
Sand and stones are separated at the same time. |
The propeller helps the ship to move near the shore. |
Then the Sand Dumping Pump dumps the sand on the shore. |
The Sand Pump works under waterlevel which equals to minus suction head. |
This won't be affected by atmospheric pressure . |
It can achieve maximum dredging depth and productivity. |
Specification |
1.Hull |
L×W×H 13.5×4×1.8m Hight to be measured from the top point |
Sand Pumping Depth: 12m |
Cabin Capacity : 35T |
Sand Pumping Capacity : 55-80 ton/hour |
Sand Dumping : 30-50 min/cabin |
2.Sand Pump Unit |
Pump Model :6" |
Fitted Power :Model-30 Diesel Engine 30HP |
3.Water Fetching Pump Unit |
Pump Model:4" |
Fitted Power : 22HP |
4.Sand Dumping Pump Unit |
Pump Model:4" |
Fitted Power 24HP |
5.Oar Hanging Machine Unit |
Length:1.8m |
Impeller Dia:500mm Fitted Power 22HP |
6.Lifting Wench |
1.5T Diesel Engine Powered Wench |
Fitted Power 22HP Diesel EngineShare with the Water Fetching Pump ) |
