High-Quality a Type Screen Pinion Used for Modern Agricultural Greenhouse
US$ 8.06 - 10.84
MOQ: 10 Kilograms
Key Specifications
Get Latest Price
Size:
Large
Type:
Other, Multi-Span Agricultural Greenhouses, Screen Pinion
Cover Material:
Other, PC Sheet, Aluminum, Hot-DIP Galvanized
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Agricultural Greenhouse in Film Channel With Better MaterialUS$ 3 - 5MOQ: 10 Kilograms -
Middle Gutter Bracket for Venlo GreenhouseUS$ 3.78 - 4.72MOQ: 100 Pieces
-
B Type Screen Pinion in Greenhouse Screening SystemUS$ 45 - 65MOQ: 1000 Square Meters
-
Multi Span Polycarbonate Sheet for Commercial GreenhouseUS$ 45 - 65MOQ: 1000 Square Meters
-
Galvanized Steel Frame for Commercial Greenhouse KitUS$ 45 - 65MOQ: 1000 Square Meters
Size
Large
Type
Other, Multi-Span Agricultural Greenhouses, Screen Pinion
Cover Material
Other, PC Sheet, Aluminum, Hot-DIP Galvanized
Model Number
Greenhouse Accessories
Place of Origin
Shandong, China
Brand Name
YUANHUA
Material
Other, Galvanized
Product Description
A Type Screen Pinion
This kind of screen pinion is in high quality and better material. It can betterly play a role in driving the rack in screening system without any other difficulties. We can provide screen pinion that you want. Its speed ratio and
This kind of screen pinion is in high quality and better material. It can betterly play a role in driving the rack in screening system without any other difficulties. We can provide screen pinion that you want. Its speed ratio and
stroke are comparatively in accordance with the quality standard. Besides, it suitable for large area greenhouse
shading.
Screen system has high efficient shading performance and can shade over sunlight to prevent crops from burned
Screen system has high efficient shading performance and can shade over sunlight to prevent crops from burned
by strong sunlight. Because of stopping large amount of sunlight into the greenhouse, it can efficiently decrease the acculation of inside heat. Besides, it can satisfy different demand of different crops for sunlight through choosing
curtains with different shading rate. Therefore, screen system has the function of adjusting sunlight and cooling. Moreover, it has the function of preventing hail. Today, it mainly depends on the motor intelligent control to realize
open and close of itself.
A type screen pinion working with the relative rack is often chosed as the driving ways for screen driving system.
A type screen pinion working with the relative rack is often chosed as the driving ways for screen driving system.
It runs stable and reliable. It can help the whole greenhouse realizing openning and closing freely. The following form indicates clearly all of these.
Function: driving the rack in screening system.

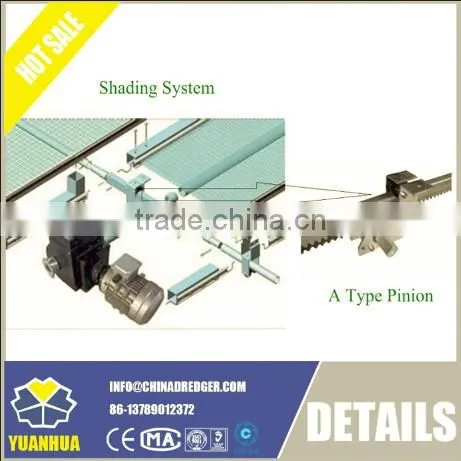

A Type Pinion and The Other Important Parts in Screen System
Product Advantages:
1. Quality assurance, reasonable price;
2. High production accurancy;
3. Premium brand, reliable quote.
About Us
The products of our Greenhouse have high quality and favorable price, with high-quality materials, superb technology and complete types, which are in accordance with the National Standard. The products is in high production accuracy, and they have good performance and a long servicing life. We sell our products to the world
Function: driving the rack in screening system.
A Type Pinion and The Other Important Parts in Screen System
| Item | Name | Specification | Application Range | Notes |
| 1 | Driving Shaft | 1″,5/4″ | ||
| 2 | Gear Motor | Stroke: 5.2rpm | ||
| 3 | Chain Coupling | 1″,5/4″ | 1″,5/4″Driving Shaft | |
| 4 | Welding Joint | 1″,5/4″ | 1″,5/4″Driving Shaft | |
| 5 | A Type Pinion Bracket | Speed Ratio=1.8:1 | ||
| 6 | Rack | Stroke 3~5m | ||
| 7 | Elastic Round Pins | 6×28mm | ||
| 8 | Screen Rack-Pulling Rod Joint | 27,32 | 27 Pulling Rod32 Pulling Rod | |
| 9 | Bolt | M8 | ||
| 10 | Pulling Rod | 27×1.5 mm32×1.5mm | ||
| 11 | Support Wheel | Single or Double Wheels | ||
| 12 | Six Head Self Drilling Screws | ST5.5×25 | ||
| 13 |
Pulling Rod-Guide Bar Connecting Piece |
27mm,32mm | 27 Pulling Rod32 Pulling Rod | |
| 14 | T Type Bolt | M6×75(Anti-release Nuts) | ||
| 15 | Driving Edge Aluminum Profile | |||
| 16 | Spring |
2.0mm Plastic Coated, L=2m |
Fixing Shading Curtain | |
| 17 | Shading or Insulation Curtain | |||
| 18 | A Type Pinion Bracket Pad | 46.5×3 | ||
| 19 | Bolt | M8 |
Product Advantages:
1. Quality assurance, reasonable price;
2. High production accurancy;
3. Premium brand, reliable quote.
About Us
The products of our Greenhouse have high quality and favorable price, with high-quality materials, superb technology and complete types, which are in accordance with the National Standard. The products is in high production accuracy, and they have good performance and a long servicing life. We sell our products to the world
and receive the praise and reliance from a majority of customers, attracting many new customers. The products have been exported to US, the United Arab Emirates, India and other countries, leaving an excellent impression to foreign customers. The company's construction team is a team with high quality and strong professional, and has successfully constructed intelligent greenhouse, Venlo glass greenhouse,vegetable and flower greenhouse, and many other projects.
If you want to know more about it, please contact as the following:
