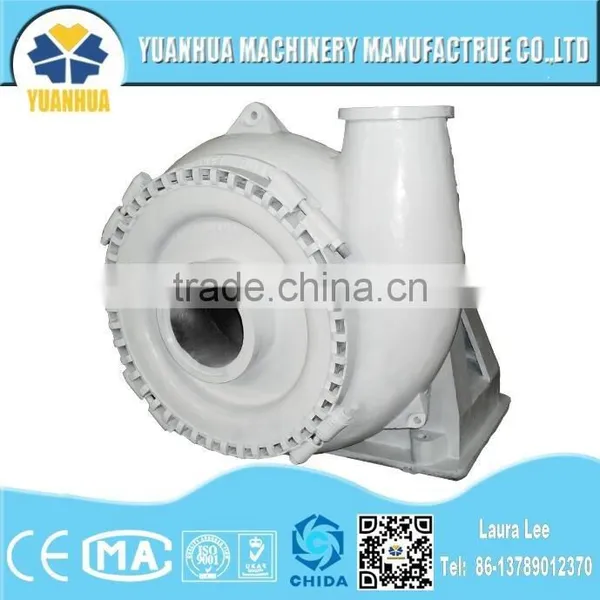

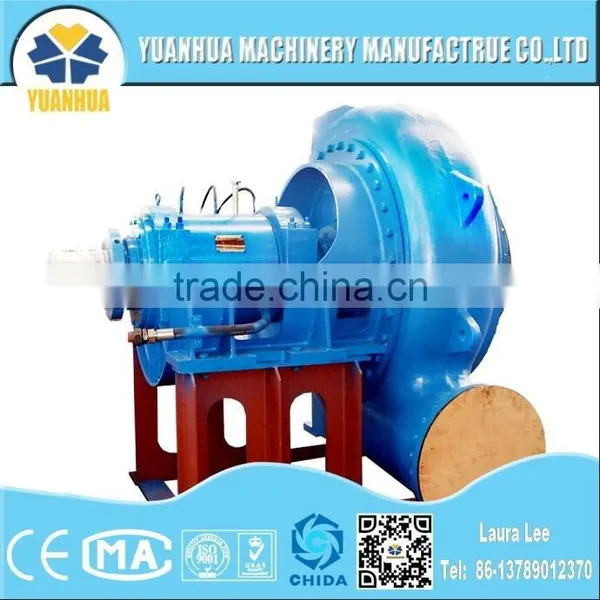

Help CenterAbrasive and Corrosive Resistant Slurry Pump, Sand Mining Machine
Related Products
-
Yuanhua Submersible Slurry Pump for Submersible Pump Dredger UseUS$ 20,000 - 90,000MOQ: 1 Set -
Yuanhua Submersible Slurry Pump for Sand Dredger, CentrifugalUS$ 10,000 - 90,000MOQ: 1 Set
-
Yuanhua Submersible Slurry Pump for Submersible Sand Dredger UsingUS$ 10,000 - 90,000MOQ: 1 Set
-
Yuanhua Submersible Slurry Pump for Sand Dredger UsingUS$ 10,000 - 90,000MOQ: 1 Set
-
Yuanhua Submersible Slurry Pump for Sand Dredger, Sand Mining MachineUS$ 10,000 - 90,000MOQ: 1 Set
| MODEL | FLOW m3/h | HEAD m | MOTOR POWER kw | SPEED | EFFCIENCY | MAX PARTICLE | OUTPUT DIAMETER mm |
|
1 | YHQ30-30-7.5 | 24 | 31 | 7.5 | 1460 | 43 | 13 | 80 | √ |
30 | 30 | ||||||||
36 | 29 | ||||||||
2 | YHQ50-21-11 | 35 | 22 | 11 | 1460 | 48 | 21 | 100 |
|
50 | 21 | ||||||||
60 | 20 | ||||||||
3 | YHQ100-16-11 | 70 | 20 | 11 | 1460 | 55 | 21 | 100 | √ |
100 | 16 | ||||||||
120 | 15 | ||||||||
4 | YHQ50-26-15 | 35 | 29 | 15 | 1460 | 48 | 13 | 100 | √ |
50 | 26 | ||||||||
60 | 24 | ||||||||
5 | YHQ60-30-15 | 42 | 33 | 15 | 1460 | 50 | 13 | 100 | √ |
60 | 30 | ||||||||
72 | 27 | ||||||||
6 | YHQ100-18-15 | 70 | 20 | 15 | 1460 | 55 | 21 | 100 | √ |
100 | 18 | ||||||||
120 | 15 | ||||||||
7 | YHQ150-15-15 | 105 | 17 | 15 | 1460 | 56 | 21 | 150 | √ |
150 | 15 | ||||||||
180 | 13 |
Widely application: They are designed for handling abrasive, high density slurries in the metallurgical, mining .
Available to use multiple series, to satisfy the long-distance transmission requirements
High efficiency hard alloy, and low NPSH
To meet the different operation conditions, adopted the brief type structure bearing parts, selected high bearing capacity design, alloy bearing grease lubrication oil.
Through adjusting the clearance between protection board and impeller, ensuring the pump efficient operation,
Using packing seal, impeller sealing , container type mechanical seal to adapt to different operating mode requirement.
Our sand dredging machine are designed by senior engineer, who have specialized in shipbuilding and dredging work for many years, to guarantee they are well-designed and practical.
