Help Center2015 Hot Sale Floaters for UHMWPE Dredging Pipe
Related Products
-
Industrial Centrifuge MachineUS$ 20,000 - 35,000MOQ: 1 Set -
Yuanhua Mining Machine Continuous CentrifugeUS$ 20,000 - 35,000MOQ: 1 Set
-
Centrifugal Machine Profession Dredger MachineUS$ 20,000 - 35,000MOQ: 1 Set
-
Jaw CrusherUS$ 10,000 - 300,000MOQ: 1 Set
-
Mud Pump UnitUS$ 10,000 - 1,000,000MOQ: 1 Set

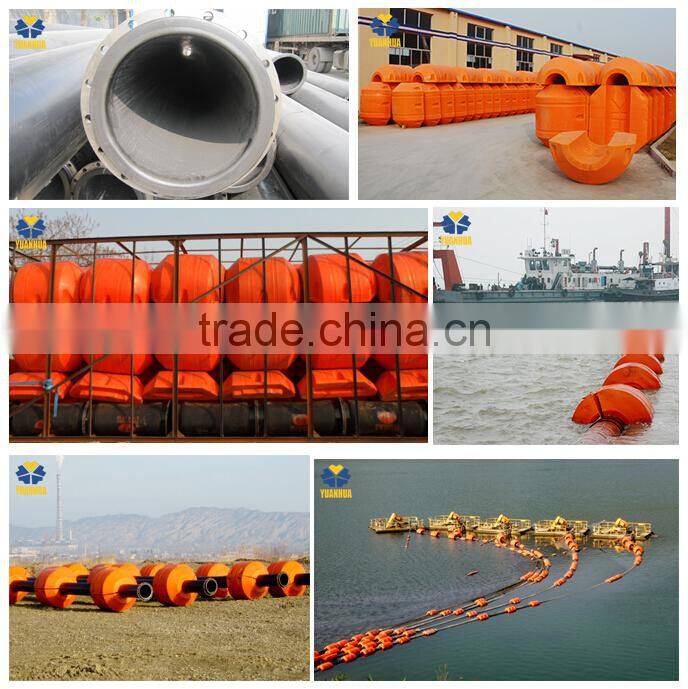

Floaters and UHMWPE pipe for dredger / Dredger components

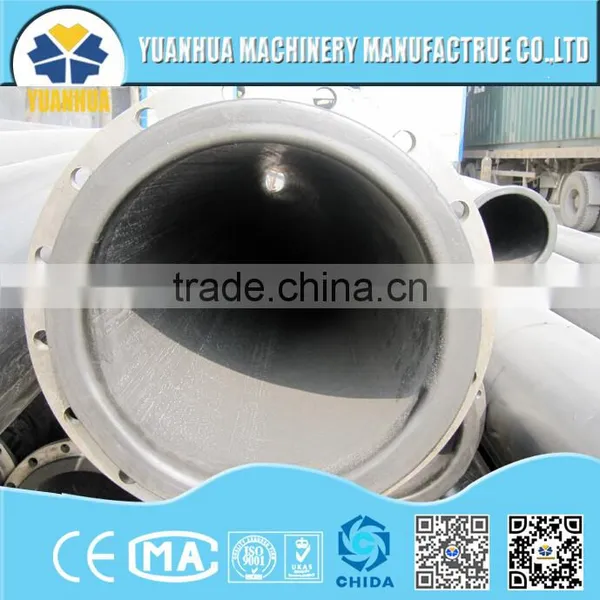

UHMWPE Pipes
Ultra-high molecular weight polyethylene (UHMWPE) pipe characteristics
1. Extremely high wear resistance
2. Very high impact resistance
3. Corrosion resistance
4. Good self-lubrication
5. The unique resistance to low temperature
6. Not easy to form dirt
7. Long life-span
8. Easy installation
9. Easy to do mechanical working, and can be colored.

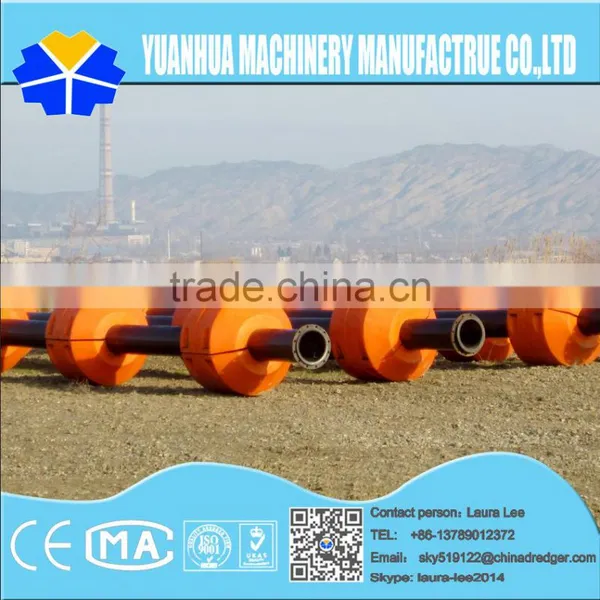

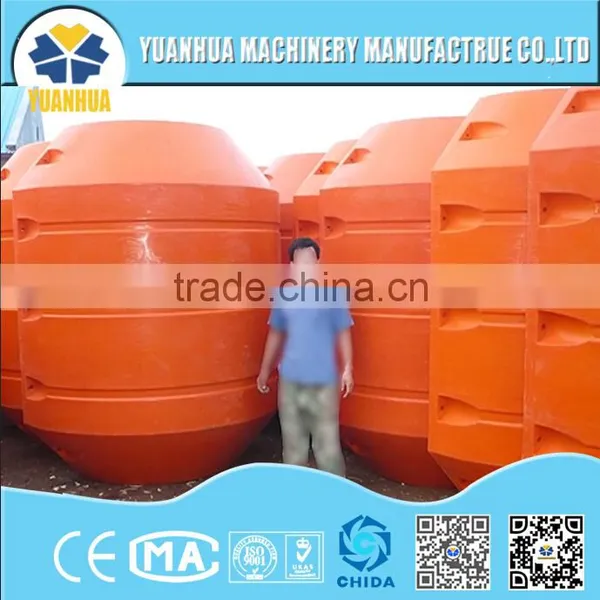

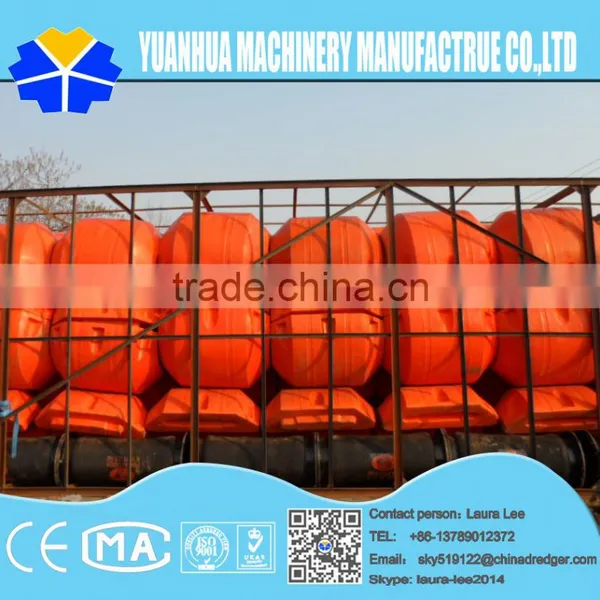

Floater features:
1.Good flexibility,excellent impact resistance, particularly suitable for constructions in open sea.
2. Light weight,easy to install and handle, lower costs for moving.
3. Higher corrosive resistance,longer working life, 3 times longer than steel floaters.
4. Lower costs,the cost performance is better than steel floaters.
Applications:
1.Used in dredging sand pipeline;
2.It can be used in dredger, dredging pipe etc. in the sea, lake or river;

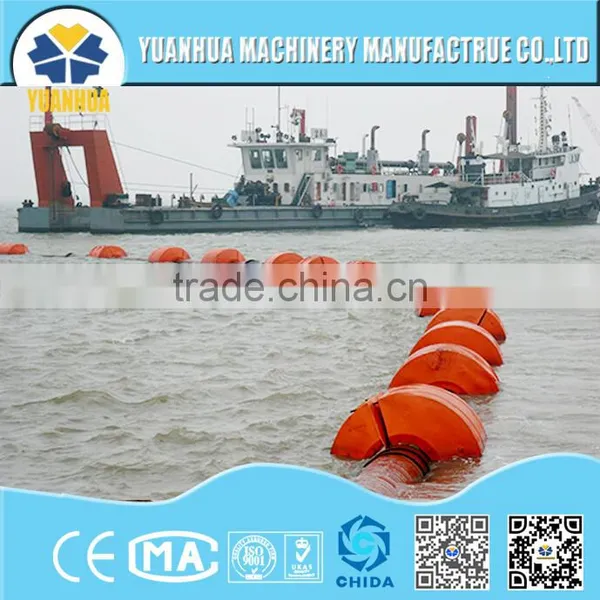

3.Particular used in laying the pipes on the water used in dredger project.
| Pipe OD(mm) | Floater ID(mm) | Floater OD(mm) | Floater Lengt (mm) | Floater Thickness(mm) | Net Buoyance(kg) | Floater Weight(kg) |
| 205 | 220 | 500 | 800 | 7 | 200 | 16 |
| 273 | 300 | 700 | 1200 | 7 | 420 | 43 |
| 350 | 375 | 1100 | 1100 | 7 | 920 | 72 |
| 400 | 414 | 1100 | 1200 | 8 | 1020 | 76 |
| 426 | 430 | 1200 | 1200 | 8 | 1200 | 93 |
| 450 | 480 | 1300 | 1300 | 8 | 1500 | 116 |
| 500 | 580 | 1400 | 1500 | 9 | 2219 | 170 |
| 600 | 630 | 1400 | 1700 | 11 | 2400 | 182 |
| 630 | 630 | 1400 | 1700 | 11 | 2400 | 182 |
| 650 | 680 | 1480 | 1800 | 11.5 | 2930 | 210 |
| 700 | 730 | 1600 | 1900 | 12 | 3593 | 230 |
| 750 | 780 | 1600 | 2000 | 13 | 3800 | 245 |
| 800 | 830 | 1800 | 2000 | 14 | 4800 | 310 |
| 850 | 880 | 1800 | 2200 | 15 | 5140 | 380 |
| 900 | 940 | 2200 | 2500 | 16 | 8180 | 420 |
Qingzhou Yuanhua Machinery Manufacture Co., Ltd. We specialize in dredgers for various industries : Construction ,
Environmental , Sand Production and Mining Machine.

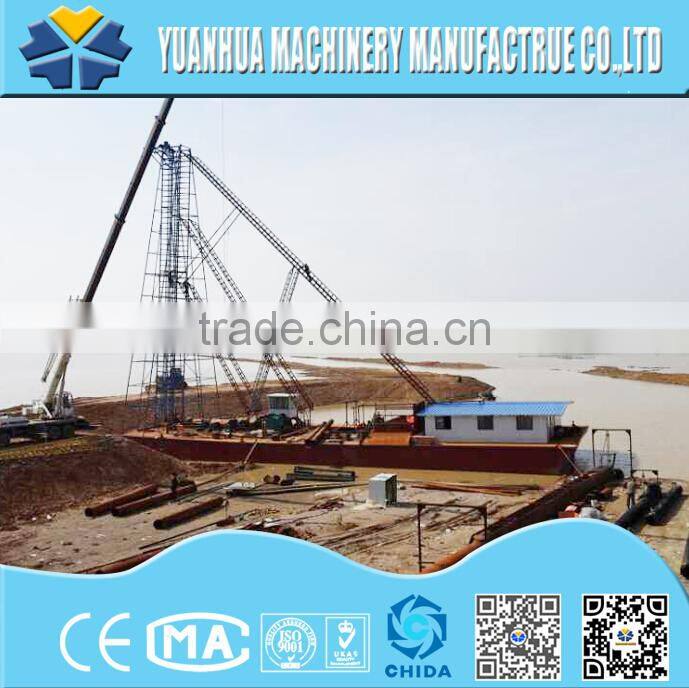

Produce a variety of series products , such as : cutter suction dredger , bucket chain dredger , submersible pump dredger ,
self-propelled dredger , gold panning dredger , iron extracting dredger, iron extracting equipments , sand sieving machines,

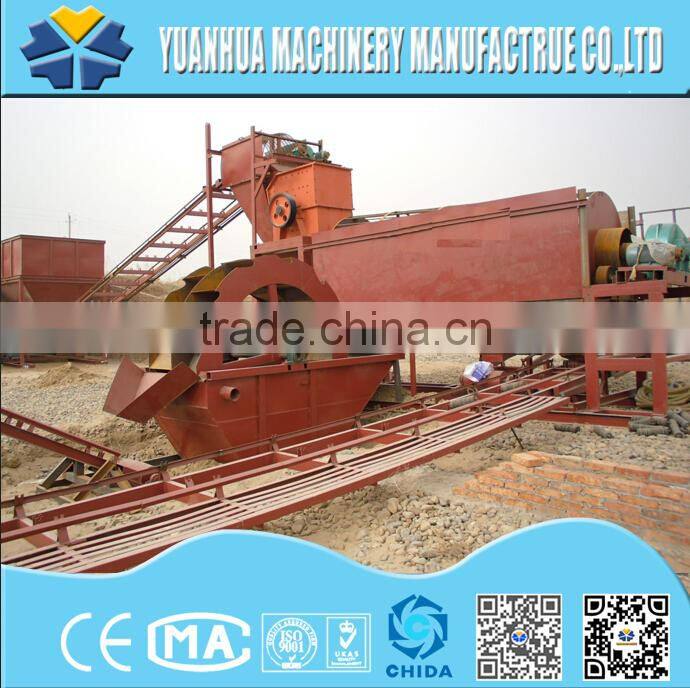

crusher , weathering sand producing lines (break , rinsing and separating ), and various kinds of machines for land and
watercourse mining of rare metals.
Own professional R&D department , CAD drawing design center , quality control department and Installation &
Adjustment to After Service .
We can customize special dredging and mining equipments according to different environment and customer requirement
which can accomplish the whole set of working procedures of filtering , extracting , separating, washing , classifying and
put our qualified products directly. Our experienced engineers will work closely with you to customize a best dredging
solution for your particular needs.
Established in 1994 , now we have developed a dominant role in the dredge manufacturing industry and expand our market
to more Russia , Korea , South Asia , Kazakhstan , South Africa , Middle East etc. Success is based on the best quality ,
excellent service , good credit, competitive price , the abundant strength.
Quality Warranty :
Will provide 12 months warranty for the quality of the main parts: Diesel engines, generators, gear boxes, dredge pumps,
Hydraulic system.
1) 12 months manufacturing warranty on all new installed component parts.
2) 12 months warranty on hull and all fabricated parts.
3) Wearing parts are not included.
During the warranty period , We will provide free parts and on site technical guidance . After the warranty period, We
willprovide free and on site technical support quickly, if the ship owner need. But if the dredger need replacement parts,
the cost paid by the owner.
Delivery :
The euipments are detachable, so it is easy to transport when delivering or moving from one working site to another.
Training and installation :
Our experienced installers will arrive at the construction site to guide, teach and training your staff to debug and operate
the dredger until they can operate skillfully by themselves.
