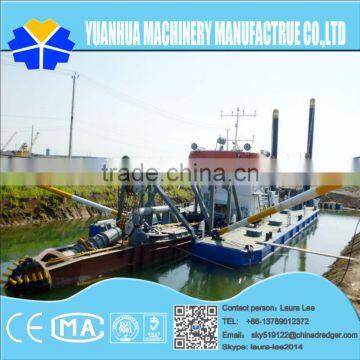

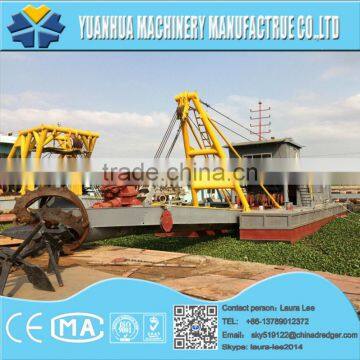

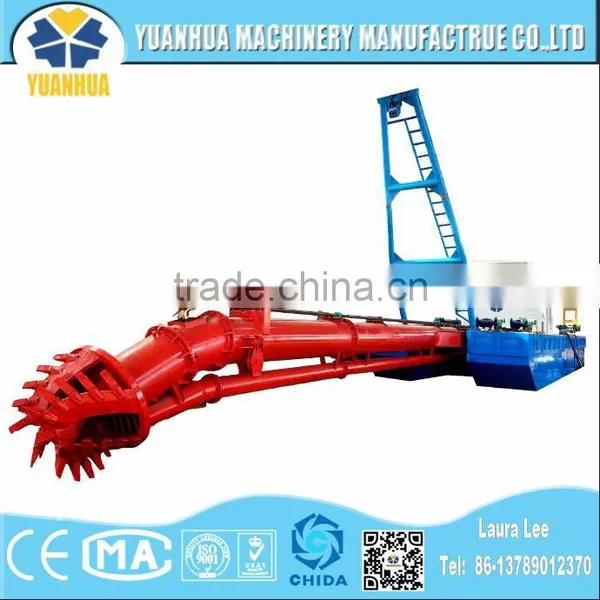

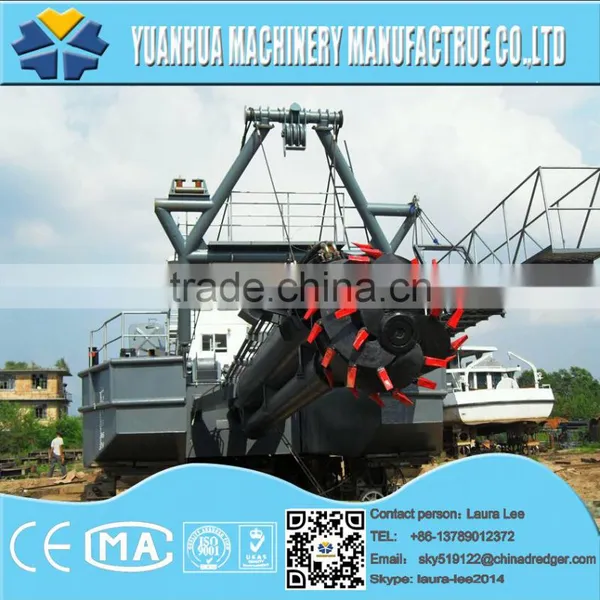

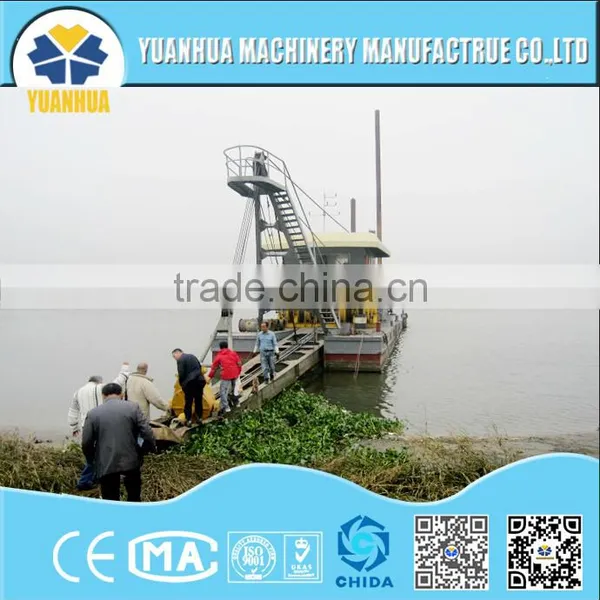

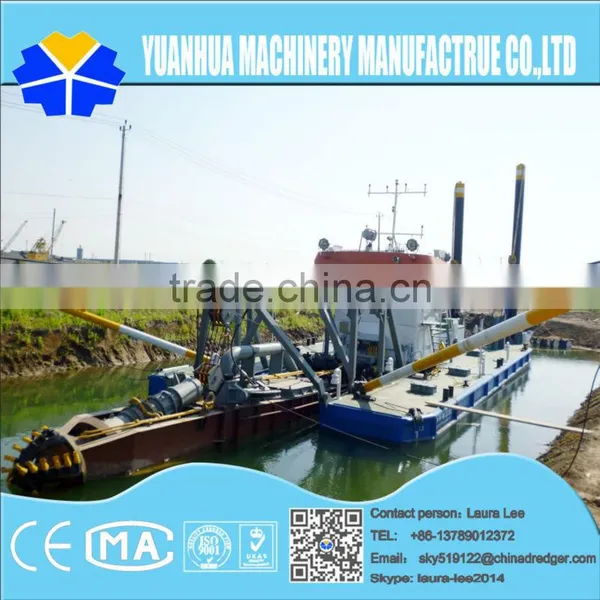

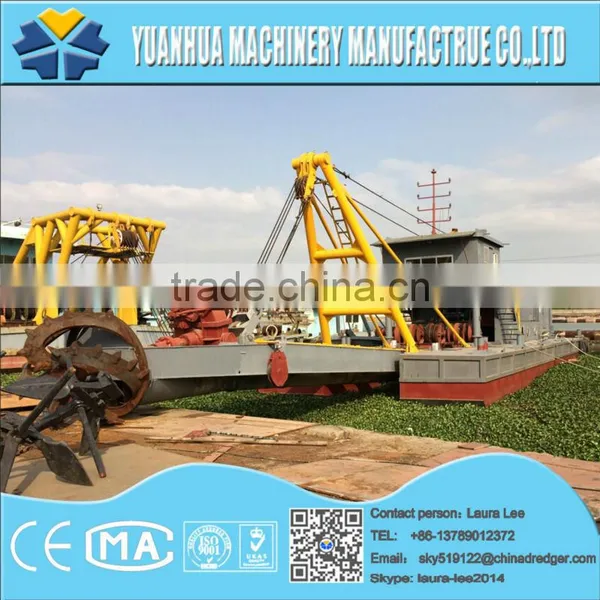

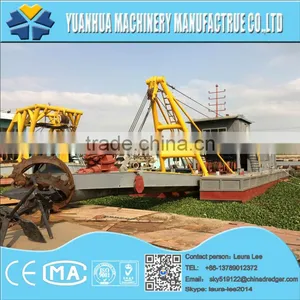

Hydraulic River Sand Dredger for Egypt River mining
- 10 Unit / Units per Month
- qingdao
- T/T L/C D/P D/A Credit Card PayPal
- bucket wheel excavator 2000m3/h-7000m3/h
- bucket wheel excavator 500m3/h-7000m3/h
- bucket wheel excavator 500tph-2500tph
- 2021 Hot newest small 350 1000m3 Cutter Suction Dredger
- Hot Newest Sand Suction Dredging Boat Dredger for Sale Engineers Available to Service Machinery Overseas Customized Provided MAP
- Sand Dredging Machine 2021 Hot Newest Small 12 Inch Cutter Suction Dredger Engineers Available to Service Machinery Overseas MAP
Product Details
Condition: | New | Type: | Cutter Suction Dredger | Power Type: | Diesel |
Dredging Depth: | 13.5 m | Draught: | 70 cm | Place of Origin: | Shandong, China |
Brand Name: | YUANHUA | Model Number: | YHCSD100 | Dimension(L*W*H): | 25*4.8*1.3m |
Weight: | Dredger Size | Certification: | ISO9001 | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Hydraulic cutter suction dredger for Egypt River mining
Cutter suction dredger
Dredging and sand mining is currently the most widely used industry engineering vessels, it is the use of pump priming theory, by rotating reamer straw end of the river's sediment formed by cutting of a certain concentration of
the mixture, and then by the pump the mixed material through centrifugal exhaust pipe exhaust to accumulate points and it's mining, transportation once completed, can achieve the depth of excavation, long distance transport, is an
efficient low cost dredger is a good underwater excavation mechanical equipment cutter suction dredger from the power equipment division: two forms of diesel power and electric power.
Power dredger suitable for industrial and mining enterprises and other power to facilitate dredging.
Sand. Mining engineering. Their low cost and easy to maintain.
Diesel powered dredger suitable for remote areas or without dredging, sand mining with the
construction of electric power.
Of hydraulic cutter suction dredger and mechanical cutter suction dredger from the executive driven approach.
Dredger Application
Sand Dredge Mining Environmental Building Industry
Dredger Advantages
1.Hydraulic transmission, light and flexible operation
2.Water can be self-propelled, eliminating the need for towing, improved mobility
3.Simple structure, beautiful crisp
Parameter for Suction Dredger YHCSD series.
DESCRIPTIONS | ||||||||
Model | YHCSD60 | YHCSD150 | YHCSD200 | YHCSD250 | YHCSD350 | YHCSD450 | YHCSD600 | |
Dredging depth (m) | 6m | 9 | 10 | 12 | 15 | 15` | 15 | |
Capacity (m³/h)) | 60 | 150 | 200 | 250 | 350 | 450 | 600 | |
Displacement Distance(m) | 300 | 500 | 1000 | 1000 | 2000 | 2000 | 2000 | |
Overall length (m) | 15m | 23 | 25 | 28 | 35 | 38 | 38 | |
Overall width(m) | 3.5m | 4.5m | 5 | 5.5 | 7 | 7.5 | 7.5 | |
Depth(m) | 1m | 1.2m | 1.5 | 1.6 | 2 | 2.2 | 2.3 | |
Draft loaded (m) | 0.5m | 0.7m | 0.9 | 0.9 | 1.3 | 1.45 | 1.5 | |
Floating number | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
Water flow (m³/h) | 300-500 | 700-900 | 1100-1300 | 1500-1800 | 2600-3000 | 3200-3800 | 3600-4000 | |
Stoke (m) | 45 | 55 | 55 | 60 | 65 | 65 | 65 | |
Rotation Speed (rpm) | 900 | 750 | 750 | 700 | 550 | 500 | 450 |
The parameters are just for reference. Customized specification is available.
1. Design
We have built good relationship with many famous domestic ship design institutes.The dredgers are
designed by senior engineer, who have specialized in dredging machine building and hydraulic system
with many years.
2. Skilled workers & ex-work testing
Every cutter suction dredger is built by skilled workers and inspected strictly to assure the high quality and
durability. Each finished dredger will be tested in our testing center to make sure it works smoothly when
delivering to customers.
3. Cummins Engine
The dredgers are equipped with world famous powerful Cummins engine, which are famous for its
durability, lower oil consumption, standardized accessories and easy maintenance.
4. Pump
Australia Warman Tecnology, best pump in China
5. Hydraulic system
Hydraulic system: the most important parts of cutter suction dredger . The hydraulic system requirements
are very high and strict; it’s the main artery of the entire dredger. Lateral traction winches, lifting winch
and cutter head of the dredgers are driven by hydraulic motors.
An integral hydraulic system includes hydraulic oil tanks, hydraulic pump, hydraulic valve manifold,
solenoid valve, hydraulic pipes, hydraulic components, electrical actuator and so on.
6. Detachable Structure
The dredgers are detachable, so it is easy to transport when delivering or moving from one working site to
another.
7. Assembly & Staff Training
Our experienced installers will arrive at the construction site to guide, teach and training your staff to debug
and operate the dredger until they can operate skillfully by themselves.
Qingzhou Yuanhua Machinery Manufacture Co., Ltd. We specialize in dredgers for various industries : Construction ,
Environmental , Sand Production and Mining Machine.
Produce a variety of series products , such as : cutter suction dredger , bucket chain dredger , submersible pump dredger ,
self- propelled dredger , gold panning dredger , iron extracting dredger, iron extracting equipments , sand sieving
machines, crusher , weathering sand producing lines (break , rinsing and separating ), and various kinds of machines for
land and watercourse mining of rare metals.
Own professional R&D department , CAD drawing design center , quality control department and Installation &
Adjustment to After Service .
We can customize special dredging and mining equipments according to different environment and customer requirement
which can accomplish the whole set of working procedures of filtering , extracting , separating, washing , classifying and
put our qualified products directly. Our experienced engineers will work closely with you to customize a best dredging
solution for your particular needs.
Established in 1983 , now we have developed a dominant role in the dredge manufacturing industry and expand our market
to more Russia , Korea , South Asia , Kazakhstan , South Africa , Middle East etc. Success is based on the best quality ,
excellent service , good credit, competitive price , the abundant strength.
Quality Warranty :
Will provide 12 months warranty for the quality of the main parts: Diesel engines, generators, gear boxes, dredge pumps,
Hydraulic system.
1) 12 months manufacturing warranty on all new installed component parts.
2) 12 months warranty on hull and all fabricated parts.
3) Wearing parts are not included.
During the warranty period , We will provide free parts and on site technical guidance . After the warranty period, We will
provide free and on site technical support quickly, if the ship owner need. But if the dredger need replacement parts, the
cost paid by the owner.
Delivery :
The cutter suction dredgers are detachable, so it is easy to transport when delivering or moving from one working site to
another.
Training and installation :
Our experienced installers will arrive at the construction site to guide, teach and training your staff to debug and operate
the dredger until they can operate skillfully by themselves.
