Mechanical Cutter Suction and Dustpan Suction Dredge
USD $126,000 - $860,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Qingdao
You May Like
- bucket wheel excavator 2000m3/h-7000m3/h
- bucket wheel excavator 500m3/h-7000m3/h
- bucket wheel excavator 500tph-2500tph
- 2021 Hot newest small 350 1000m3 Cutter Suction Dredger
- Hot Newest Sand Suction Dredging Boat Dredger for Sale Engineers Available to Service Machinery Overseas Customized Provided MAP
- Sand Dredging Machine 2021 Hot Newest Small 12 Inch Cutter Suction Dredger Engineers Available to Service Machinery Overseas MAP
Product Details
Condition: | New | Type: | Other, Cutter Suction Dredger, DREDGER | Place of Origin: | Shandong, China |
Brand Name: | YUANHUA | Model Number: | CSD |
Product Description

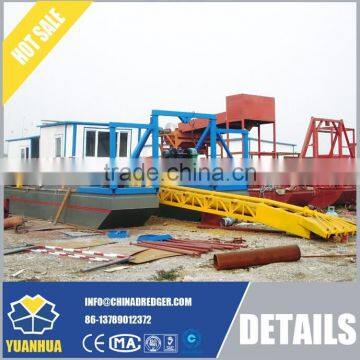

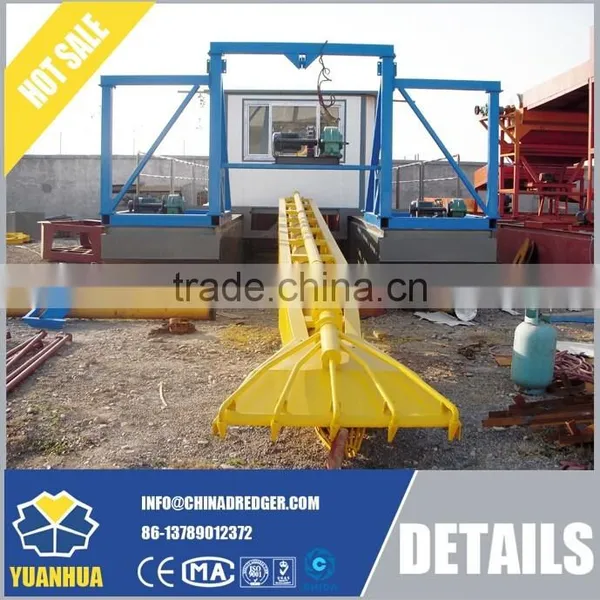

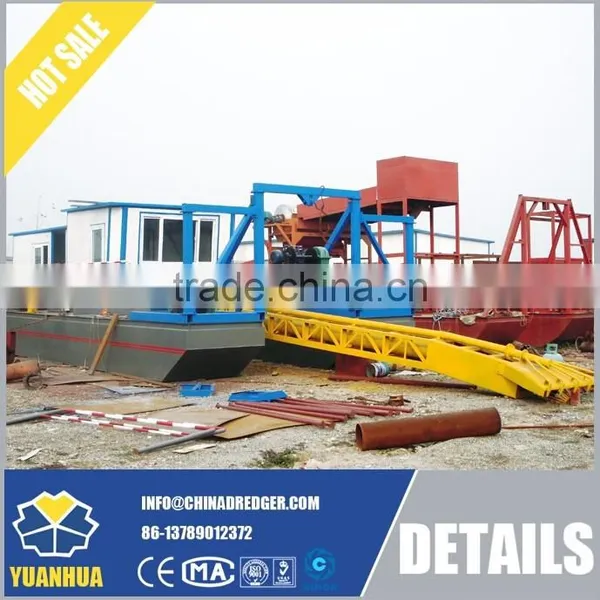

Mechanical Cutter Suction and Dustpan Suction Dredge
1. Floating body (hull) |
Hull dimension: 11.58m × 0.9m × 1.2m 2 5m × 1.78m × 1.3m 1 Deepening: 10m |
2. Main engine: The main pump power machine model: 6113 Weichai Diesel (water-cooled pressurized) Power: 175kw |
Rotational speed: 1400rpm |
3. Pumping sand pump: wearing proof alloy Type: 8/10F-G |
Inlet diameter: 250mm |
Outlet diameter: 200mm |
Max.diameter of Flowd Partice: 178mm Suction-way:10m-15m |
Delivery distance: 350m |
Total flow: 650m3 |

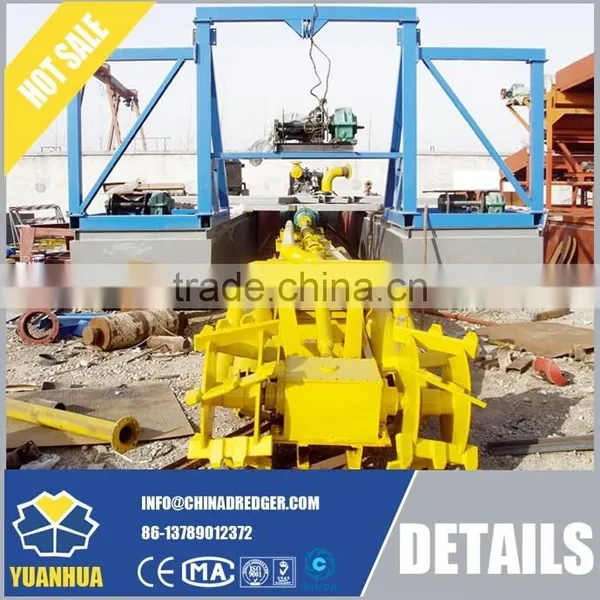

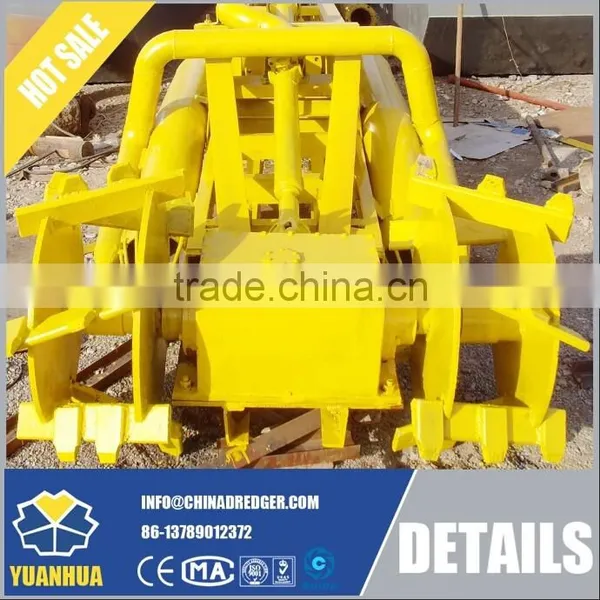

4. Reamer system: Reamer driving way: front mechanical |
Allocation power: 11kw motor reducer Cutter diameter: 600 mm |
Rotational speed: 30rpm |
5.. Jet system Jet pump: centrifugal pump Driving way: Electric or Direct Connect Water flow: 160m3 / h Jet nozzles: 3 or 5 |
Mating Power: diesel (28 hp) |
6.Reducer: Main reducer is the marine hydraulic reducer - Model: 120B |
Ratio: 2:1 |
7. Generating units: Generating power: 50kw Power model: HF4105ZD Diesel |
Power: 46.6kw |
8. Electric winch Cutting big arm wearing winch: 5.5kw one Anchor rope wearing winch: 3.0kw two |
9. Simple control room |
illuminating system |
I need to know more about your local working condition in order to offer a best solution for your project.
I would appreciate if you could provide information like the expecting productivity, dredging depth, discharge distance and so on.
That would help to judge what kind of dredger works most efficiently in your environment.
