Bucket Chain Sand Dredger
Item |
Specification |
Type |
Bucket chain sand dredger |
Size |
30*2*1.1 m Two groups |
Hull Height |
80cm |
Dig Depth |
8-12 m |
Transport arm |
22 m |
Capacity |
80- 120 cbm /h |
Chain Plate |
85* 20 * 600 |
Generator |
Cummins Engine (as your requirement) |
Main power |
WeiChai Engine (as your requirement) |
Quality assurance |
Will provide 12-months warranty for the quality of the diesel engines, generators, gear boxes, dredge pumps, Hydraulic system. |
YuanHua Dredger Feature:
- For sand dredging , river maintenance,etc
- Reliable hydraulic system
- Fresh water engine cooling system.
- Solid structure and top quality parts
- Ideal dredging depth and discharge distance
- High efficiency and Great production
- Spare parts and floating pipe available
- Lowenergy consumption
- Efficiency fuel consumption
- Simple to assemble , operate and maintain
- Transport by road , rail or sea
- The dredger is mainly used in the coastal , river, channel , reservoir , to dredge and backfill for the harbor construction.
Working load |
150-500m3/h |
150-500m3/h |
150-500m3/h |
150-500m3/h |
150-500m3/h |
150-500m3/h |
|
Hull size (L*W*H ) |
30*2*1.1 m Two groups |
20*2*1.1 m Two groups |
15*2*1.1 m Two groups |
13*1.8*1.1 m Two groups |
25*2.2*1.1 m Two groups |
40*2.2*1.1 m Two groups |
Digging depth |
2-20m |
2-13 |
2-6m |
2-4 |
2-16 |
2-25 |
Head m |
1-8m |
1-8m |
1-8m |
1-8m |
1-8m |
1-8m |
Discharge distance |
1-20m |
1-20m |
1-20m |
1-20m |
1-20m |
1-20m |
Hopper power |
55kw |
37 kw |
22 kw |
15 kw |
45 kw |
55 kw |
Diesel engine |
150kw |
150 kw |
75 kw |
75 kw |
150 kw |
150 kw |
1. Working load: Output/capacity of sand digging in one hour
2. Head: is the distance that the very specification, which to measure the performance of the dredging pump; exactly, it refers to the effective energy that the unit mass of fluid flowing to obtain
through the dredging pump in the very distance.
3. Discharge distance: which refers to the distance from the center of working site, to the
destination where you want the sand or mud conveys to.
4. Dredging depth: vertical distance from the water level to the depth where the sand or silt being dredged.
Yuanhua Quality Assurance and After-sale Service :
Will provide 12-months warranty for the quality of the main parts : Diesel engines, generators, gear boxes, dredge pumps, Hydraulic system.
1) 12 months manufacturing warranty on all new installed component parts.
2) 12 months warranty on hull and all fabricated parts.
3) Wearing parts are not included.
During the warranty period , We will provide free parts and on-site technical guidance . After the warranty period, We will provide free and on-site technical support quickly, if the ship-owner need. But if the dredger need replacement parts, the cost paid by the owner.
The technical options are customized and truely flexible
--totally up to the customer's requirement.

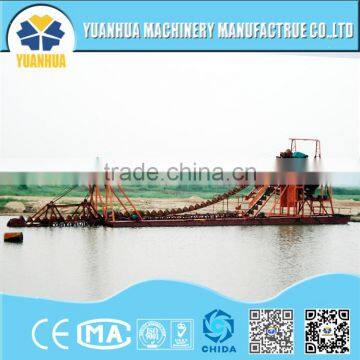

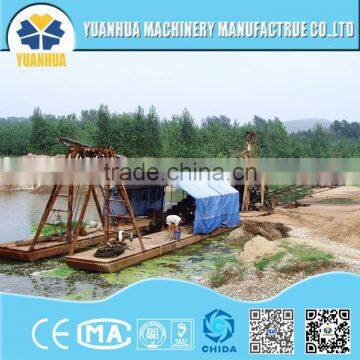

Bucket Chain Sand Dredge can carry out the procedure of digging, filtering, washing and classifying at the same time and put out qualified clean sand and rock products which are perfect material for construction uses. It’s equipped with a series of bucket chains. The bucket chains move continuously on the bucket bridge driven by the upward guide roller. The buckets dig mud underwater and bring the mud above the water surface. Draw in or draw out the anchor cables forward, backward, leftwards or right words to move the hull to corresponding directions to continue the mud dredging work. The dredged mud is first elevated to the top of the bucket tower and then discharged from the mud flowing gutter.
YuanHua Sand Dredger has a strong environmental adaptability and excellent work capacity with high efficiency.
The different dredgers make a difference in the various real working conditions. Contact us to get more information my friends.
