Chain Bucket Dredger for Gravels / Sand / Pebbles / Gold

YUANHUA Bucket Chain Dredger

YUANHUA Bucket Dredger equipped with trommel screen,gold shaking sluice, gold sluice box and centrifugal concentrator etc , a series of Mine Selecting Equipment.

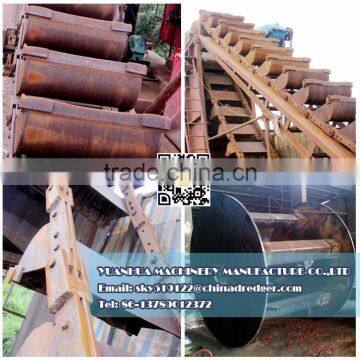

A bucket dredger is a stationary dredger that is equipped with a continuous chain of buckets, which are carried through a ladder . This ladder is mounted in a U-shaped pontoon. The drive of the bucket chain is on the upper side. During dredging, the dredger swings round the bow anchor by taking in or paying out the winches on board. The buckets are filled on the underside, are emptied on the upper side by tipping their contents into a chute along which the dredged material can slide into a trommel for sorting, then into concentrator and sluice box, finally get placer gold ,gravels , sand etc.

YUANHUA Bucket Chain Dredger is widely used in river, lake and shallow water for placer gold, gravels or iron sand etc. The gold mining dredger is flexible automation, high production, simple operation, easy disassembly and continuous production 24-7.

 Yuanhua Gold Mining Dredger

The parameters are just for reference. Customized specification is available.

1. Design &Construction

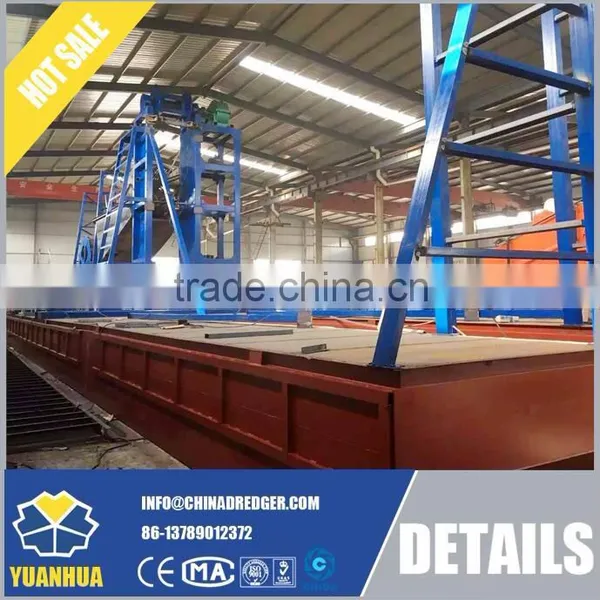

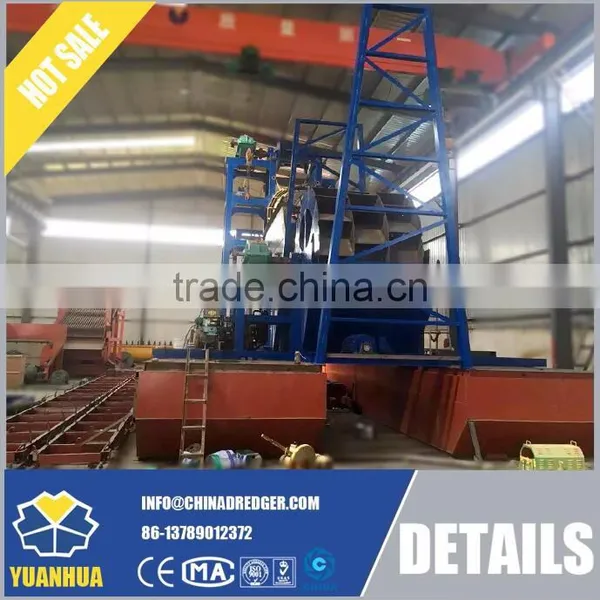

The hull consists of a U-shaped pontoon with horizontal deck and bottom plates. The tumbler is mounted on the main gantry.

2. Dredging Depth

For a smaller bucket dredger the dredging depth is around 10 m. By adjusting the height of the mounting of the ladder on the ladder gantry or by lengthening the ladder, it is possible to dredge to a maximum depth of 35 m.

 3.Dredged Soil
The influence of the soil to be dredged is seen in the power of the upper tumbler, the strength of the ladder, buckets and also in the bucket capacity and shape.Moreover rock buckets are cast and soft soil buckets are welded.

 4. Main Drive
The drive of the bucket chain is a diesel with a direct belt drive, a diesel-electric drive or a diesel-hydraulic drive.

 5. Gold Selecting Equipment
According to the materials to be selected, we recommend appropriate equipment as Chute, concentrator , jigger, amalgamator, flotation machine, shaker, vibrating screen,trommel screen etc.

6. Sieving and washing plant

Raw materials are fed into the trommel screen ,and be cleaned and seperated by the rotation of trommel screen and be washed by the fresh water, different size material would be seperated into different guide chute.

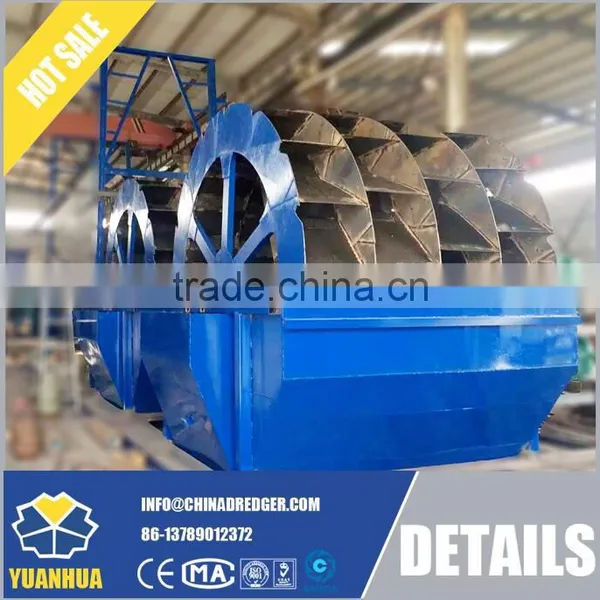

7. Fine sand recycling machine

Higher sand quality, recycled fine size 0.1-3mm sand,maximum fine sand recycling of 95%. Solve sedimentation tank cleaning issue, higher economical profit.

 8. Painting

The steel on the dredger is to be shot-blasted, provided with a primer and given an adequate (with regard to lifetime and environmental conditions) paint treatment.

  9. Detachable Structure

The dredgers are detachable,  it is easy to transport when delivering or moving from one working site to

another.

10. Assembly & Staff Training on worksite.

Our experienced installers will arrive at the construction site to guide, teach and training your crews to debug and operate the dredger .

 Q1. Who are we?

Qingzhou Yuanhua Machinery Manufacture Co.,Ltd. The Yuanhua owner started the business by build a jet suction dredger for fishpond desilting just over 20 years ago. We started out very small . As Yuanhua grow over the years we gained more building technique and operational experience, we started to supply various of dredging equipments ,such as cutter suction dredger, bucket chain dredger, gold dredger ,sand mining dredger, waterweeds harvest, sand processing line,sand washing and sieving machine,mining separator etc. We also independent research and development of Drilling Suction Dredger, more efficient for deepwater sand mining. We believe in great client service and excellent product quality. And building customer relationships, we still on service for our first client since 1994.

Q2. What is your advantages?

We survive in the competition market for over 20 years rely on excellent product quality, innovation development and great client service.

Consultancy: Our team of highly skilled engineers can provide a broad range of advisory services based on more than 20 years of theoretical and operational experience.

Training: YUANHUA will provides high-quality courses for operators, technicians and project engineers. A well-educated crew lead to an optimum operation.

Warranty: We provide 12 months of warranty period for our products with on site technical guidance.

Q3. Where is YUANHUA Shipyard? How can I visit your company?

A: Our company is located in Qingzhou, Shandong province, China.

Nearby Airport:  WEIFANG, JINAN or QINGDAO .

G-train station:  QINGZHOU.

Yuanhua always welcome you to visit us!
