8 inch pump Iron Sand extracting boat , Yuanhua mining machine
- 30 Set / Sets per Month
- QINGDAO
- T/T L/C D/P D/A Credit Card PayPal
- bucket wheel excavator 2000m3/h-7000m3/h
- bucket wheel excavator 500m3/h-7000m3/h
- bucket wheel excavator 500tph-2500tph
- 2021 Hot newest small 350 1000m3 Cutter Suction Dredger
- Hot Newest Sand Suction Dredging Boat Dredger for Sale Engineers Available to Service Machinery Overseas Customized Provided MAP
- Sand Dredging Machine 2021 Hot Newest Small 12 Inch Cutter Suction Dredger Engineers Available to Service Machinery Overseas MAP
Product Details
Condition: | New | Type: | Other, iron extracting dredger, Separator | Power Type: | Diesel |
Dredging Depth: | 10 m | Draught: | 70 cm | Place of Origin: | Shandong, China |
Brand Name: | YuanHua | Model Number: | 8inch pump iron sand dredger | Dimension(L*W*H): | Customized |
Weight: | 40T | Certification: | ISO 9001:2008 Certification | Warranty: | half a year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

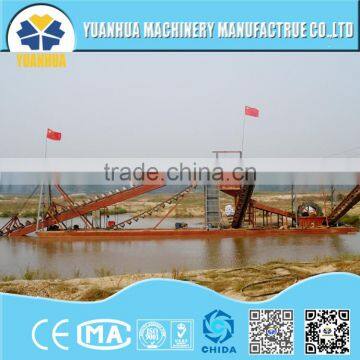

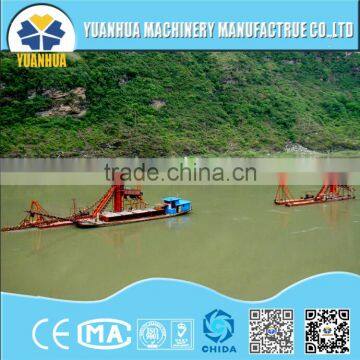

Iron Sand Extracting Boat
Below are the technique specifications of 8 inch Pump Iron Sand Dredger
Other models are available
YUANHUA Pump Iron Sand Dredger
|
Working mode:
|
Features:
|
(1) Hull |
Dimension: 13.5m×1.5m×900mm (L*W*H) side floating bodies/double |
Engine Room: 2m×1.5m×1m (L*W*H) middle floating body |
Anti-rust primer painted at the bottom |
Anti-rust coating painted at the surface |
Body:4mm steel plate |
Deck:3mm anti skid plate |
Engine Room: 5mm steel plate |
Total Width: 4.5-5m |
Height of holding frame:4.2-5.5m |
(2) Sand Pump Unit |
Model: 8 inch |
Suction:200mm Discharge:200mm |
Capacity:80M³/h (consistency 20%) |
Fitted Power:59kw Speed:700rpm |
Suction Depth:15m |
Driving Engine:HFR4105IZG WEIFANG·HUAYUAN |
Speed:2000rpm Power:74kw |
Oil Consumption:≤197g/kw.h |
Water Pumping Unit: |
Capacity:100M³/h Head:15m |
Fitted Power: 20HP diesel engine |
(3) Magnetic Separation Equipment (permanent magnet roller type) one set |
Size:3000mm×900mm (water-washing precise selection type) |
Antimagnetic angle:120° |
Selection Mode: downstream type/forward flow |
Super Antimagnetic Top Magnetic Force: 4300GS |
Recovery Rate: 90% net selection |
Fitted Power: 7.5kw standard motor Model 350 reducer |
Iron Sand Grade:50-55 depend on original ore magnetic holding rate |
7.5kw submersible pump one set |
(4) Winch |
ladder rising winch 4kw electric winch one set |
Hand operating winch two set |
(5) Simple Control Room |
Light two set |
(6) Power Unit |
Model:HFR4100ZD WEIFANG·HUAYUAN |
Generating Power:30kw Speed:1500rpm |
Rated Current:72A Rated Voltage:400V |
Oil Consumption: ≤197g/kw.h |
(7) Propeller |
Impeller Diameter:500mm Length:1.8m |
Fitted Power:20HP diesel engine |
(8) Iron Sand Discharging Pump |
Model:4 |
Fitted Power:24HP diesel engine |
(9) Attachments |
Main pump 8inch impeller 3pcs |
Water pump 4inch impeller 5pcs |
YuanHua Dredger Feature:
- For sand dredging , river maintenance,etc
- Reliable hydraulic system
- Fresh water engine cooling system.
- Solid structure and top quality parts
- Ideal dredging depth and discharge distance
- High efficiency and Great production
- Spare parts and floating pipe available
- Lowenergy consumption
- Efficiency fuel consumption
- Simple to assemble , operate and maintain
- Transport by road , rail or sea
- The dredger is mainly used in the coastal , river, channel , reservoir , to dredge and backfill for the harbor construction.
Yuanhua Quality Assurance and After-sale Service :
Will provide 12-months warranty for the quality of the main parts : Diesel engines, generators, gear boxes, dredge pumps, Hydraulic system.
1) 12 months manufacturing warranty on all new installed component parts.
2) 12 months warranty on hull and all fabricated parts.
3) Wearing parts are not included.
During the warranty period , We will provide free parts and on-site technical guidance . After the warranty period, We will provide free and on-site technical support quickly, if the ship-owner need. But if the dredger need replacement parts, the cost paid by the owner.
Qingzhou Yuanhua Machinery Manufacture Co., Ltd. We specialize in dredgers for various industries : Construction , Environmental , Sand Production and Mining Machine.
Produce a variety of series products , such as : cutter suction dredger , of rare metals.
Own professional R&D department , CAD drawing design center , quality control department and Installation & Adjustment to After Service .bucket chain dredger , underwater pump dredger , self- propelled dredger , gold panning dredger , iron extracting dredger, iron extracting equipments , sand sieving machines, crusher , weathering sand producing lines (break , rinsing and separating ), and various kinds of machines for land and watercourse mining
We can customize special dredging and mining equipments according to different environment and customer requirement which can accomplish the whole set of working procedures of filtering , extracting , separating, washing , classifying and put our qualified products directly. Our experienced engineers will work closely with you to customize a best dredging solution for your particular needs.
Established in 1994 , now we have developed a dominant role in the dredge manufacturing industry and expand our market to more Russia , Korea , South Asia , Kazakhstan , South Africa , Middle East etc. Success is based on the best quality , excellent service , good credit, competitive price , the abundant strength.
