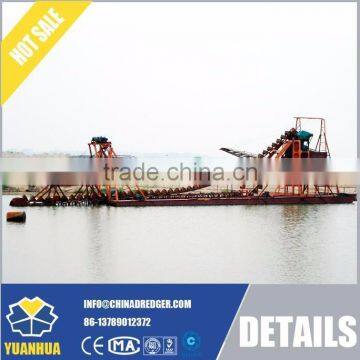

Dredger mining barge for sale
YuanHua Dredger Feature:
- For gold selecting etc
- Reliable mechanical or hydraulic system
- Fresh water engine cooling system.
- Solid structure and top quality parts
- Ideal dredging depth and discharge distance
- High efficiency and Great production
- Spare parts and floating pipe available
- Lowenergy consumption
- Efficiency fuel consumption
- Simple to assemble , operate and maintain
- Transport by road , rail or sea
- The dredger is mainly used in the coastal , river, channel , reservoir , to dredge and backfill for the harbor construction.
Bucket Chain Gold Dredge
can carry out the procedure of digging, filtering, washing and classifying at the same time and put out qualified clean sand and rock products which are perfect material for construction uses. It’s equipped with a series of bucket chains. The bucket chains move continuously on the bucket bridge driven by the upward guide roller. The buckets dig mud underwater and bring the mud above the water surface. Draw in or draw out the anchor cables forward, backward, leftwards or right words to move the hull to corresponding directions to continue the mud dredging work. The dredged mud is first elevated to the top of the bucket tower and then discharged from the mud flowing gutter.
One hull structural gold dredger, following :
| Items | Data |
1 | Hull size | |
| Pontoon length | 16m |
| Pontoon width | 1.9m |
| pontoon height | 0.9m |
| Pontoon quantity | 2 |
| Main frame height | 5.3m |
| Designed draught | 0.4m |
| Bottom steel plate thickness | 5mm |
| Sides steel plate thickness | 5mm |
| Deck steel plate thickness | 4mm |
|
|
|
2 | Buckets ladder | |
| Buckets ladder length | 12.6m |
| Bucket quantity | 50 |
| Bucket size | 0.06m³ |
| Power | 22kw |
| Reducer | ZQ750 |
3 | Winch |
|
| Power | 15kw |
4 | Main power |
|
| Model | Generator set 50kw |
| Diesel engine Manufacturer | China Weifang Huayuan Diesel Engine Manufacture Co., Ltd |
| Diesel engine capacity | 50kw |
5 | Drum screen |
|
| Diameter | 0.9m |
| Length | 1.3m |
| Power | Electric engine 5.5kw |
| Reducer | ZQ250 |
6 | Gold panning device |
|
| Type | sluice |
| Length | 6m |
| Width | 1.5m |
| Other | Gold plant |
7 | Pump |
|
| Manufacturer | Shandong Boshan |
| power | 5.5kw |
8 | Other |
|
| Max digging depth | 8m |
| Sand output | 80-100m³/h |
| Distribution box | 1 |
9 | First spray sand and then paint | |
Yuanhua Quality Assurance and After-sale Service :
Will provide 12-months warranty for the quality of the main parts : Diesel engines, generators, gear boxes, dredge pumps, Hydraulic system.
1) 12 months manufacturing warranty on all new installed component parts.
2) 12 months warranty on hull and all fabricated parts.
3) Wearing parts are not included.
During the warranty period , We will provide free parts and on-site technical guidance . After the warranty period, We will provide free and on-site technical support quickly, if the ship-owner need. But if the dredger need replacement parts, the cost paid by the owner.
Working condition
The technical options of the dredgers are customized and truly flexible
--totally up to the customer's requirement and the working environment.
