High Purity Extraction Lab Basic Rotary Evaporator
Features of 20L rotary evaporator
- Built-in vacuum controller, High vacuum performance
- PTFE sealing
- Hand lift to adjust the ascending or descending of Water/ Oil bath
- Digital display of temperature and rotation speed
- Easy assembling design: to be assembled within 30 minutes.
- Double layer cooling coils for improving condenser’s performance.
- High quality borosilicate glass 3.3 with excellent physical and chemical properties for glass parts and SUS 304 stainless steel frame
- Cost-saving modular design and can be customized by clients’ requirements
General Specification of 20L rotary evaporator for short path distillation :
Model |
HRE10 |
HRE20 |
HRE30 |
HRE50 |
Rotary flask (L) |
10 |
20 |
30 |
50 |
Collection flask (L) |
5 |
10 |
20 |
30 |
Motor power (W) |
180 |
180 |
250 |
250 |
Water bath power (KW) |
4 |
4 |
6 |
7 |
Evaporating speed (H2O) |
>4L/h |
>6L/h |
>8L/h |
>10L/h |
Rotating speed (rpm) |
0~120 |
0~110 |
||
Power supply |
220V/50Hz (60Hz) |
|||
Bath temp. range |
Room temp. ~299°C |
|||
Sealing |
Main PTFE Seal, Oil ring and O ring |
|||
Vacuum degree |
<133Pa |
|||
Attention here: we are professional chemical and phramaceutical equipment manufacturer and we can produce customized rotary vacuum evaporator as per clients' required specifications.

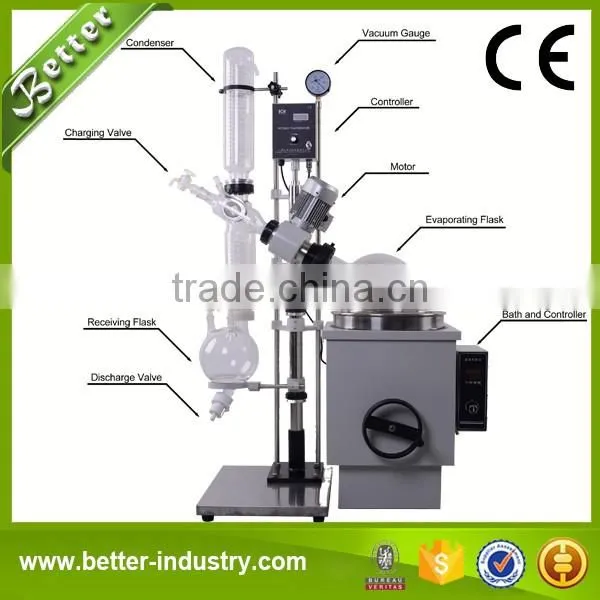

Structure demonstration of the lab rotary vacuum evaporator :
