Essential Oil Distillation For 100% Essential Oil

Specifications

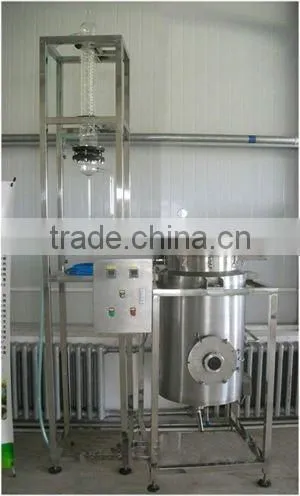

EC30 Essential Oil Distillation

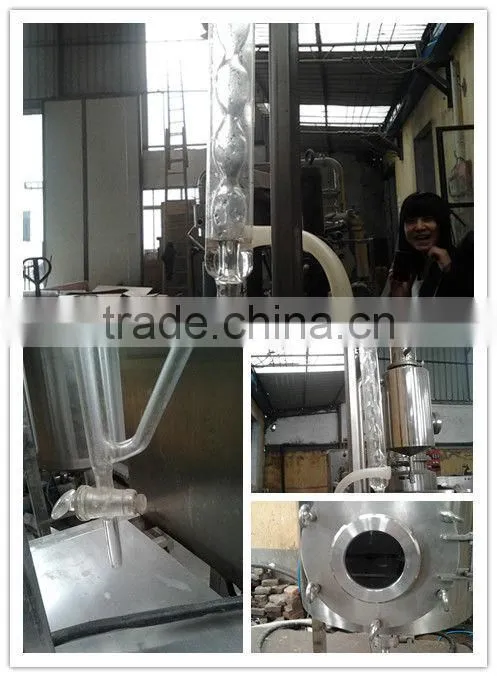

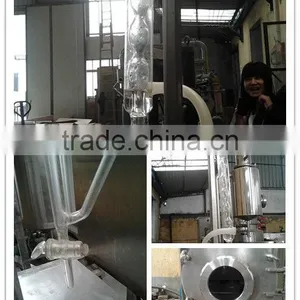

Picture of Essential Oil Distillion:

Essential Oil Distillion

Essential Oil Distillion

Essential Oil Distillion

introduction of EC30 Essential Oil Distillion:

This unit is popular in production of Chinese medicines, health products, Biological drugs, cosmetics and food, it use technology of biological and chemical separation, can extract Plant components efficiently by steam distillation, have good effect in collecting essential oil from plants.

technical datas of EC30 Essential Oil Distillion:

1. Power: 5.5kw, 380v/50Hz, Three Phases

2. Volume of Distillation Pot: 30

3. Heating Area of Extraction Tank: 0.33M²

4. Condensing Area of Condenser: 0.72M²

5. Cooling Area of Cooler: 0.70m2

6. Vacuum Pressure for Distillation: 0.3mpa

7. Moisture Extraction Temperature: 50~100c

8. Vacuum Degree: -0.05~-0.09

9.Power Of Electric Heater: 12kw (Includes Oil Heating System)

10. Volume of Extraction Tank: 20l

11. Filter Capacity of Pipe: 1200kg/H

12. Diameter of Condenser: 133mm

13. Cooling From Tap Water

14. Temperature Transfer: PT-100

15. Temperature Control Part: Taiwan LAHO

16. Material: SUS304 2B 0Cr18Ni9Ti

17. Size: 1600x800x1700(According To customer’s demand)

More details of of EC30 Essential Oil Distillion pls contact with me, thanks for your time so much.
