Home > Manufacturing & Processing Machinery > Machine Tools > Punching Machine > HJ018-100 Motor Rotor Shaft Press-in Hydraulic Press

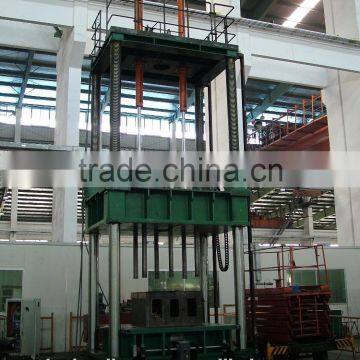

HJ018-100 Motor Rotor Shaft Press-in Hydraulic Press

Name: HJ018-100 Motor Rotor Shaft Press-in Hydraulic Press
Brand: Shengli
SKU: 141333346
Availability: InStock

HJ018-100 Motor Rotor Shaft Press-in Hydraulic Press thumbnail-1

HJ018-100 Motor Rotor Shaft Press-in Hydraulic Press photo-1

US$ 20,000 - 40,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Shengli

Model Number:

HJ018

Contact Supplier Request Quote Chat Now

Huzhou Machine Tool Works Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Shengli

Model Number HJ018

Voltage 380v, 220 v

Power(W) 13.05 kw

Weight Depend on Detail Model

Dimension(L*W*H) 3150x2865x4265/3005 mm

Certification CE, ISO, SGS

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

Power Source Hydraulic

Condition New

Application & Feature

The HJ018 series, vertical four-column type, is specialized for press-in the motor-rotor axles and then fastening the screws. With the structure of downward or upward pressing, a movable table, if you intend to use the upward, the crown can be set in the allowable range.

Loading with stand alone hydraulic station and electrical cabinet, PLC and focused botton control, optional of three operating modes of inch, manual and semi-automatic, each cylinder stroke is limited by a travel limit device.

Working pressure, quick and slow strokes can be regulated in the specified range to meet the required process, providing two controls of preset pressure and preset stroke, if you choose the preset pressure, the press executes hold-pressure, delay and auto. Return after pressing.

With the features of reliability and high efficiency, it's the ideal solution for electric-motor manufacture applications.

Main Technical Data

Technical Parameter		Unit	HJ018-100	HJ018-200	HJ018-315	HJ018-500
Nominal Force		KN	1000	2000	3150	5000
Max.Working Pressure		Mpa	25	25	25	20
Daylight		mm	2000	2000	3500	3000
Ram Stroke		mm	600	1200	2100	500
Main Cylinder Speed	Quick Descent	mm/s	30	100	70	/
	Pressing		5	8~18	6~12	3
	Return		30	80	60	33
Movable Table	Moving Distance	mm	1500	1500	2000	2250
	Moving Speed	mm/s	70	50	55	50
	Loading	t	5	2	5	15
Crown	Adjustable Distance	mm	1000	/	/	3000
Crown	Moving Speed	mm/s	5	/	/	20~4
Movable Table Size(LRxFB)		mm	1100x1100	1500x1500	2200x2200	2300x2200
Table Height above Floor		mm	257	385	400	527
Overall Size	Front to Back	mm	3150	3758	4560	7200
	Left to Right		2865	3442	4845	4550
	Height above Floor		4265/3005	5785/4935	9250/7550	10400/8512
Motor Power		KW	13.05	15.75	15.75	24
Work Mode			up-down	down-up	down-up	up-down

1.Specifications mentioned above are subject to any change without notice.

2.The products can be tailored as customer's desire or provide a full set for electric motor manufacture.

FAQ ABOUT HYDRAULIC PRESSES

Does welded beam easy deformation?

We treat it with tempering treatment to reduce internal stress.Besides, we also make casting beam.

The oil cylinder is important part,what if it broke?

We use forging cylinder which is forged by one 45# round steel,no welded.The broke rate is almost zero.

What about the electric system?

We use PLC electric control system with less line,easy maintenance and can programmable.

If part of the machine broke,does it easier to buy it in our country?

We can use customer appointed accessories if necessary.

Do you provide after service?

We provide technical service for life.

we are manufacturer of hydraulic press more than fifty years and can manufacture non-standard hydraulic press as your need( such as large worktable,deep slider stroke,multiple cylinder,high speed,double acting...)
