Home > Products > Inline Fan > Centrifugal Inline Fans
Centrifugal Inline Fans
US$ 39 - 99
/ Piece
200 Pieces(Min. Order)
- Guangzhou
- T/T Credit Card
You May Like
Product Details
| Electric Current Type | AC | Blade Material | Stainless Steel | |
| Mounting | Duct Fan | Place of Origin | Guangdong, China | |
| Brand Name | Wel | Model Number | AIFJ6 | |
| Power | 90-260w | Voltage | 120/240 | |
| Air Volume | 200-1000CFM | Speed | 2800rpm | |
| Certification | CE, CCC, UL | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
Centrifugal Inline Fans1.Big airflow,ernergy saving
2.Easy for installation and dismantle
3.Lower noise
4.Performanc
Centrifugal Inline Fans
1.Reliable quality with UL approved components
2.Powerful motor 5-10% higher airflow
3.Balanced motors with permanently lubricated ball bearings ensure vibration-free and quiet operation
4.Wide Size and Superior air Flow Range
6.Aluminum housing with jacket, rust proof ,light in weight, novel design
7.Easy Mounting Brackets
8.Pre-wired power Cord
9.Suitable for residential, commercial and industrial use such as bathroom exhaust,garage ventilation,basement ventilation,hood exhaust,grow room ventilation etc.
| Item No. | Flange Size | Speed | Airflow | Pressure | Power | Voltage/Frequency | Noise | Weight | |
| (inch/mm) | (rpm) | (m3/h) | (CFM) | (Pa) | (W) | (v/Hz) | dB(A) | (kg/lb) | |
| AIF4/AIFJ4 | 4in/100mm | 2600 | 340 | 200 | 300 | 89 | 120v/60Hz | 47 | 3/6.6 |
| AIF6/AIFJ6 | 6in/150mm | 2800 | 765 | 450 | 400 | 140 | 120v/60Hz | 52 | 4.3/10 |

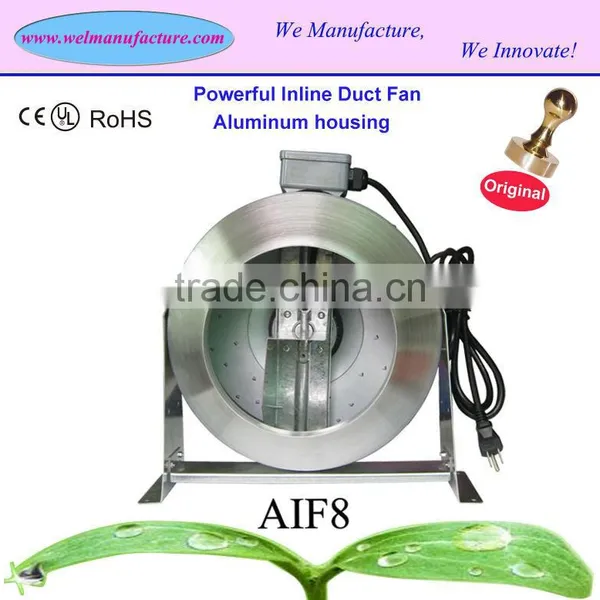

| AIF8/AIFJ8 | 8in/200mm | 2900 | 1445 | 850 | 550 | 180 | 120v/60Hz | 56 | 5/11 |
| AIF10/AIFJ10 | 10in/250mm | 2700 | 2380 | 1400 | 620 | 236 | 120v/60Hz | 58 | 6/13 |
| AIF12/AIFJ12 | 12in/300mm | 3000 | 3300 | 1900 | 710 | 350 | 120v/60Hz | 60 | 7/16 |
Contact Us
- Guangzhou City Yuanlaihong E-Tech Co., Ltd.
- Contact nameWel z Chat Now
- Phone86-20-29863991
- Address20 Fuyi Road,Chadong Industrial Park,Shiji Town, Panyu District,Guangzhou China PC:511450, Guangzhou, Guangdong
