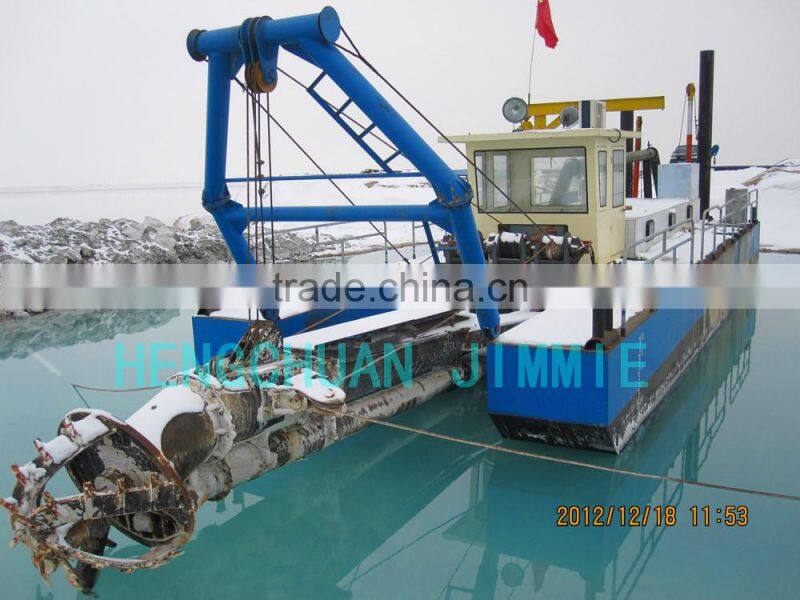

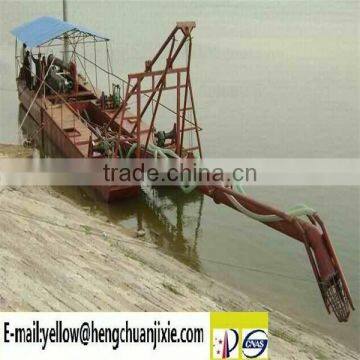

Shangdong Hengchuan Cutter Suction Dredger for Hot Sale
- qingdao
- T/T Money Gram
You May Like
-
The New Custom Hengchuan Tailings Recovery Machine
-
Crushers/Screening Machine of Hammer Crusher
-
The New Custom Hengchuan Good Efficiency Shaking Table for Sale
-
HC Serise of Mobile Gold Mining Trommel Machine for Sale
-
Plate Type Magnetic Separator Iron Separator
-
High Income Hengchuan Vertical Separator With Crusher and Double Cylinder
Product Details
| Condition | New | Type | Cutter Suction Dredger | |
| Power Type | Diesel | Dredging Depth | 15 m | |
| Draught | 160 cm | Place of Origin | Shandong, China | |
| Brand Name | HENGCHUAN | Model Number | HCWNC | |
| Dimension(L*W*H) | 23.5 * 8 * 2.4 | Certification | ISO9001-2008 | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Contract packaging listed
Product Description
cutter suction dredger
Component
Dredge pump is driven directly by the host, reamer head is driven by amotor or a hydraulic mechanism, a dredging efficiency as the row weight of 30%, according to Archimedes's law theory of single stage dredging pump suction deep 0M actually does not exceed 28M, and should be sucked deep to add intermediate relay relay pump, high pressure pump does not need, although with dredging pump discharge heavy, but thepower can be greatly reduced, so the relay pump water under high pressure motor or hydraulic mechanism for power. A maximum level relay pump suction sand but also 55M. Further to deepen to improve headrelay pump, power consumption power also increased the attendant.Suction pump displacement general relationship with the host power is1.5 ~ 2 times, such as main engine power is 1200PS, suction pump displacement is about 1200*1.5=1800M3, for cutter suction dredgerspecification except scale should provide the displacement of M3/n,pressure head positioning pile diameter and height, the traversing inforce, pile after lifting in tension, dredging depth, reamer head diameter,rotating speed. Dredging volume is generally 20% ~ 30% between the displacement of the. To provide the suction pipe diameter, pipe diameter of dredge pump. The more intact. And the hinge suction dredger shipequipped with must work, responsible for the anchor and anchor, in the sale of spare parts to note note: whether to work together to provide the ship. The discharge tube how many hairs. The working anchor should have 4 only, at least two and anchor float. There pile positioning guide pins.
1.Hengchuan cutter suction dredger has a very high cost performance
2.Manufacturing products according to customer's requirements
3.Completely assembled and fully tested before delivery
4.Equiping a perfect operating environment (For instance, air-condition ,toilet and so on)
5.All hydraulic control.
6.Designed as the standard of famous manufacturer in the world.
7.Shuiwang cutter suction dredger is flexible to most kind of geologic structures.
8.Simple operation.
9.Little maintenance and strong power.
10.Cutter suction dredger low price sale
11.Satisfying different work demands.

suction Dredger
The parameters
Ser | Description | Required Specification | Remarks |
A | Manufacturer | China, Zhongkai | ISO Certified Enterprise |
B | Brand | Zhongkai | Registered Brand |
C | Make and Model | ZKCSD-250 |
|
G
| Dredger Unit | ||
1. Dredger Type | Cutter suction dredger |
| |
2. Principle Dimensions |
|
| |
(1) Length overall | 26.0 m |
| |
(2) Breadth | 5.4 m |
| |
(3) Depth | 1.6 m |
| |
(4) Draft Loaded | 1.1 m |
| |
(5) Dredging Depth | 10.0 m |
| |
(6) Diameter of Suction Pipe | 350 mm |
| |
(7) Diameter of Discharge Pipe | 250 mm |
| |
(8) Discharge Distance | 1500 m |
| |
(9) Dredge Capacity of Slurry | 1200 m3/hr |
| |
(10) Max. capacity of Sand | 250 m3/hr |
| |
(11) Total Installed Power | 540kw |
| |
3. Main Pontoon |
|
| |
(1) Length | 11.0 m |
| |
(2) Width | 2.2 m |
| |
(3) Depth | 1.6 m |
| |
(4) Plate Thickness-F&R | 12 mm | CCSB Steel Plate | |
(5) Plate Thickness- Sides | 6 mm | CCSB Steel Plate | |
(6) Plate Thickness- Deck | 5 mm | CCSB Steel Plate | |
(7) Plate Thickness- Bottom | 8 mm | CCSB Steel Plate | |
(8) Plate Thickness- Bottom | 8 mm | CCSB Steel Plate | |
4. Side Pontoons |
|
| |
(1) Length | 18m |
| |
(2) Width | 1.5m |
| |
(3) Depth | 1.6m |
| |
(4) Plate Thickness-F&R | 12 mm | CCSB Steel Plate | |
(5) Plate Thickness- Sides | 6mm | CCSB Steel Plate | |
(6) Plate Thickness- Deck | 5mm | CCSB Steel Plate | |
(7) Plate Thickness- Bottom | 8mm | CCSB Steel Plate | |
5. Dredging Pump |
|
| |
(1) Made | SHIJIAZHUANG PUMP GROUP | Warman Technology | |
(2) Model | WN250 | Gravel Dredging Pump | |
(3) Head | 40-65m |
| |
(4) Capacity | 1200 m3/hr |
| |
1. Delivery:
The dredger can be dismounted and transported by bulk ship.
2. Hydraulic Coupler:
The hydraulic coupler can reduce the damage between engine and pump
when emergency.It can reduce the mechanical friction when the engine starts or stops
3. Spud System:
The spuds are made of 16 Mn which makes the spuds stronger.
The diameter is 510mm.
4. Welding Check:
All the welding job is checked by Welding Failure Detector.
5. Cabin:
The cabin adopt creative design: 360 degree view, double layers for anti-hot function,.
6. Anti-rust System:
The surface of the dredger are painted four layers, with China best marine paint from Haijian(brand name).
The hulls are equipped with zinc anode.
7. Installation:
We send engineers to install the dredger and train the workers for the customer, until the satisfaction
of the customer.
8. Warranty:
We supply one year warranty for the main equipment of the dredger and supply all the spare parts
and aftersale service in the warranty time.
Company qualification.
Trade terms of gold refining machine:
Payment details
| Usually paid by T/T or L/C |
By T/T 30% deposit and balance before shipment. | |
We will send the goods picture to you once commodity ready. | |
Packing details | By LCL or FCL(20'/40'GP) container. |
LCL with steel support seaworthy packing | |
Export software scientifical loading work | |
Shipment details | Sea and air shipment available |
MSK / MSC/ APL/ EMC/ WANHAI /KLINE | |
We will send the shipping notice to you once goods loading. |
Contact Us
Name | Andy |
Website | www.hcchina.en.china.cn |
Company Name | Shandong Hengchuan Ore Machinery Co.;Ltd |
Address | Mihe Industrial zone,Qingzhou City,Shandong province |
Company Profile

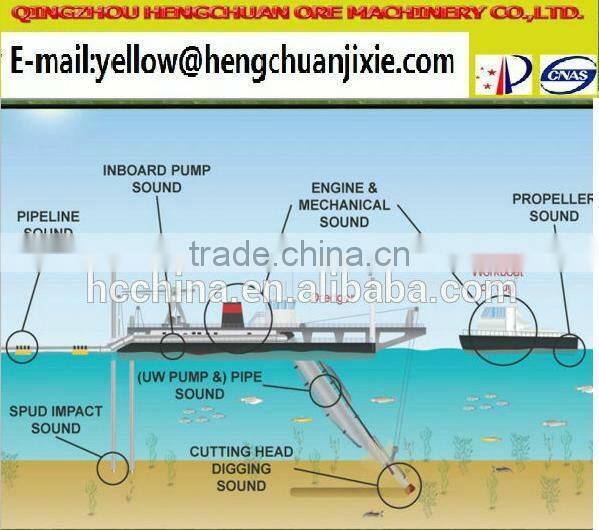

Qingzhou Hengchuan Ore Machinery Co.,ltd,was established in 2002,a leading ore machinery manufacturer in China,covering an area of 20000 square meters,have 6 engineers,20 technicians and 100 workers. Our main products:Gold Mining Machinery,Magnetic separators and all kinds of mining dredger etc.Our main market is domestic,Africa and Southeast Asia,such as Cameroon,Ghana,Mali,Zimbabwe,Malaysia,Indonesia and Philippines etc. Cutter suction dredger is widely used in dredging engineering.The rotating cutting head in the front of the suction pipe can stir slurry,then dredging pump suck the slurry through the suction pipe,then through the discharge pipe to the mud yards.Dredging, transportation and discharge is a whole series work.So the cutter suction dredger is an efficient and economic dredger.We start to manufacture the cutter suction dredger from 2005,gradually accumulated rich experience in this field. Development History: A).Established Magnet Research Institute in 2004,successfully developed the high gradient magnetic separator to 12000-22000GS. B).Cooperated with Shandong Gold Group and doubled the sales scale. C).Developed STL-120 gold centrifugal concentrator in 2008. D).Mature dredger products in 2009. E).Developed successfylly knelson smiliar type automatic discharge type gold centrifual concentrtor and produced them in large quantity for sellling. F).Established Shandong Hengchuan International Trade Co.,Ltd in 2015. Enterprise Spirit -eternal integrity Enterprise Purpose-to consistently exceed customers' expectations Core Values-innovation and leading the future Service Concept- to create value for customers Development Concept - Quality is life; innovation is the driving force Corporate Vision- the world leading supplier of magnetic separation equipment
