Gold Sieving Machine Bucket Gold Dredge for Sale
1. Composition of Gold Sieving Machine Bucket Gold Dredge for Sale
1).Hull:It is made of two or three pontoons,which used for installing various equipment,including operating room,pump cabin,etc.
2).Mining system: It is made of the dredging bucket,chain,tumbles and other components.

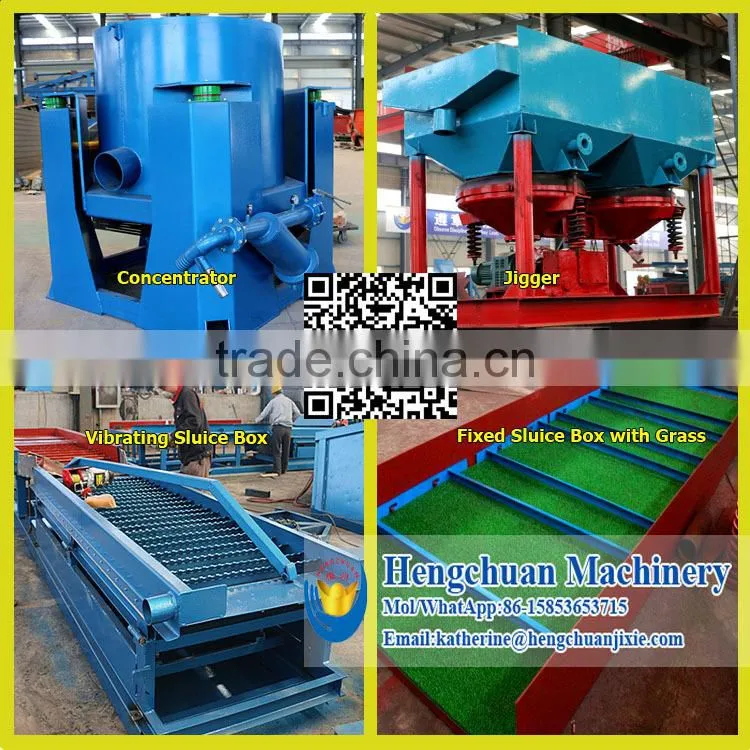

3).Mine Selecting Equipment:It is made up of trommel screen,gold shaking slucie,gold sluice box and centrifugal concentrator,etc.
4).The Waste Tailings System:It is made of conveyor belt,chute,motor,reducer,and it is used for discharging waste gravel and tailings.

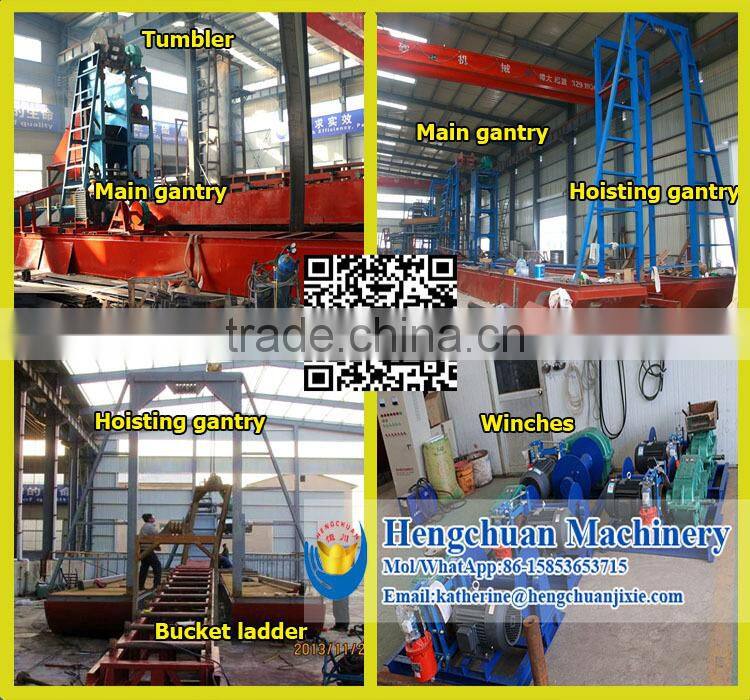

5).The Lifting System:it is made of main gantry,hoisting grantry,hoisting winch,swing winch,anchor winch etc.It is used for lifting and falling bucket ladder,mooring dredger ,etc.

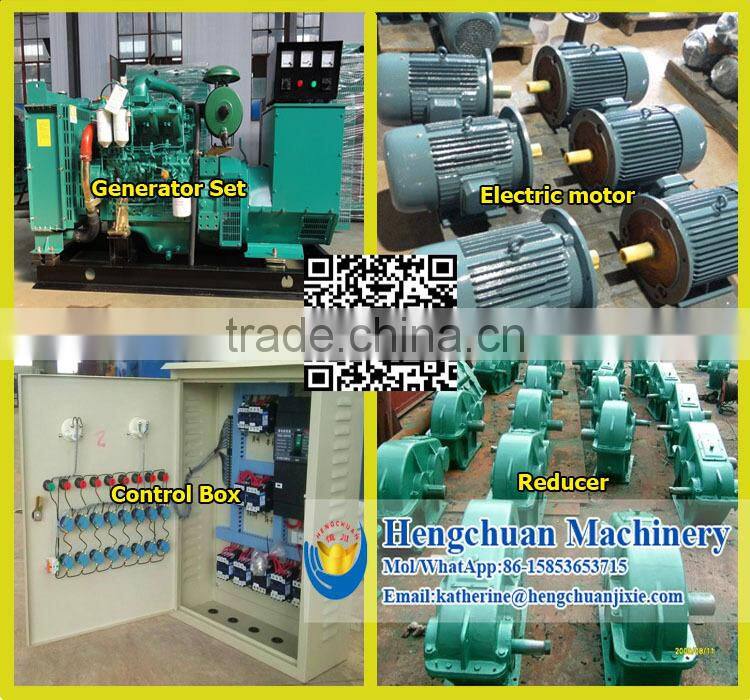

6).Power System:diesel engine:electronic generator sets,distribution box.It is used for providing lighting and working electricity and so on for the entire dredger.
gold panning equipment|gold dredger|gold detector|machine gold digger|gold and diamond|mini dredge for gold mining|gold machine|dredge for gold mining|diamond mining equipment|gold mining equipment|gold suction dredge boat for sale|small sand dredging machine|floating barge|gold dredge pontoons|machine for gold mining|gold extractor machine|bucket chain gold mining dredger|dredging bucket wheel|sand dredgers|hopper barges for sale|watermaster dredger sale|small sand dredging machine|floating barge|sand dredger for sale|river sand dredging machine|suction hopper dredger|river sand extraction machine|mini sand barge|cutter suction gold mining dredger|cutter|dredger|dredging equipment|sand pumping|cutter suction dredger
2. Parameters of Gold Sieving Machine Bucket Gold Dredge for Sale
Specifications | |
Pontoon Length | 20m |
Left Pontoon Width | 1.7m |
Right pontoon Width | Front Part: 8.2m * 1.7m Back Part:11.8m*2.1m |
Buckets Ladder | 20m |
Buckets (60type ,Circle shape) | 54 pieces |
Buckets Chain | 80cm*9cm*3cm |
Buckets working power system | 4105 diesel engine |
| Main gearbox:750# |
| Dredge exclusive gearbox:30# |
Portal Frame Height | 6m |
Hoisting Winch | Gearbox:400# ( driven by 4105 diesel engine) |
| Dredge exclusive gearbox:16# |
Sieve Size | 1.2m*1m with mesh size of 30mm |
Gold carpet sluice | 6m*0.76m ( 2 units ) |
Manual anchor winch | 3 units |
Centrifugal clear water pump | 6inch ( driven also by that 4105 diesel engine) |
gold panning equipment|gold dredger|gold detector|machine gold digger|gold and diamond|mini dredge for gold mining|gold machine|dredge for gold mining|diamond mining equipment|gold mining equipment|gold suction dredge boat for sale|small sand dredging machine|floating barge|gold dredge pontoons|machine for gold mining|gold extractor machine|bucket chain gold mining dredger|dredging bucket wheel|sand dredgers|hopper barges for sale|watermaster dredger sale|small sand dredging machine|floating barge|sand dredger for sale|river sand dredging machine|suction hopper dredger|river sand extraction machine|mini sand barge|cutter suction gold mining dredger|cutter|dredger|dredging equipment|sand pumping|cutter suction dredger
3. Pictures of Gold Sieving Machine Bucket Gold Dredge for Sale

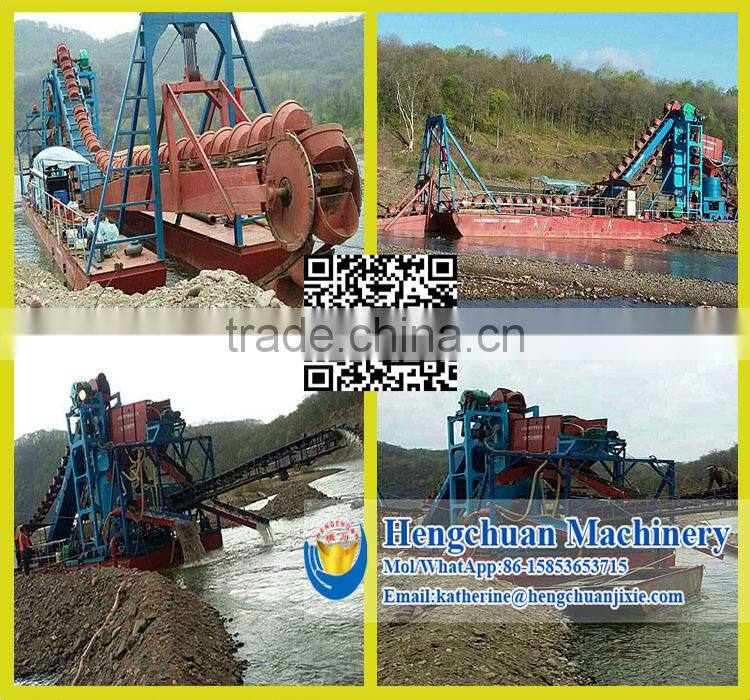

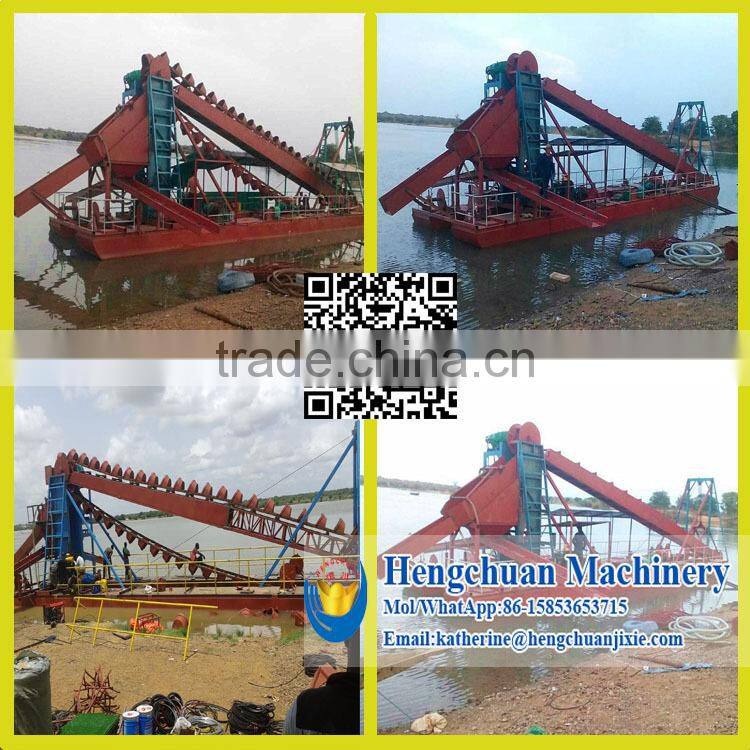

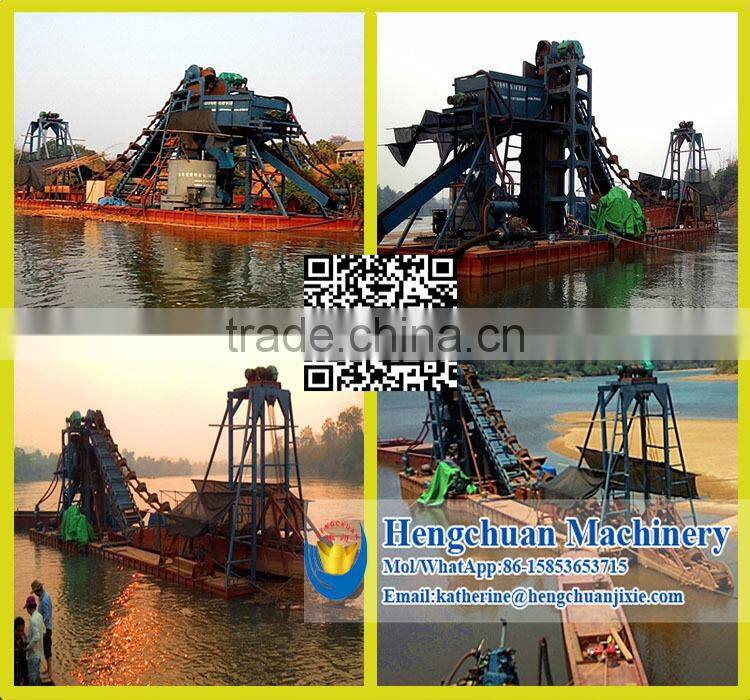

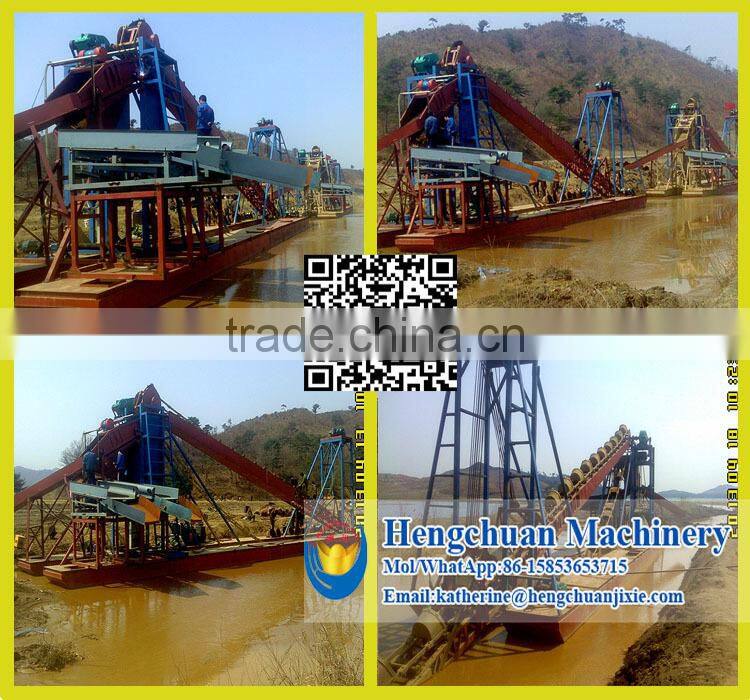

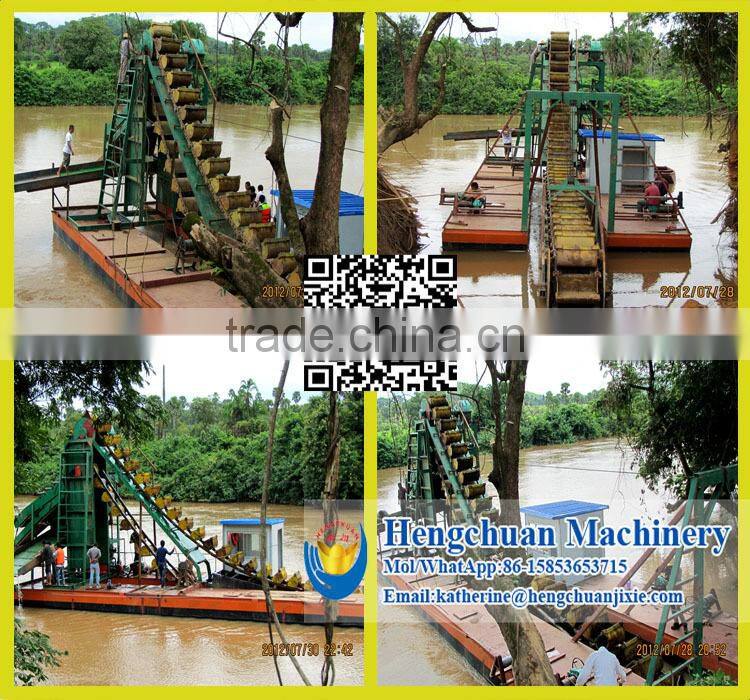

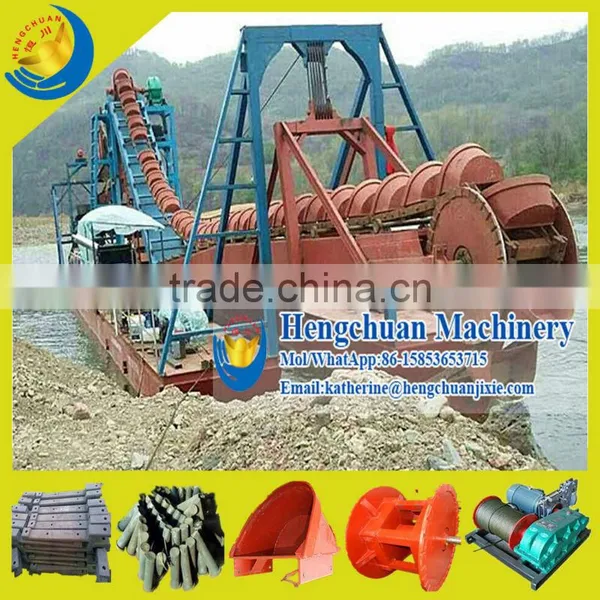

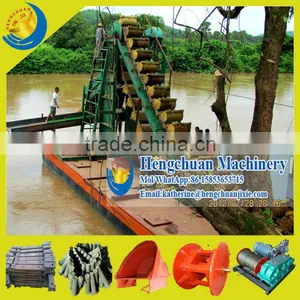

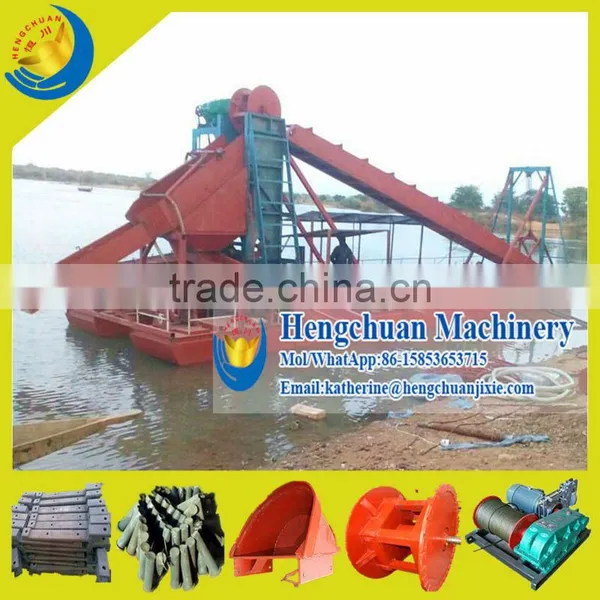

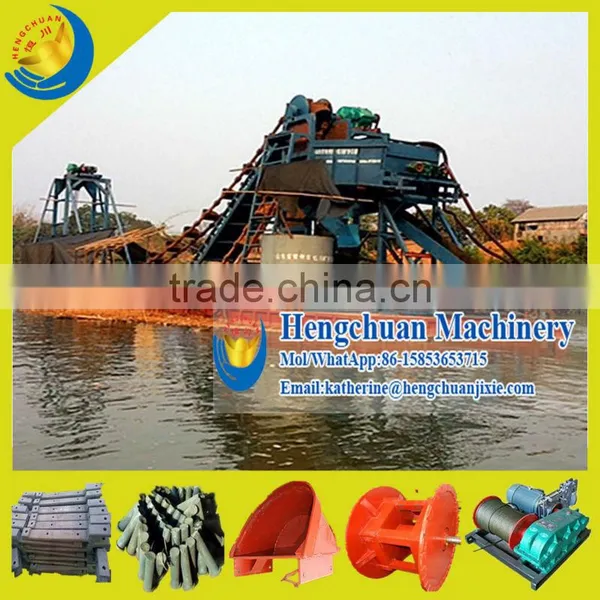

Gold Dredger equipped with sluice box in Mali:
Gold Dredger equipped with sluice box in Sudan:
Gold Dredger equipped with shaking slucie box in North Korea:

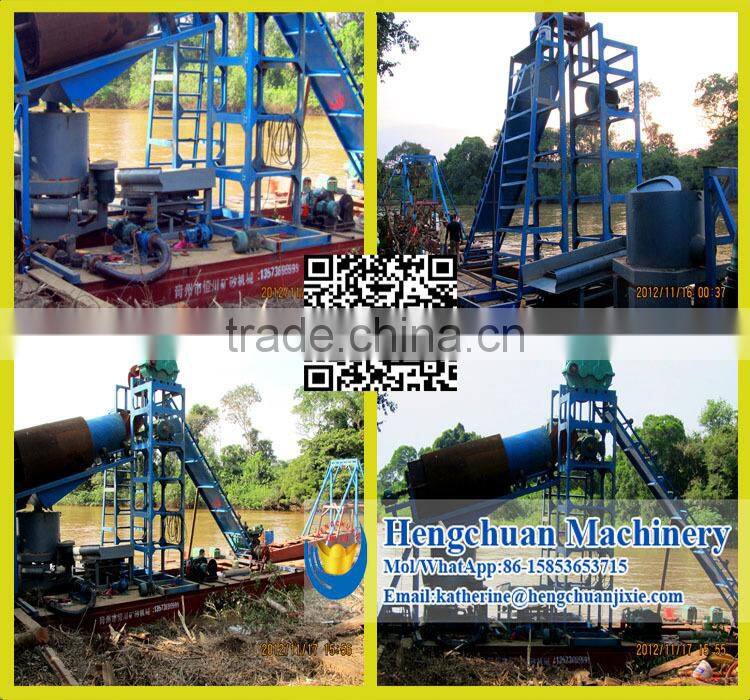

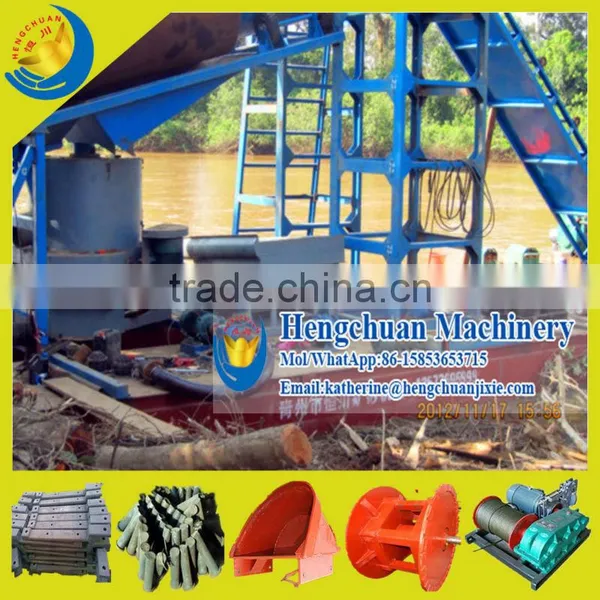

Gold Dredger equipped with Knelson Concentrator in Cambodia:
Gold Dredger equipped with Knelson Concentrator in Cameroon:
Gold Dredger equipped with centrifal concentrator in China:
4.Customers of Gold Sieving Machine Bucket Gold Dredge for Sale

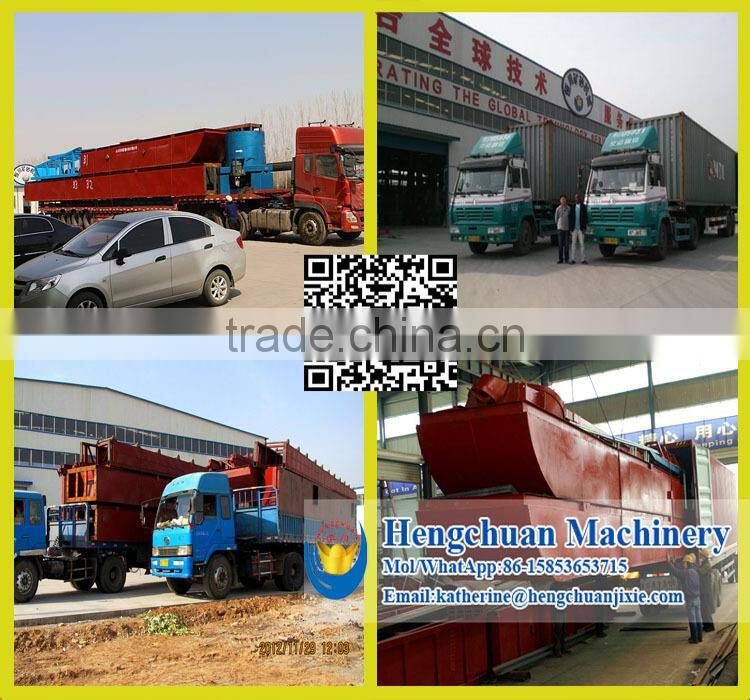

5.Shipping of Gold Sieving Machine Bucket Gold Dredge for Sale
