China manufacturer sand dredger Cutter Suction Dredger for sale
- 20 Unit / Units per Month
- qingdao
- T/T
- Low Cost High Quality Conveyor Transportation Barge For Sale
- Low Cost Self Propelled River Sand Transport Barge/Transportation Boat
- Sand Transportation Barge
- China mini auto self propelled sand transportation barge/boat for sale
- Latest Technology Sand Suction Transporter Ship/dredger
- Sand Small Barges For Sale New Technology Product In China
Product Details
Condition: | New | Type: | Cutter Suction Dredger | Power Type: | Diesel |
Dredging Depth: | 15 m | Draught: | 160 cm | Place of Origin: | Shandong, China |
Brand Name: | HENGCHUAN | Model Number: | HCWNC | Dimension(L*W*H): | 23.5 * 8 * 2.4 |
Weight: | 30t | Certification: | ISO9001-2008 | Warranty: | one year |
Packaging Details
Contract packaging listed
Product Description

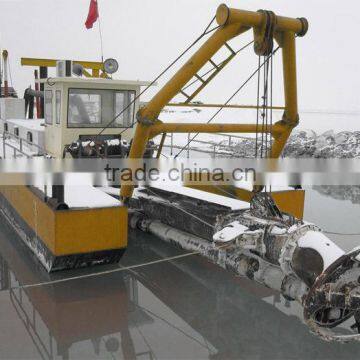

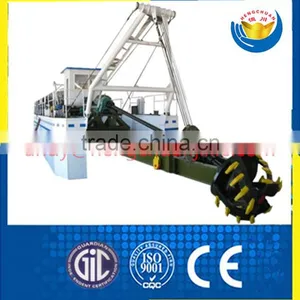

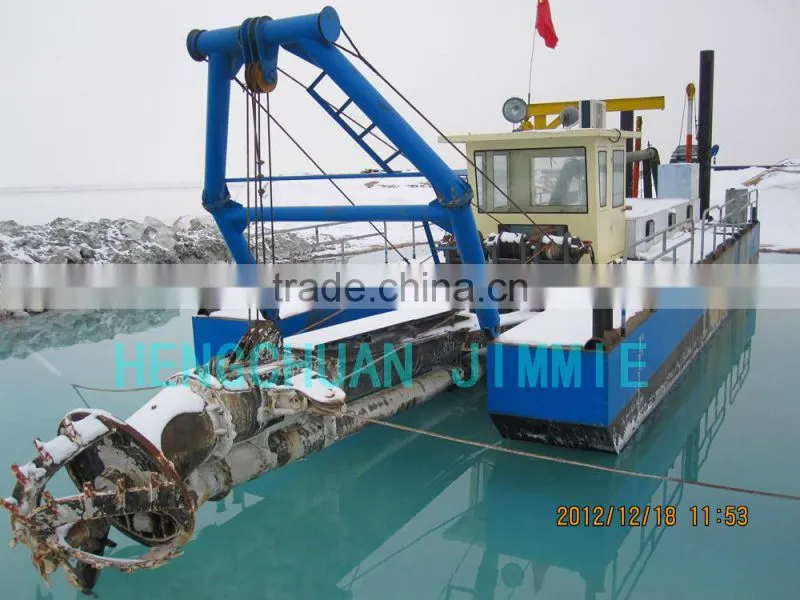

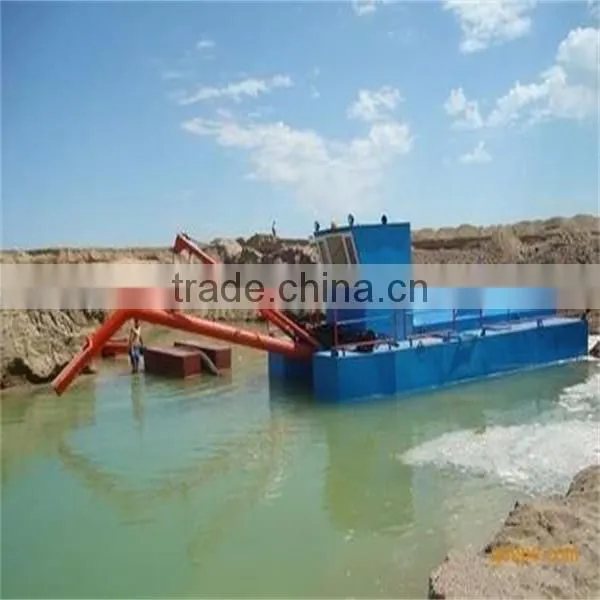

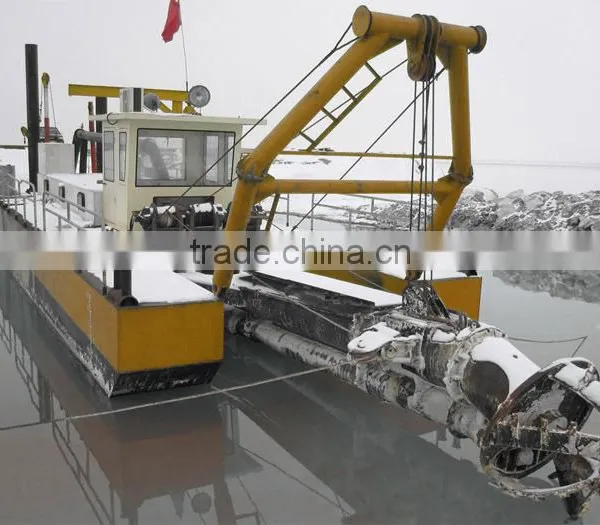

China manufacturer sand dredger Cutter Suction Dredger for sale
Component
Cutter Suction Dredger is a special dredging machine with ISO9001:2008. Cutter Suction Dredger is flexible to most kinds of geologic structures and has a lot of obvious advantages :
a. Wide application range : It can be widely used for mining, sand production, reclamation construction, desilting, land reclamation and so on.
b. High efficiency: The max output can reach to 700 m³/h, water flow 800-5000 stere per hour, digging depth is 4-15 meters, discharge distance is 200-1500 meters.
c. Quick return, high profits: usually, the investor can Achieve profitability within half a year. It is highly efficient with low cost, a good underwater dredging machine.
d. Standard quality: the main body of the machine is stong, durable and low failure rate.
Our advantage
1.Hengchuan cutter suction dredger has a very high cost performance
2.Manufacturing products according to customer's requirements
3.Completely assembled and fully tested before delivery
4.Equiping a perfect operating environment (For instance, air-condition ,toilet and so on)
5.All hydraulic control.
6.Designed as the standard of famous manufacturer in the world.
7.Shuiwang cutter suction dredger is flexible to most kind of geologic structures.
8.Simple operation.
9.Little maintenance and strong power.
10.Cutter suction dredger low price sale
11.Satisfying different work demands.
The parameters
Types | HCWNC 150 | HCWNC 200 | HCWNC 250 | HCWNC 300 | HCWNC 350 | HCWNC 450 | HCWNC 500 |
Pump Capacity(m3/hr) | 500 | 800 | 1200 | 2000 | 2800 | 3500 | 5000 |
Dredging Depth | 6.0 | 9.0 | 10.0 | 14.0 | 15.0 | 15.0 | 15.0 |
Full Length | 16.0 | 21.0 | 25.0 | 35.0 | 36.6 | 40.0 | 44.0 |
Hull Length | 12.0 | 14.0 | 18.0 | 25.0 | 26.0 | 30.0 | 35.0 |
Hull Height | 1.5 | 1.6 | 1.6 | 1.8 | 1.8 | 2.2 | 2.4 |
Hull Width | 4.2 | 4.1 | 4.6 | 5.5 | 5.5 | 7.0 | 7.5 |
Engine Power | 200 | 300 | 450 | 720 | 1000 | 1400 | 1600 |
Cutter Diameter | 0.8 | 1.0 | 1.3 | 1.5 | 1.5 | 1.7 | 1.8 |
Suction/Discharge Pipe | 200/150 | 250/200 | 300/250 | 350/300 | 400/350 | 550/450 | 600/500 |
Operation System | PLC Control and Hydraulic System |
suction Dredger

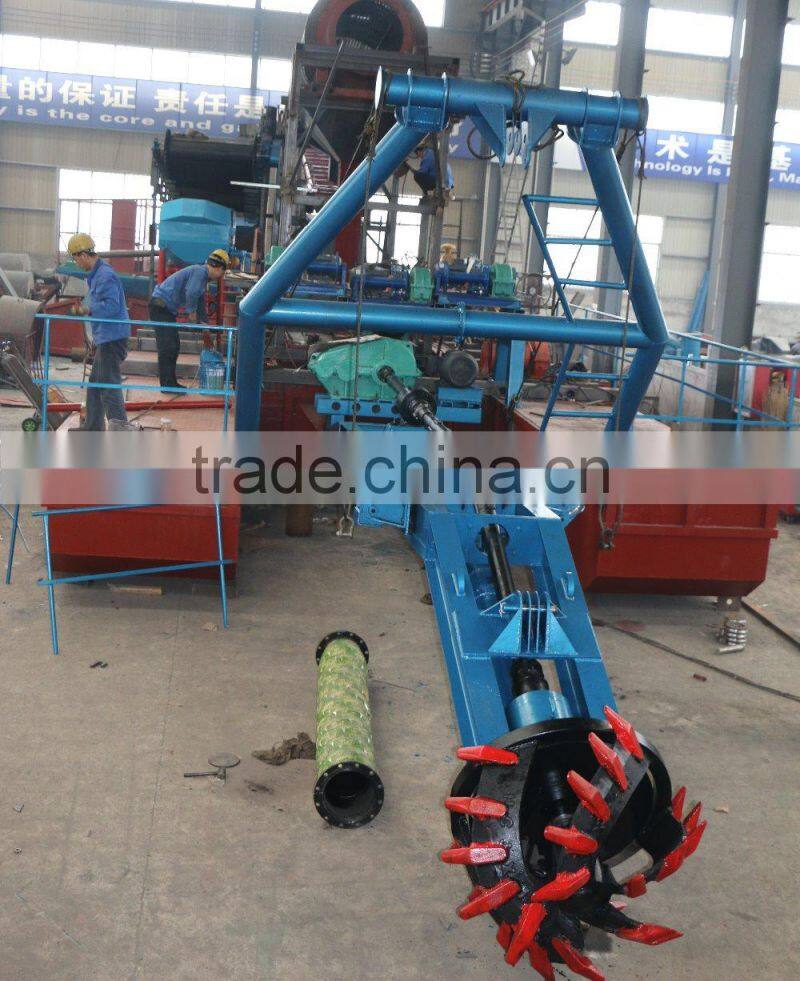

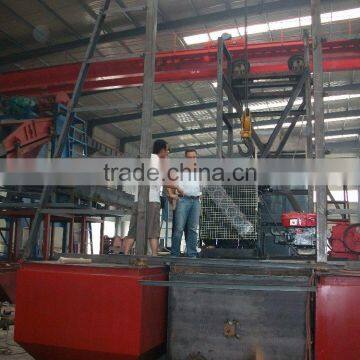

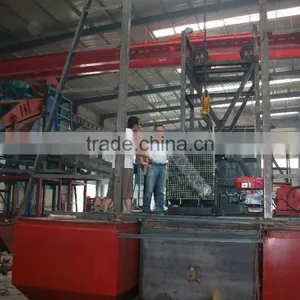

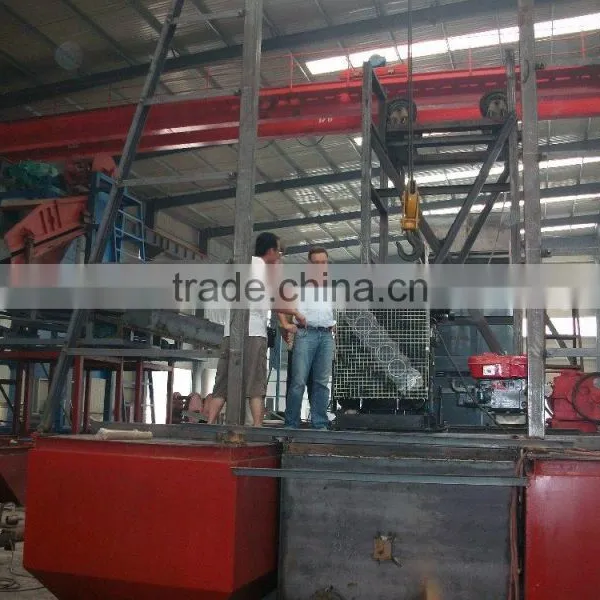

The Dredger in building
1. Delivery:
The dredger can be dismounted and transported by bulk ship.
2. Hydraulic Coupler:
The hydraulic coupler can reduce the damage between engine and pump
when emergency.It can reduce the mechanical friction when the engine starts or stops
3. Spud System:
The spuds are made of 16 Mn which makes the spuds stronger.
The diameter is 510mm.
4. Welding Check:
All the welding job is checked by Welding Failure Detector.
5. Cabin:
The cabin adopt creative design: 360 degree view, double layers for anti-hot function,.
6. Anti-rust System:
The surface of the dredger are painted four layers, with China best marine paint from Haijian(brand name).
The hulls are equipped with zinc anode.
7. Installation:
We send engineers to install the dredger and train the workers for the customer, until the satisfaction
of the customer.
8. Warranty:
We supply one year warranty for the main equipment of the dredger and supply all the spare parts
and aftersale service in the warranty time.
Company qualification.
Trade terms of gold refining machine:
Payment details
| Usually paid by T/T or L/C |
By T/T 30% deposit and balance before shipment. | |
We will send the goods picture to you once commodity ready. | |
Packing details | By LCL or FCL(20'/40'GP) container. |
LCL with steel support seaworthy packing | |
Export software scientifical loading work | |
Shipment details | Sea and air shipment available |
MSK / MSC/ APL/ EMC/ WANHAI /KLINE | |
We will send the shipping notice to you once goods loading. |
Contact Us
Name | Andy |
Website | www.hcchina.en.china.cn |
Company Name | Shandong Hengchuan Ore Machinery Co.;Ltd |
Address | Mihe Industrial zone,Qingzhou City,Shandong province |
Company Profile
Qingzhou Hengchuan Ore Machinery Co.,ltd,was established in 2002,a leading ore machinery manufacturer in China,covering an area of 20000 square meters,have 6 engineers,20 technicians and 100 workers.
Our main products:Gold Mining Machinery,Magnetic separators and all kinds of mining dredger etc.Our main market is domestic,Africa and Southeast Asia,such as Cameroon,Ghana,Mali,Zimbabwe,Malaysia,Indonesia and Philippines etc.
Cutter suction dredger is widely used in dredging engineering.The rotating cutting head in the front of the suction pipe can stir slurry,then dredging pump suck the slurry through the suction pipe,then through the discharge pipe to the mud yards.Dredging, transportation and discharge is a whole series work.So the cutter suction dredger is an efficient and economic dredger.We start to manufacture the cutter suction dredger from 2005,gradually accumulated rich experience in this field.
