Gold Chain Bucket Dredge /Gold Wheel Bucket Dredge With Best Selling
- 100 Set / Sets per Month
- Qingdao Port
- T/T
- China New Technology Manufacture Ball Mill/ Ball Mill prices/Ball Grinding Mill for Sale
- China Manufacture Ball Mill/ Ball Mill prices/Ball Grinding Mill for Sale
- Hot Selling Gold Alluvial Machine/Jig Heads/Jigging Machine
- China Hammer Crusher Type and Stone Crushing Application Stone Crusher
- Jaw Crusher Price With PE for Sale
- China High Quality Calcite Ball Mill For Calcite Powder
Product Details
Condition: | New | Type: | Bucket Dredger | Power Type: | Diesel |
Dredging Depth: | 8 m | Draught: | 68 cm | Place of Origin: | Shandong, China |
Brand Name: | HENGCHUAN | Model Number: | HCGBD-80-8 | Dimension(L*W*H): | 17*5.1*0.9m |
Weight: | 22t | Certification: | ISO9001:2008 | Warranty: | One Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
By container for Gold Chain Bucket Dredge /Gold Wheel Bucket Dredge With Best Selling
Product Description

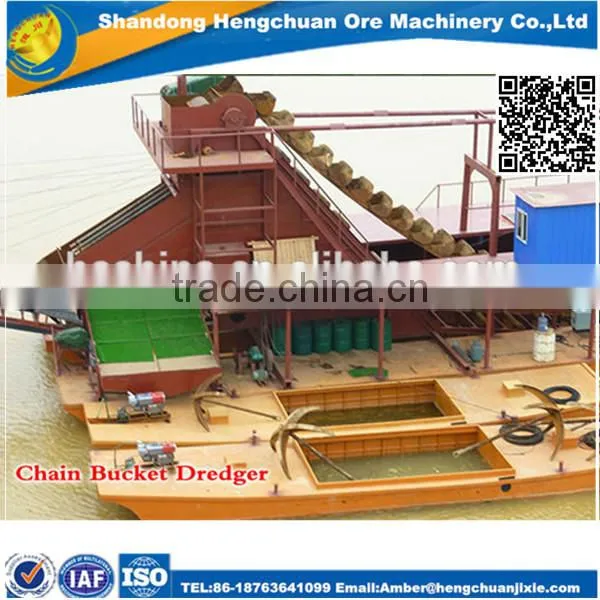

Gold Chain Bucket Dredge /Gold Wheel Bucket Dredger With Best Selling
1.Introduction of gold wheel bucket dredge
1)mining dredger consists of mining system , sifting system and separating system . Used for mining and separating heavy particles ,like alluvial gold, wolfram , Stannum , etc .
2)Requirement : The content of sticky clay , big gravels and stones should be less than 30% and the stone size should be smaller than 100mm .
3)According to requirement , can equip Nomal sluice , Pulsating , jigging sluice , STL Centrifugal Concentrator , etc . If the deposit contain magnetic sand , can also equip magnetic separator .
4)Dredging depth and capacity can be customized . Recovery rate higher than 99% .
2.Fretures of gold wheel bucket dredge
1.Dredging depth ranges from 4m to 20m max.
2.Processing capacity from 100t/h to 300t/h max.
3.Separating system could be equipped with clay scrubber, gold trommel or vibrating screen according to different mining situations.
4.Gold recovery system could be equipped with belt chute, Knelson centrifugal concentrators (CVD type or batch type), sluice box with gold mat, shaking sluice, etc to ensure highest recovery rate.
5.Power system could be equipped with Cummins diesel generator set with 120kw, 150kw, or 200kw.
6.Gold Refining system could be equipped with gold shaker table, amalgamator, etc.
7.One-shop gold dredger, all process on board.
3.Composition of gold wheel bucket dredge
1). Hull: It is made of two or three pontoons,which used for installing various equipment,including operating cabin, pump cabin, etc.
2).Mining system: It is made of the dredging bucket, chain, underwater big arm, upper and lower quadrangle wheel, active power, main reducer, main frame and other components.It is mainly used in surface mining operation and ore mining.
3). Mine Selecting Equipment: It is made up of sand trommel screen, gold washing machine,pump, gold selecting chute or centrifugal concentration machine, etc.
4). The Waste Tailings System: It is made of conveyor belt, chute, motor, reducer, and it is used for discharging waste gravel and tailings.
5). The Lifting System: it is made of gantry, arm lifting winch, anchor winch, sliding winch, etc.. It is used for lifting and falling underwater arm, mooring dredger ,etc.
6). Power System: diesel engine, electronic generator sets, distribution box. It is used for providing lighting and working electricity and so on for the entire dredger.
4.Specifications of gold wheel bucket dredge
Specifications | |
Pontoon Length | 20m |
Left Pontoon Width | 1.7m |
Right pontoon Width | Front Part: 8.2m * 1.7m Back Part:11.8m*2.1m |
Buckets Ladder | 20m |
Buckets (60type ,Circle shape) | 54 pieces |
Buckets Chain | 80cm*9cm*3cm |
Buckets working power system | 4105 diesel engine |
| Main gearbox:750# |
| Dredge exclusive gearbox:30# |
Portal Frame Height | 6m |
Hoisting Winch | Gearbox:400# ( driven by 4105 diesel engine) |
| Dredge exclusive gearbox:16# |
Sieve Size | 1.2m*1m with mesh size of 30mm |
Gold carpet sluice | 6m*0.76m ( 2 units ) |
Manual anchor winch | 3 units |
Centrifugal clear water pump | 6inch ( driven also by that 4105 diesel engine) |

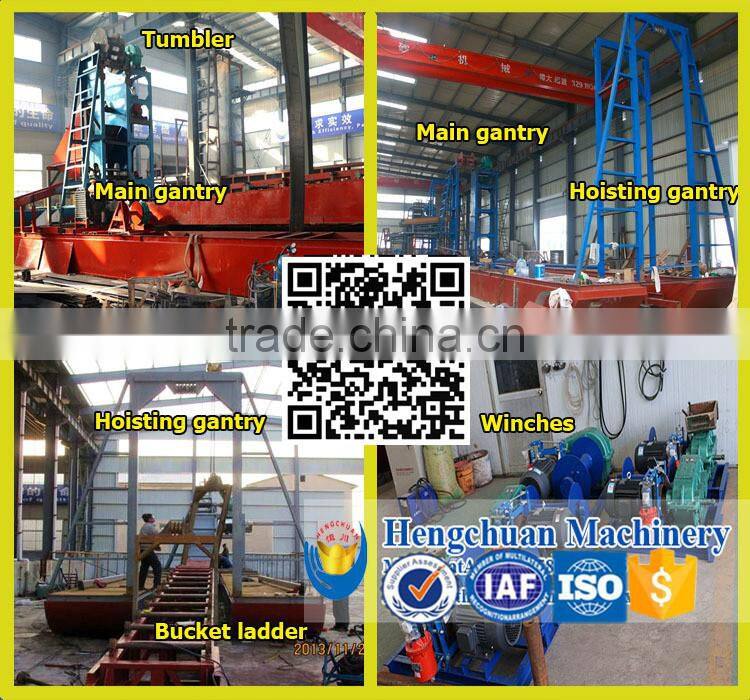

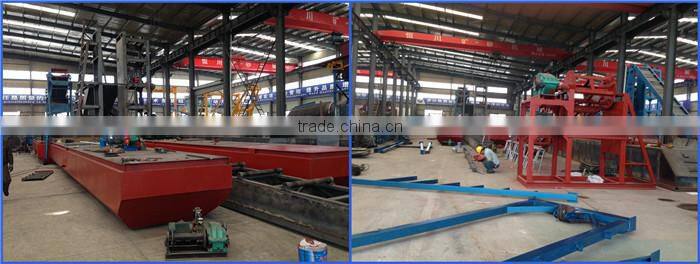

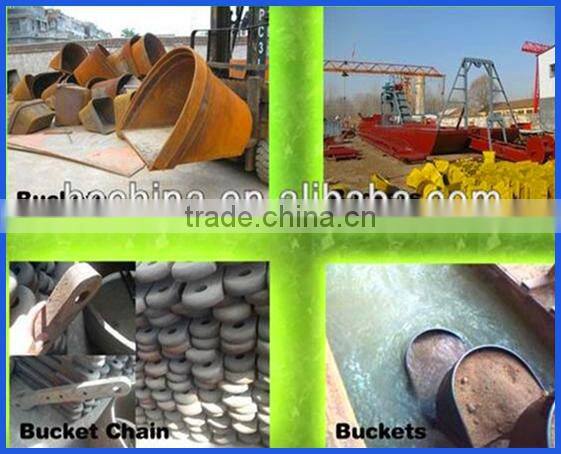

5.Detail images of gold wheel bucket dredge
Packing:By container for Gold Chain Bucket Dredge /Gold Wheel Bucket Dredge With Best Selling
Shipping:Qingdao Port
Pre-sale services: enthusiasm
l We will provide you with the prior plan, process flow design and production equipment in line with your
special needs.
Sale services: servant
l We will send technicians to you for guiding the equipment installation and commissioning and staff
training.
After-sale services: faithfulness
l We will regularly pay return visit to customers for establishing a long-term and friendly relationship.
Service Commitment
l We provide one-year warranty to make sure your machine work well. We have spare parts of the very
machine in stock
all the time which means the replacements can be sent to you timely
1.Our factory
Qingzhou Hengchuan Ore Machinery Co.,ltd,was established in 2002,a leading ore machinery manufacturer in China,covering an area of 20000 square meters,have 6 engineers,20 technicians and 100 workers.
Our main products:Gold Mining Machinery,Magnetic separators and all kinds of mining dredger etc.
2.Our customer
Our main market is domestic,Africa and Southeast Asia,such asCameroon,Ghana,Mali,Zimbabwe,Malaysia,Indonesia and Philippines etc.
So much customers interested in our Cutter suction dredger and have buy it.
3.Certificater:
In order to give you a responsible quotation, you can inform us the following information
1).Type of minerals to be mined?
2).Type of deposit (Primary/hard rock, or secondary/placer)?
3).Physical characteristics of the ore (sandy, with light clay or heavy clay)?
4).Intended feed capacity (Tons/hour)?
