Specifications
gold suction dredge for sale1)Max suction depth:10m
2)8 inch sand pump
3)6 inch water pump
4)Gold recovery rate up to 85%

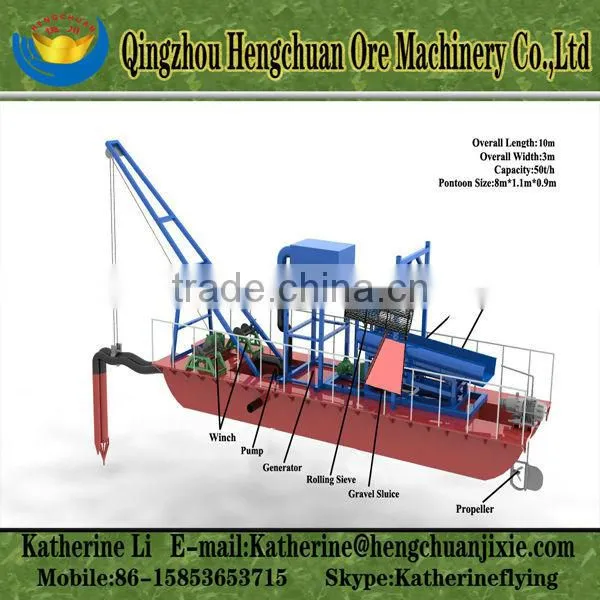

Chinese Gold Jet Suction Dredge
1. Description of Chinese Gold Jet Suction Dredge
Jet Suction Dredger,equipped with hydraulic monitor and sand pump,washes sand up, and then pumps and conveys the sand to the destination through the pipe. This dredger is novelly designed,easy to operate and of high efficiency.
The Gold Jet Suction Dredger use pressure water jet to rush the sand loose,then puming to the dredger or the bank.
The whole hull is combined by three pontoons: One main pontoon and two side pontoons, in the deck and bottom connecting plate while the connecting hook coupling between the pontoon are made of high-strength bolts and nuts.
2.Mine Selecting Equipment of Chinese Gold Jet Suction Dredge
This is a kind of jet suction dredger with gold platform, dismantle type and can be assemble at the working site.
The dredger is designed according to customer’s requirement, equipped with such devices on: operating room, operating desk, generators, sand pumping device, sand and stone separating device, distributor box, gold concentrator, gold sluice, sand pump, shaking table, tailing recycling device, lifting device and anchoring device.
3. Main Paraments of Chinese Gold Jet Suction Dredge
Hengchuan Jet Suction Gold Dredger | ||
NO | Item | Specification |
1 | Model | HCPM-100-10 (8/8inches) |
2 | Total size | 11.00×5.50×0.85m |
3 | Center Cabin | 2.25m*5.00m*1.10m |
4 | Mean Draft | 0.40m |
5 | Standard Suction depth Max. Suction Depth | 8.00m 10.00m |
6 | Gold sluice box Size(L*W) | 5.50m*1.0m*2 sets(adjustable) |
7 | Recoil water tank (L*W*H) | 1.80m*0.76m*0.76m |
8 | sand pump | Model:8/8; Water Flow Capacity:400cbm/h; |
9 | Main Diesel engine | Model: WeifangR6105 Power: 82KW |
10 | Auxiliary diesel engine | Model: Weifang Power: 24hp |
11 | Jet water pump | Model :6/6inches; Water Flow Capacity:100cbm/h |
12 | ZQ250 Lift winch | One set |
13 | Mooring anchor | ZQ150*2sets |
14 | Steel Wire Rope (Dia*Length) | 10mm*150m |
15 | Suction Mouth | Dia.200mm Length: 4.00m |
16 | Spiral Rubber Suction hose
| Dia.200mm Length: 8m*1 set 4m*1set |
17 | Spiral Rubber Hose | Dia.159mm Length: 8m*1 Set |
18 | Thickness of anti-skidding deck | 3mm |
19 | Thickness of gold sluice box | 5mm |
20 | Thickness of bottom(side) plate | 5mm |
21 | Life saving equipment | One set |
22 | Firefighting equipment | One set |
23 | Working Capacity | 80-100M3/h |
24 | Gold recovery rate | 75%-85% |
25 | Total Weight | 10t |
