gold separation machine shaking screen
- 100 Set / Sets per Month
- QINGDAO
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | Hengchuan | Model Number: | 6-S |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Gold Shaker Table Small Scale Production Plant
1.Description of Small Gold Shaker Table Small Scale Production Plant
Shaking table, which is also called table concentrator, is a mine selecting machine for fine materials working by gravity. It is widely used in selection of Tin, tungsten, gold, silver, lead, zinc, tantalum,niobium, iron, manganese, ferrotitanium, coal, etc.
2.Main Features of Small Gold Shaker Table Small Scale Production Plant
1) High recovery ratio.
2) Easy installation.
3) Simple operation.
4) Deck constructed of fiber glass.
5) Three different decks to choose.
6) Long working life.
7) Adjustable stroke length and speed.
In compliance with the industrial standards, the lab shaking table is to make separations based on the difference of specific gravity of feed materials, reciprocating asymmetrical movement and the stratification performance of the inclined table surface in the lateral water flow with obvious zone of the minerals with different specific gravities on the table, high quality of concentrates produced, convenient operation and adjustment and other features.
3.Structure of Small Gold Shaker Table Small Scale Production Plant
4.Applicant of Small Gold Shaker Table Small Scale Production Plant
Gold Separation machine 6-S Shaking Table /Copper Shaking Table in Indonesia
Shaking table is one of the most commonest ore dressing equipment used in gravity separation plant. Its effective finest particle size is 0.037mm. The bed zoning is obvious and easy to operate, and it can get high grade concentrate, middling and tailings. It is widely used for separation of tungsten, tin, tantalum, gold and other rare metal or noble metal. It is also used to separate iron ore, manganese ore and coal.
5.Specification of Small Gold Shaker Table Small Scale Production Plant
Name | Unit | Coarse ore Deck | Fine sand | Slime Deck | |
Deck Size | Length | mm | 4450 | 4450 | 4450 |
transmission end width | mm | 1855 | 1855 | 1855 | |
Concentrate end width | mm | 1546 | 1546 | 1546 | |
Maximum Feeding Size | mm | 2 | 0.5 | 0.15 | |
Feeding Amount | t/d | 30-60 | 10-20 | 15-25 | |
Feeding Density | % | 25-30 | 20-25 | 15-25 | |
Stroke | mm | 16-22 | 11-16 | 8-16 | |
Frequency | f | 45-48 | 18-53 | 50-57 | |
Water added | t/d | 80-150 | 30-60 | 10-17 | |
Transverse slope of Deck | ° | 2°30-4°30 | 1°30-3°30 | 1°-2° | |
Longitudinal slope of Deck | ° | 1.4 | 0.92 | ------ | |
Beneficiation Area | m2 | 7.6 | 7.6 | 7.6 | |
Cross-section Shape of Deck |
| rectangular | saw tooth | triangle | |
Motor Power | KW | 1.1 | 1.1 | 1.1 | |
Transmission Mechanism |
| Eccentric linka |
6.Detailed images of Small Gold Shaker Table Small Scale Production Plant
Deck of Small Gold Shaker Table Small Scale Production Plant
Small Gold Shaker Table Small Scale Production Plant

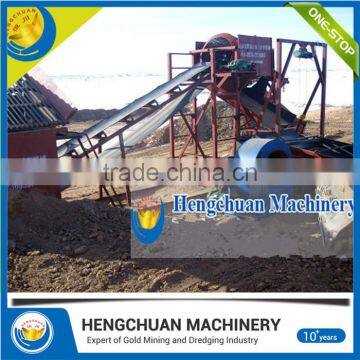

Work site of Small Gold Shaker Table Small Scale Production Plant
Small Gold Shaker Table Small Scale Production Plant
Packing:By container for Small Gold Shaker Table Small Scale Production Plant
Shipping: Qingdao port
1. Shandong Hengchuan company signs a long-time after-sale service agreement with customers.
2.Shandong Hengchuan company provides rational and practical design according to customers' request.
3. Shandong Hengchuan company sends experienced engineers to assemble and test the machine within the period as agreed in the contract.
4. Within warranty period, Shandong Hengchuan company provides free repair if quality problems emerge.
5. Shandong Hengchuan company provides free training of operation and maintenance for customers.
6. Shandong Hengchuan company supply high quality accessories in low price.
7. Shandong Hengchuan company make an excellent filing of customers for long-term following-up service. Any question or problem about the products can be answered via online support.
1.Our factory
Our main products:Gold Mining Machinery,Magnetic separators and all kinds of mining dredger etc.
2.Our customers
Our main market is domestic,Africa and Southeast Asia,such as Cameroon,Ghana,Mali,Zimbabwe,Malaysia,Indonesia and Philippines etc.
3.Certifications
In order to give you a responsible quotation, you can inform us the following information
1).Type of minerals to be mined?
2).Type of deposit (Primary/hard rock, or secondary/placer)?
3).Physical characteristics of the ore (sandy, with light clay or heavy clay)?
4).Intended feed capacity (Tons/hour)?
Company Profile
Qingzhou Hengchuan Ore Machinery Co.,ltd,was established in 2002,a leading ore machinery manufacturer in China,covering an area of 20000 square meters,have 6 engineers,20 technicians and 100 workers.
Our main products:Gold Mining Machinery,Magnetic separators and all kinds of mining dredger etc.Our main market is domestic,Africa and Southeast Asia,such as Cameroon,Ghana,Mali,Zimbabwe,Malaysia,Indonesia and Philippines etc.
Cutter suction dredger is widely used in dredging engineering.The rotating cutting head in the front of the suction pipe can stir slurry,then dredging pump suck the slurry through the suction pipe,then through the discharge pipe to the mud yards.Dredging, transportation and discharge is a whole series work.So the cutter suction dredger is an efficient and economic dredger.We start to manufacture the cutter suction dredger from 2005,gradually accumulated rich experience in this field.
Development History:
A).Established Magnet Research Institute in 2004,successfully developed the high gradient magnetic separator to 12000-22000GS.
B).Cooperated with Shandong Gold Group and doubled the sales scale.
C).Developed STL-120 gold centrifugal concentrator in 2008.
D).Mature dredger products in 2009.
E).Developed successfylly knelson smiliar type automatic discharge type gold centrifual concentrtor and produced them in large quantity for sellling.
F).Established Shandong Hengchuan International Trade Co.,Ltd in 2015.
Enterprise Spirit -eternal integrity
Enterprise Purpose-to consistently exceed customers' expectations
Core Values-innovation and leading the future
Service Concept- to create value for customers
Development Concept - Quality is life; innovation is the driving force
Corporate Vision- the world leading supplier of magnetic separation equipment
