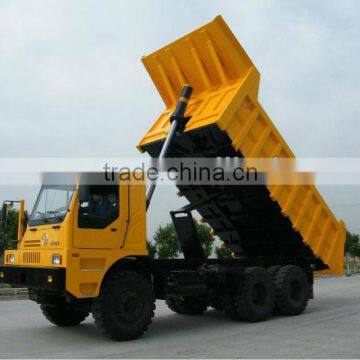

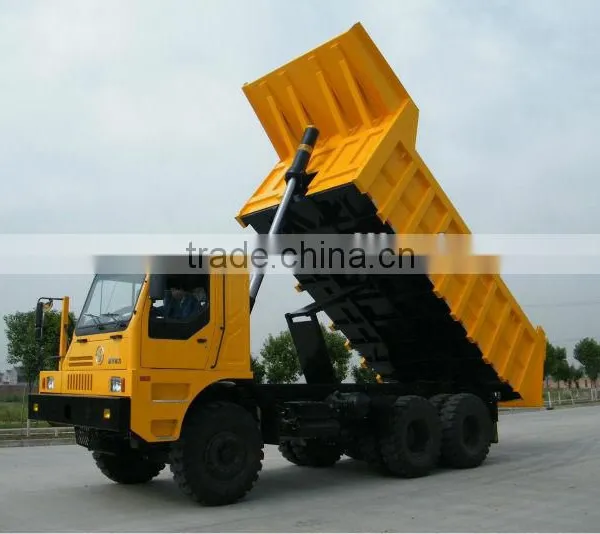

Thanksgiving Feedback Price 40t Heavy Mining Dump Truck

Name: Thanksgiving Feedback Price 40t Heavy Mining Dump Truck
Brand: Canmax
SKU: 141326426
Availability: InStock

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

US$ 70,000 - 80,000 MOQ: 1 Set

Key Specifications

Drive Wheel:

6x4

Capacity (Load):

41 - 50t

Horsepower:

451 - 500hp

Payment & Shipping

Payment Methods:

Port of Shipment:

Main ports in China

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 6x4

Capacity (Load) 41 - 50t

Horsepower 451 - 500hp

Condition New

Transmission Type Automatic

Emission Standard Euro 3

Fuel Type Diesel

Gross Vehicle Weight 35

Brand Name Canmax

Dimensions (L x W x H) (mm) 8852*4523*4556mm

More detailed information about this truck:

MAIN DESCRIPTION
Overall Dimension	8852×4523×4556 (LWH)
Payload	60ton			Dead Weight	34250kg
Front Overhang	1800mm			Rear Overhang	3295mm
Wheelbase	1800mm+3800mm
CHASSIS
Brand & Model	WD12.375
Axle& Driving Type	FAST, 3 axles, driving type 6x4
Cab	SD70, left or hand drive, air-conditioner,
Engine and Power	diesel engine, 430hp, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, Euro II emission standard
Traversing Mechanism			Allison 4500, turning system pressure 18MPa
Gear Box	HW28507T, 6 forward speeds and 1 reverse
Clutch	Model: φ430, Single-plate dry clutch
Tire	14.00-24, 13units including 1 spare tire
CARGO BODY
Inside Dimension		5800mm2800mm1500mm(LWH)
Hydraulic Jack		Front setting telescopic jack
Steel Sheet Thickness		Floor 16mm, front wall 10mm, side and back wall 8mm
Tailgate		One-piece tailgate with upper articulation, safety lock system
