Specifications
25T 2 Axles Low Bed Semi Trailer1.Tare Weight 9,500kg
2.Payload :25,000kg
3.G.V.W.R.:34,500kg

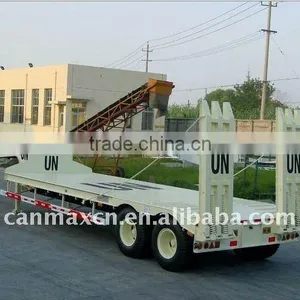

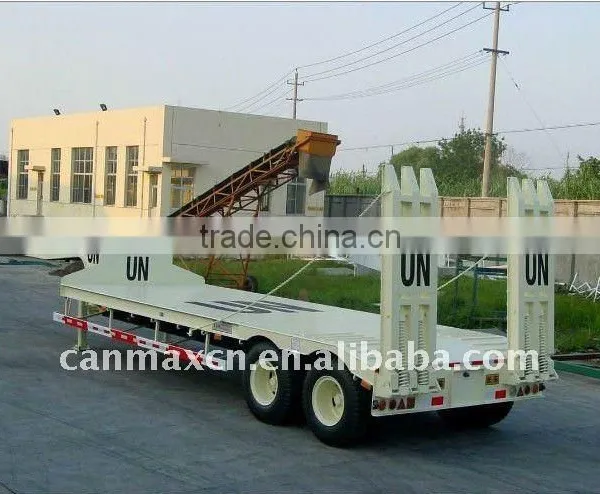

25T 2 Axles Low Bed Semi Trailer
STRUCTURAL WEIGHT RATTING (estimated):
Tare Weight : 9,500kg (approximation)
Payload : 25,000kg
G.V.W.R.: 34,500kg (approximation)
King Pin Weight : 10,500kg (approximation)
Axle Weight: 24,000 kg (approximation)
RUNNING GEAR & FRAME:
Suspension: Undermount double axle suspension with equalizers,7-leaf spring, 26,000kg capacity.
Axle: FUWA 150×150 square Axle. 13T capacity/set.
Wheel: 6.5-20, 8 pcs made in china.
Tire: 8.25R20, 8 pcs made in china.
King Pin: 2″, bolted type.
Loading ramps: 2 Pcs. 720mm width. Ramps are spring loaded and manually operated with safety chain.
AIR SYSTEM:
Brake: Dual line pneumatic brake system. WABCO brake valve. With ABS.
Brake chamber: Type 30/30 spring brake chamber on the 1st axle, type 30 brake chamber on the 2nd axle made in china.
ELECTRICAL:
Voltage: 24 Volt.
Receptacle: 7 way
Light :
Front marker lamp: White
Side marker lamp: Amber
Rear lamp: Red
Turn signal lamp: Amber
LANDING LEG:
Leg: Two speed manual operation type with sand shoe; right handle.
Model: TSU.
Rated Capacity: Static: 80 tons. Lifting: 25 tons.
PAINTING & MARKING:
Color: Comply with the customer’s request.
Marking: Comply with the customer’s request.
ELSE:
Side guard: One set (L/R)
Spare tire carrier: One (On gooseneck)
The maximum of pay load is 25,000kg.
All the details are not mentioned above should comply with Chinese standards.
We can design and produce semi-trainers according to customer's need. These products are according to domestic conventional configuration of China. But we can meet your special system. We have consummate after-sales service network. Best comparability of performance and price has wined more and more customers.
We have consummate service network. Best comparability of performance and price has wined more and more customers.
