Help Center150ton Crane
Related Products
Specifications
1. Six axles, five steering, three for driving;2. Volvo engine;
3.ZF trasmission.
Specifications

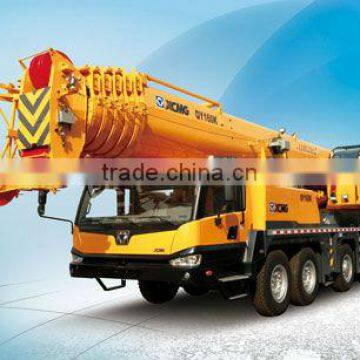

QY160K is the truck crane with the largest tonnage in the world. The boom length and lifting capacity is a great breakthrough in the 6-axle truck crane. The full extension length of the boom is 62m, and can be equipped with 28m vice boom. The maximum counterweight is 50t. The outrigger span is 7.8×8.0m, which can realize 360°full turn with the same lifting capacity, featuring large working scope and strong lifting capacity. The maximum travel speed is 80km/h, and the maximum grade ability is 40%, having excellent travel performance. |
Dimension |
Unit |
QY160K |
Overall length |
mm |
|
Overall width |
mm |
|
Overall height |
mm |
|
Weight |
||
Total weight in travel |
kg |
54900 |
Front axle load |
kg |
|
Rear axle load |
kg |
|
Power |
||
Engine model |
OM460LA.E3A/1 |
|
Engine rated power |
kW/(r/min) |
360/1800 |
Engine rated torque |
N.m/(r/min) |
|
Travel |
||
Max. travel speed |
km/h |
80 |
Min. turning diameter |
m |
26 |
Min. ground clearance |
mm |
300 |
Approach angle |
° |
20 |
Departure angle |
° |
14 |
Max. grade ability |
% |
40 |
Fuel consumption for 100km |
L |
75 |
Main performance |
||
Max. rated total lifting capacity |
t |
160 |
Min. rated working radius |
mm |
|
Turning radius at turntable tail |
m |
|
Max. lifting torque |
kN.m |
5253 |
Base boom |
m |
|
Fully extended boom |
m |
61.4 |
Fully extended boom+ jib |
m |
88.6 |
Longitudinal outrigger span |
m |
7.8 |
Lateral outrigger span |
m |
8 |
Working speed |
||
Boom luffing time |
s |
|
Boom full extension time |
s |
|
Max. swing speed |
r/min |
1.8 |
Max. speed of main winch (single rope) (no load) |
m/min |
110 |
Max. speed of aux. winch (single rope) (no load) |
m/min |
