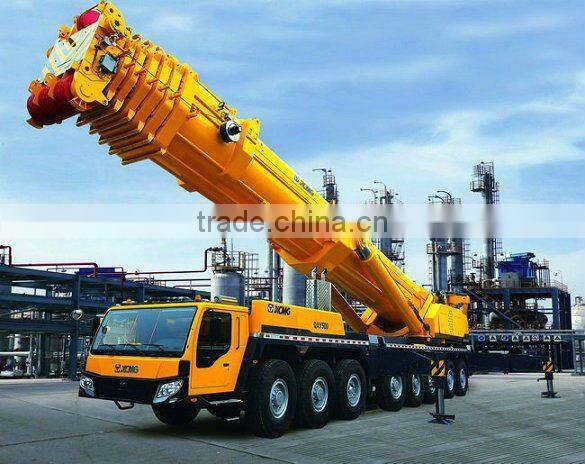

World Famous 110 Ton Mobile Crane

Name: World Famous 110 Ton Mobile Crane
Brand: XCMG
SKU: 141324904
Availability: InStock

US$ 740,000 - 850,000 MOQ: 1 Set

Key Specifications

Condition:

New

Rated Loading Capacity:

110Ton

Rated Lifting Moment:

2200 KN.m

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Rated Loading Capacity 110Ton

Rated Lifting Moment 2200 KN.m

Max. Lifting Load 110Ton

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number QY110K

Specifications

Dimension	Unit	QY110K
Overall length	mm	14800/15270
Overall width	mm	3000
Overall height	mm	3920
Weight
Total weight in travel	kg	54900/58000
Front axle load (axle 1, 2, 3)	kg	7500/7500/8300(9000)
Rear axle load (axle 4, 5)	kg	12000(13000)12000(13000)/7600(8000)
Power
Engine model		OM906LA/OM460LA
Engine rated power	kW/(r/min)	162/2100 360/1800
Engine rated torque	N.m/(r/min)	1054/1500 2200/1300
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	24
Min. ground clearance	mm	300
Approach angle	°	20
Departure angle	°	14
Max. grade ability	%	40
Fuel consumption for 100km	L	75
Main performance
Max. rated total lifting capacity	t	110
Min. rated working radius	m	3
Turning radius at turntable tail	m	4.51
Max. lifting torque	kN.m	4233
Base boom	m	12.8
Fully extended boom	m	58
Fully extended boom+ jib	m	76.1
Longitudinal outrigger span	m	7.56
Lateral outrigger span	m	7.6(5.2)
Working speed
Boom luffing time	s	60
Boom full extension time	s	600
Max. swing speed	r/min	1.9
Max. speed of main winch (single rope) (no load)	m/min	≥105
Max. speed of aux. winch (single rope) (no load)	m/min	≥105
